Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard

The surface-mounted repeater RP-NA16-AP is an extension for the mains isolator NA 16-1P radio and is screwed directly onto the installation box (or junction box or standard device box).

As a level 2 repeater, this increases the range of the demand switch. Or significantly improves an impaired reception.

master switch series

Function based on a radio signal encoded according to the EnOcean standard that is harmless to building biology and is only transmitted when the transmitter in the remote control is actuated.

Delivery time: approx. 1-3 business days

In stock (can be backordered)

Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard
Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard

 75,10

SFERICS® quality verified

 75,10

MASTER SWITCH SERIES

MASTER SWITCH SERIES

Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard

The RP-NA16-AP repeater belongs to the level 2 performance class. It is mounted on the installation box with the aim of increasing the range of the demand switch NA 16-1P radio. Or to significantly improve a possibly impaired reception.

Level 2 repeaters are used when the range of the demand switch NA 16-1P radio becomes an obstacle. With this surface-mounted repeater, the transmission range of the telegrams can be extended considerably in a convenient way. It also significantly improves any disturbed reception. The incoming control telegrams are processed and forwarded.

The repeater works on the basis of a radio signal encoded according to the EnOcean standard, which is only forwarded when the transmitter in the remote control is activated. Furthermore, the repeater does not have to be taught-in or configured. It forwards the signals automatically after connection to the operating voltage.

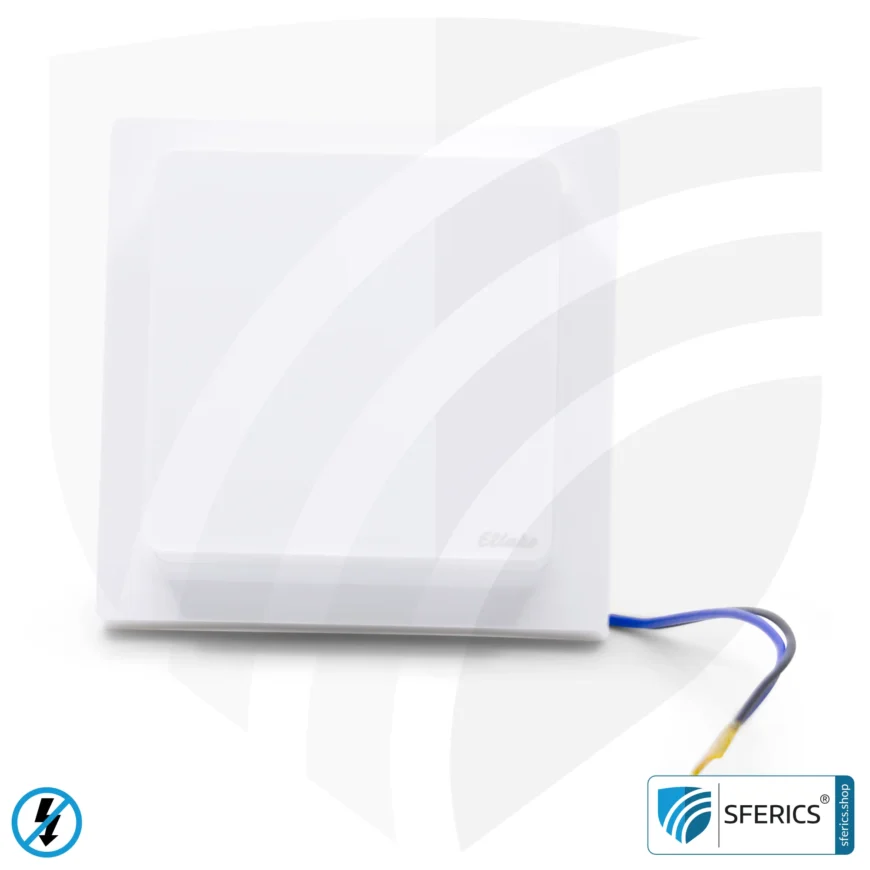

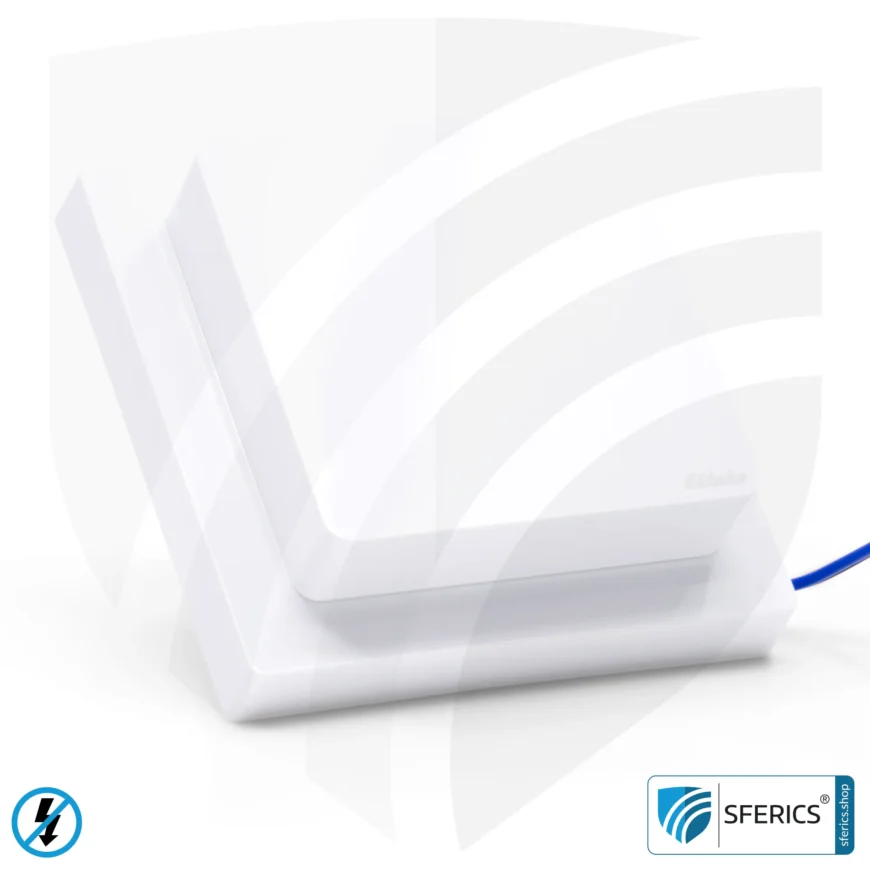

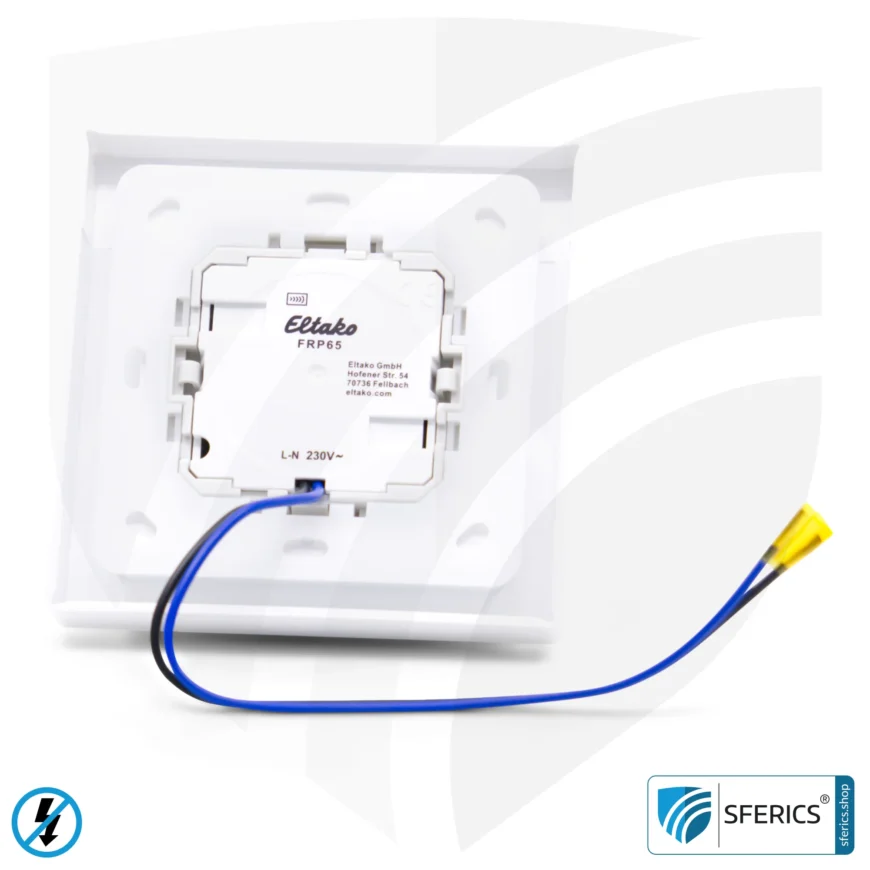

This repeater is fixed to a 55 mm installation box (or junction box or standard device box) by means of screws. The design of the housing is pure white glossy and fits seamlessly into any room.

Alternating electric fields LF radiation Symbol image

Meaning of the levels explained

A maximum of two repeaters can be used as extensions for the operation of the mains disconnection switch NA 16-1P radio. The level indicates the performance class in relation to the telegrams (data packets).

  • LEVEL 1: Receives only telegrams from transmitters (TX-NA16-HAND, TX-NA16-WAND remote control).
  • LEVEL 2: Receives, in addition to the telegrams specified in level 1, also those of a level 1 repeater.

Two methods for installing the RP-NA16-AP

Installation with a repeater

  • At the beginning: Mains isolator NA 16-1P radio in the control cabinet
  • At the end: Level 1 or Level 2 repeater (RP-NA16-UP, RP-16-AP or RP-NA16-KA) plus transmitter (remote control)

Installation with two repeaters

  • Start: Mains isolator NA 16-1P radio in the control cabinet
  • Middle as bridge: Level 2 repeater (RP-NA16-UP, RP-16-AP or RP-NA16-KA)
  • At the end: Level 1 repeater (RP-NA16-UP) plus transmitter (remote control)

We strongly recommend downloading and studying the “Range Overview” guide.

Convincing performance of the RP-NA16-AP surface-mounted repeater at a glance

  • Level 2 surface-mounted repeater for expansion of the mains isolation switch NA 16-1P Radio
  • Building-biological radio technology according to EnOcean standard
  • Very robust
  • 1 year warranty

MASTER SWITCH SERIES

Overview of the range and parts of our master switch series

NEW
NEW

Documentation (.pdf)

Technical data Range overview
Weight 0,2 kg
Dimensions 9 × 1,7 × 6 cm
Scope of delivery

installation instructions, repeater

Color

white

Brand

Country of origin

Germany

GTIN

4010312315927

.

TECHNICAL DETAILS PROTECTION REPEATER RP-NA16-AP
Colour white glossy
Length 84 mm
Width 84 mm
Height 30 mm
Weight 80 gram
Operating temperature -20 – 50°C
Radio technology / control frequency EnOcean 868 MHz
Power supply 230 VAC / Standby: 0.8 Watt
Function Level 2
Scope of delivery 1. repeater RP-NA16-AP
2. assembly instructions
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
