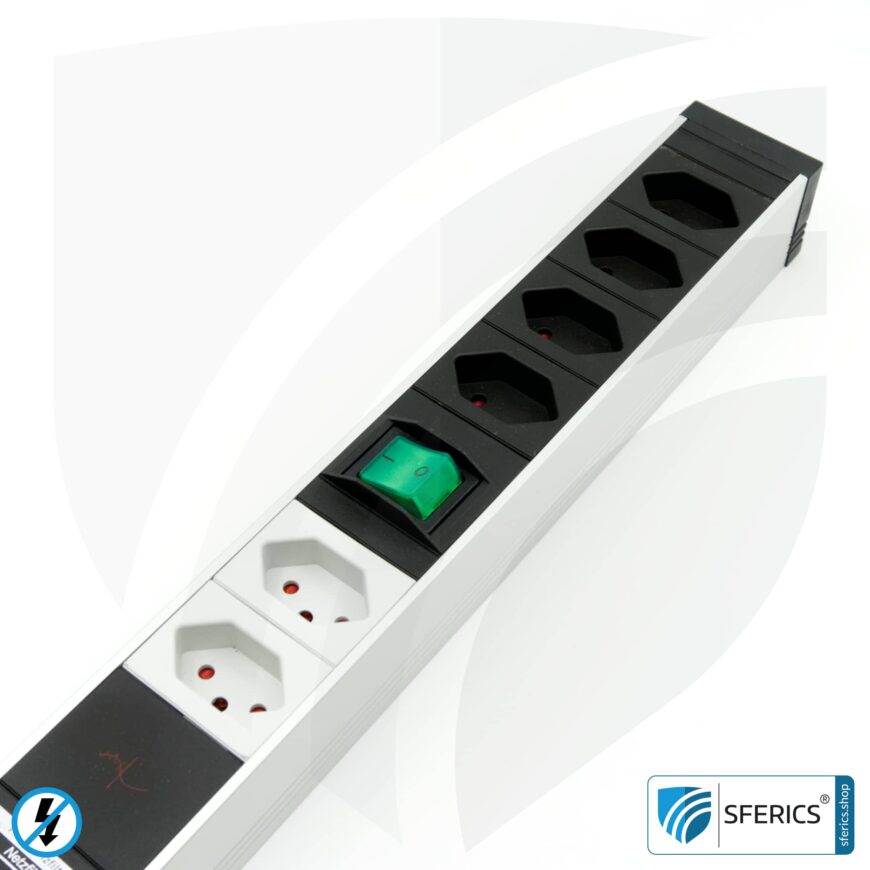

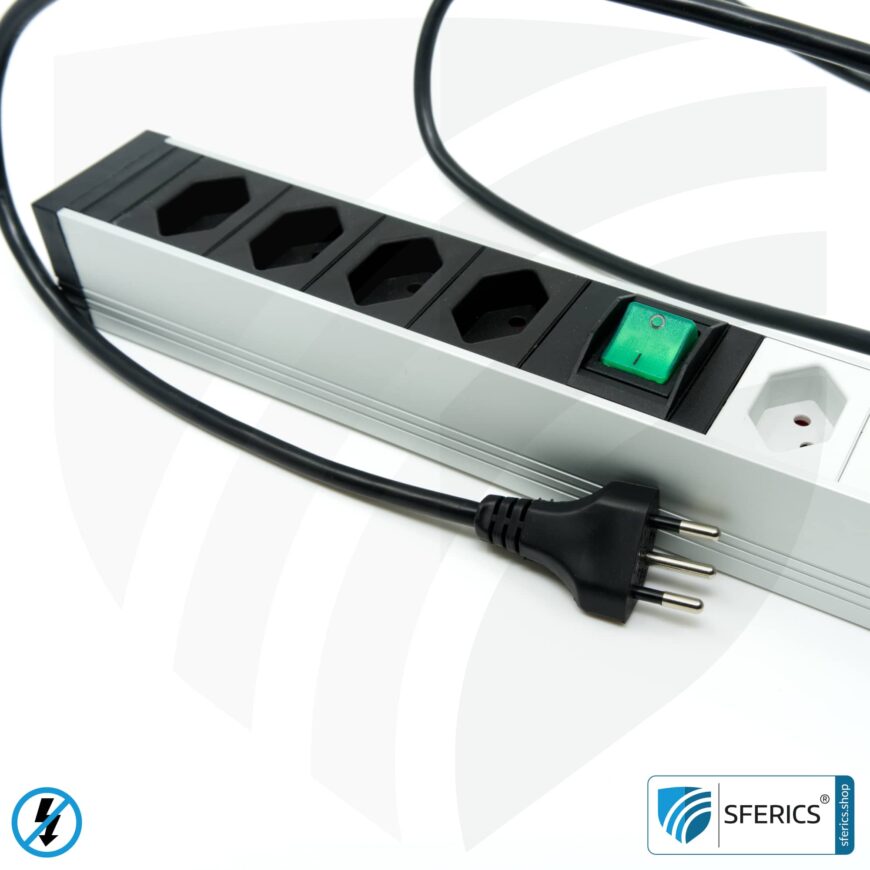

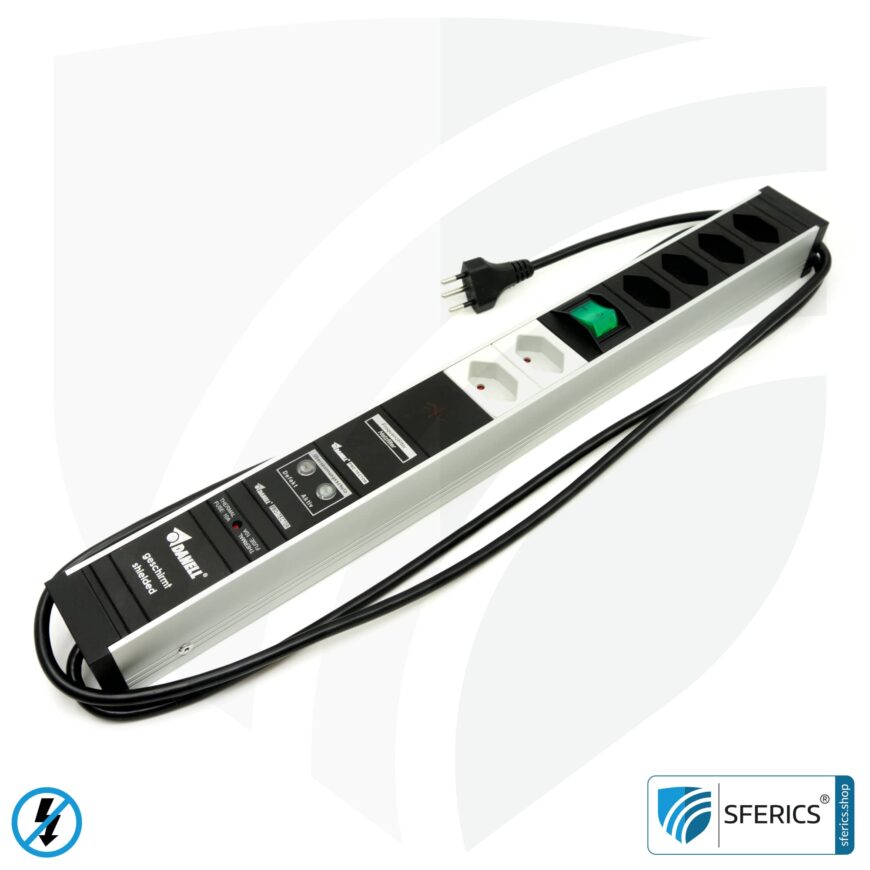

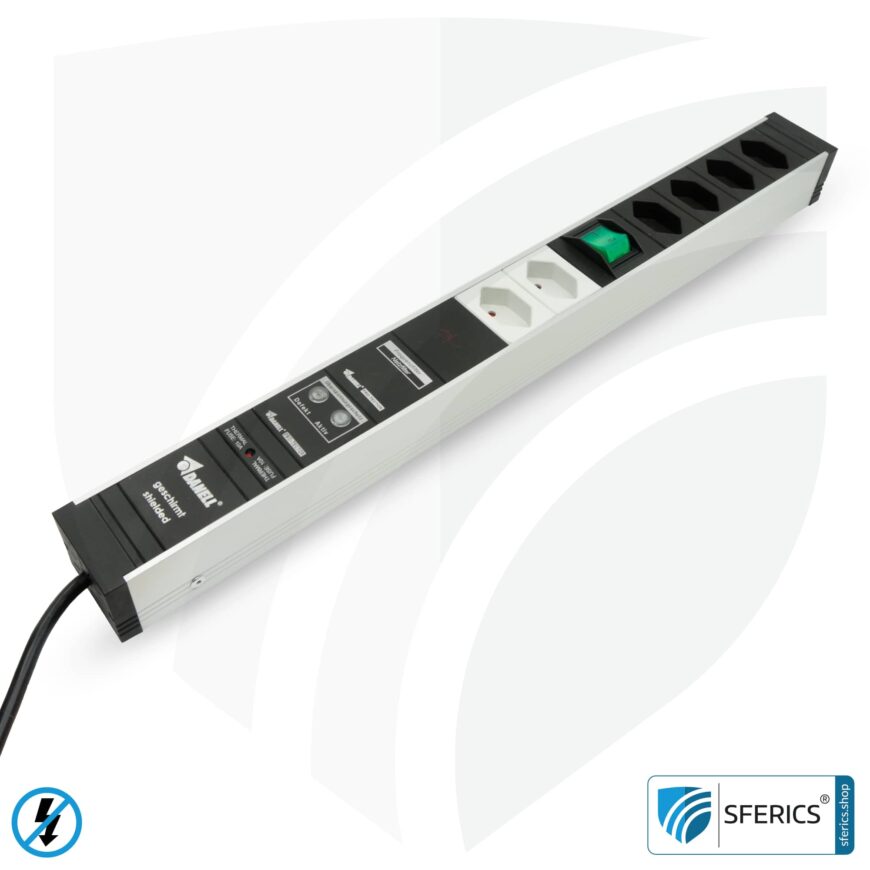

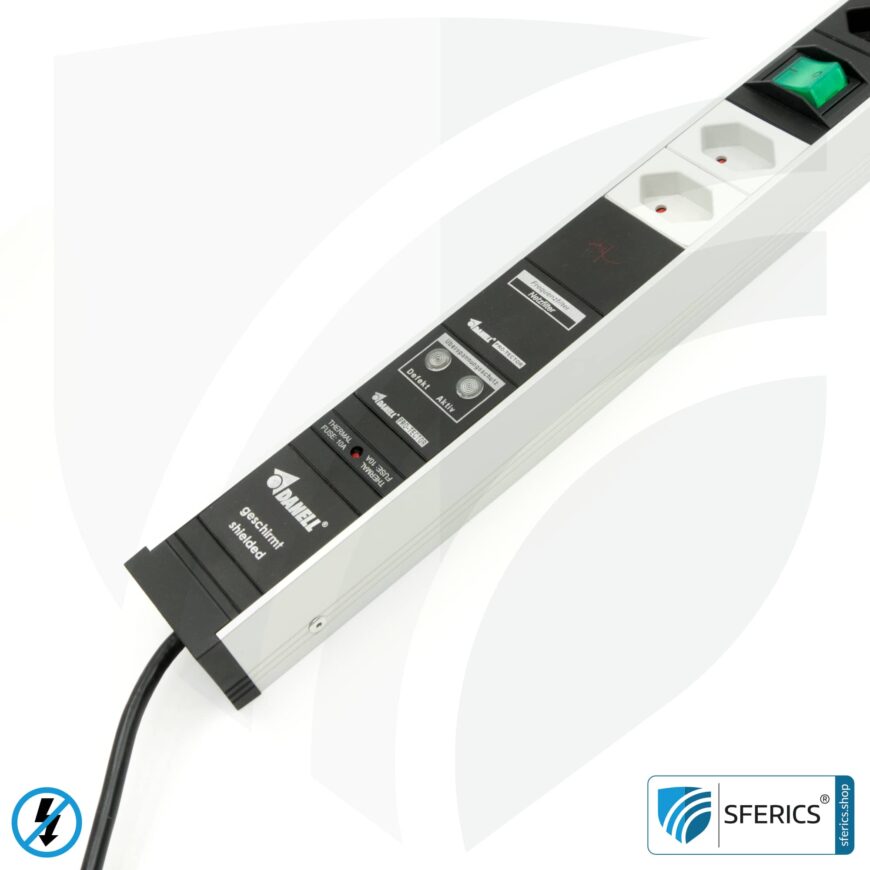

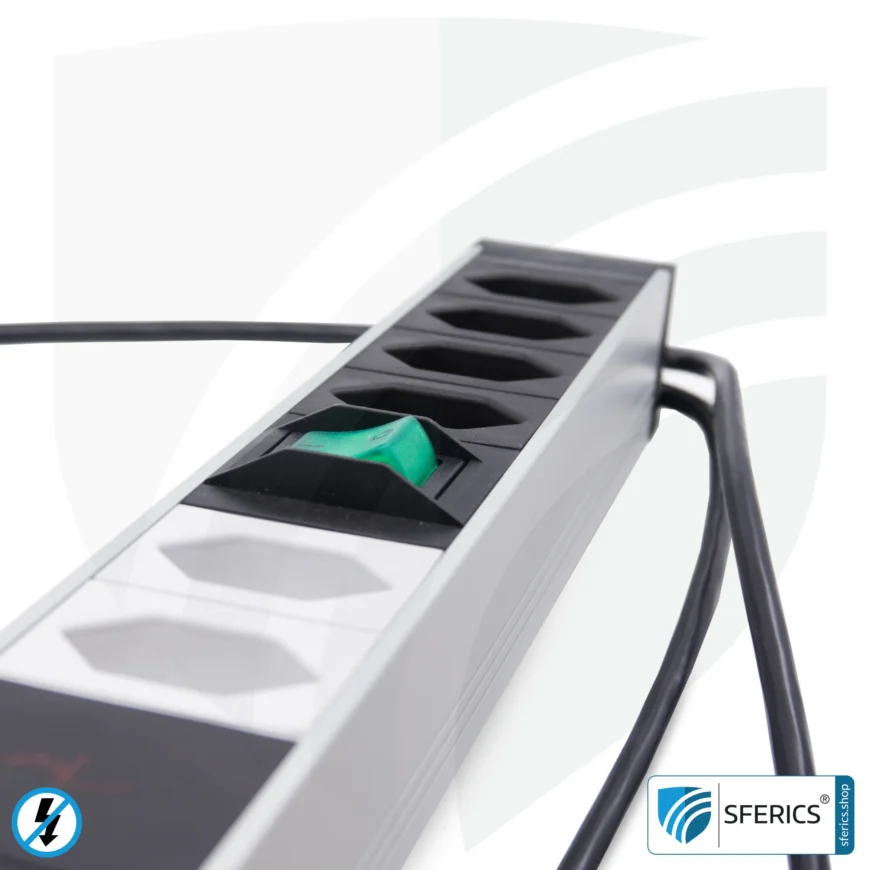

PC socket strip 6-way (4+2), shielded LF | with on/off switch, overvoltage protection and full protection HF filter system up to 80 MHz | type J (Switzerland /LI)

Shielded socket strip against electric fields LF. With 4 switched type J inserts with two-pole disconnection and 2 unswitched inserts for continuous current consumption. Additional on/off switch on the power strip and with powerful surge protection on all socket inserts.

Special feature: HF filter with a shielding range of up to 80 MHz and an attenuation of 50 dBm. Thus effective for loads caused by PLC / DLAN / Powerline frequencies.

Alu-black. Very high quality.
For usage in Switzerland and Liechtenstein.

Delivery time: approx. 1-3 working days

In stock

PC socket strip 6-way (4+2), shielded LF | with on/off switch, overvoltage protection and full protection HF filter system up to 80 MHz | Type J (Switzerland /LI)
PC socket strip 6-way (4+2), shielded LF | with on/off switch, overvoltage protection and full protection HF filter system up to 80 MHz | type J (Switzerland /LI)

 132,00

SFERICS® field-tested and recommended

 132,00

PC socket strip 6-way (4+2), shielded LF | with on/off switch, overvoltage protection and full protection HF filter system up to 80 MHz | Type J (Switzerland /LI)

Socket strip with 4+2 Schuko inserts, overvoltage protection, HF filter system, shielded NF with on/off switch

4 type J inserts switched with two-pole disconnection and 2 inserts unswitched for continuous current consumption. High shielding against alternating electric field at mains voltage. Excellent earthing cabling within the socket strip. The exciting PLUS of this 6-way PC power strip, however, is the PRO-TECTOR surge protection distributed over all the Schuko inserts and the powerful full-protection RF filter system with 50 dBm and an effective range of up to 80 MHz.

Particularly in terms of workmanship, this socket strip stands out from the crowd and leaves its commercial competitors far behind. As this power strip is also assembled by hand, the purchase price is higher, but this guarantees the highest consistent quality and long-term use, regardless of whether it is for private or commercial use.

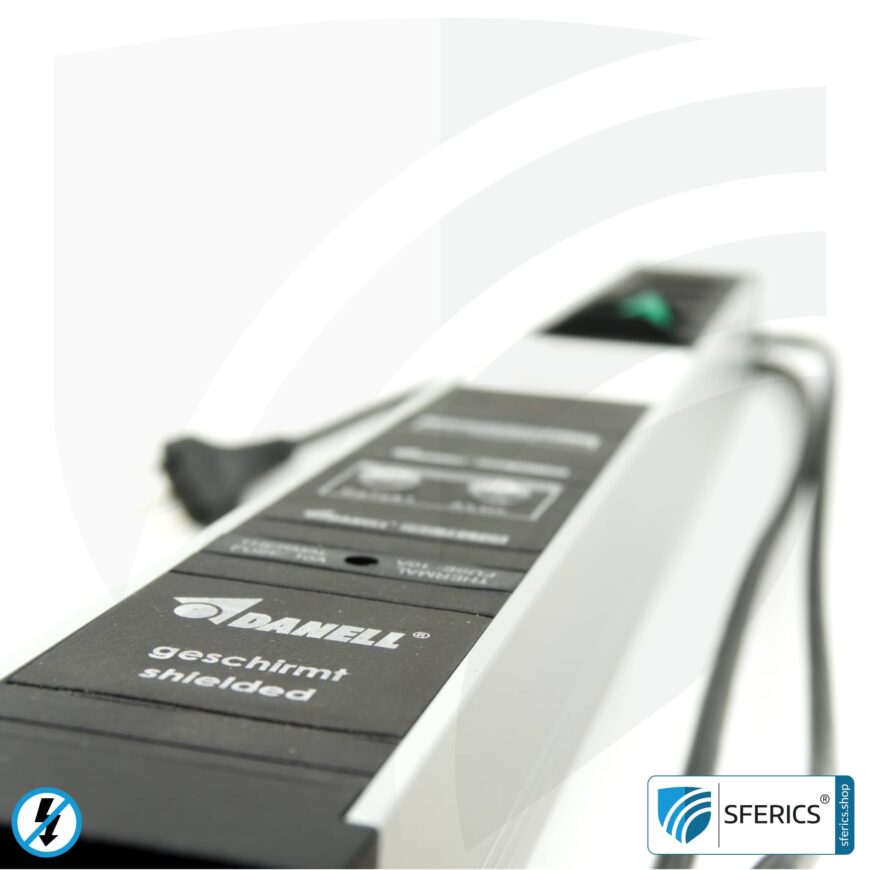

Details of the shielded 6-socket (4+2) full protection filter PC power strip type J by DANELL

  • Case: Robust, anodized aluminum profile.
  • Bipolar switch with protective frame against unwanted pressing.
  • Black socket inserts, black and gray, incl. child protection.
  • Shielded power supply cable: 2 meters, 3 x 1.5 mm².
  • Overvoltage protection: PRO-TECTOR (all plug sockets).
  • Full protection filter system: line filter with an attenuation of 50 dB; HF filter up to 80 MHz (also filters PLC frequencies / Powerline / Internet from the socket)
  • Supply voltage: 250 V / 50 Hz.
  • Power load: 16 A according to swiss norm SEV 1011:2009
  • Measurements: 520 x 53 x 44 mm, without cable.

Efficiency and attenuation curve according to frequency of the integrated HF mains filter

The powerline filter effectively attenuates high-frequency powerline signals (PLC / DLAN) between 2 and 80 MHz in the grounding cable.
Alternating electric fields LF radiation Symbol image

This shielded 6-socket (4+2) PC power strip is usable in the following countries

Switzerland, Liechtenstein, Jordan, Madagascar, Maldives, Rwanda

Documentation (.pdf)

Download data sheet Download supplementary sheet Download data sheet surge protection and filter
Weight 1,1 kg
Dimensions 52 × 5,3 × 4,4 cm
Scope of delivery

Power strip, manual

Brand

GTIN

4260004783347

Country of origin

Germany

TARIC

85369085

.

Opening unit Pc. (piece)
Colour silver (anodised aluminium profile) /black
Cable colour black
Switch colour green / illuminated
length 572 mm
Width 52 mm
Height 45 mm
Requirement class Class D
Operating voltage 230 VAC
Load Operating voltage max. 250VAC / 50Hz – 10A according to IEC 884
Response time <25 ns
Optical display green -> protection OK
yellow -> protection defective
Test basis single, 100%, CE, TCO’99 (MPR II, DIN prEN 50279)
Screen attenuation max. in dB (earth-dependent)
Screen attenuation max. in dB > 99 % (earth-dependent)
Processing Very high-quality and sturdily designed shielded socket strip.
Rated voltage 300 VAC
Plug inserts 6 x incl. child safety lock (4 inserts can be switched off, 2 inserts unswitched – continuous voltage)
Decoupling filter integrated – prevents coupling of alternating electric fields onto two-pole Euro mains cables
Cable insulation Polyvinyl chloride plastic-coated aluminium tape, two-wire Cu 1.0 mm²
Cable length 2 metres – (±10%)
Control switch Four socket inserts (black) 2-pole (L1+N) can be switched off, 2 socket inserts unswitched
Nominal leakage current 6500 A
Cross-section 3 x 1.5 mm² (shielded)
Protection class 1 (with protective earth yellow/green)
Protection level <1000 V at 6500 A (8/20 µs)
Overvoltage protection PRO-TECTOR (All socket outlets)
Certification Class D / ÖVE Sn60, Class E
Important information The socket strip can be used directly without prior electrical engineering training and without an electrician.
Application 1. bedrooms and children’s rooms
2. living rooms
3. offices / PC workstations
4. guest rooms
Scope of delivery 1. power strip (STL6PC) incl. cable
Other notes 1. The surge protector provides protection for all connected devices. 2. the decoupling filter prevents the coupling of alternating electric fields onto two-pole Euro mains cables 3. the angled inserts also allow the plugging in of e.g. plug-in power supply units and similar. 4. the child safety lock reliably prevents the insertion of foreign bodies thus this power strip is also ideally suited for children’s rooms.
Warranty The warranty for this product when properly handled is the usual 2 years (§434 BGB + §446 BGB)
