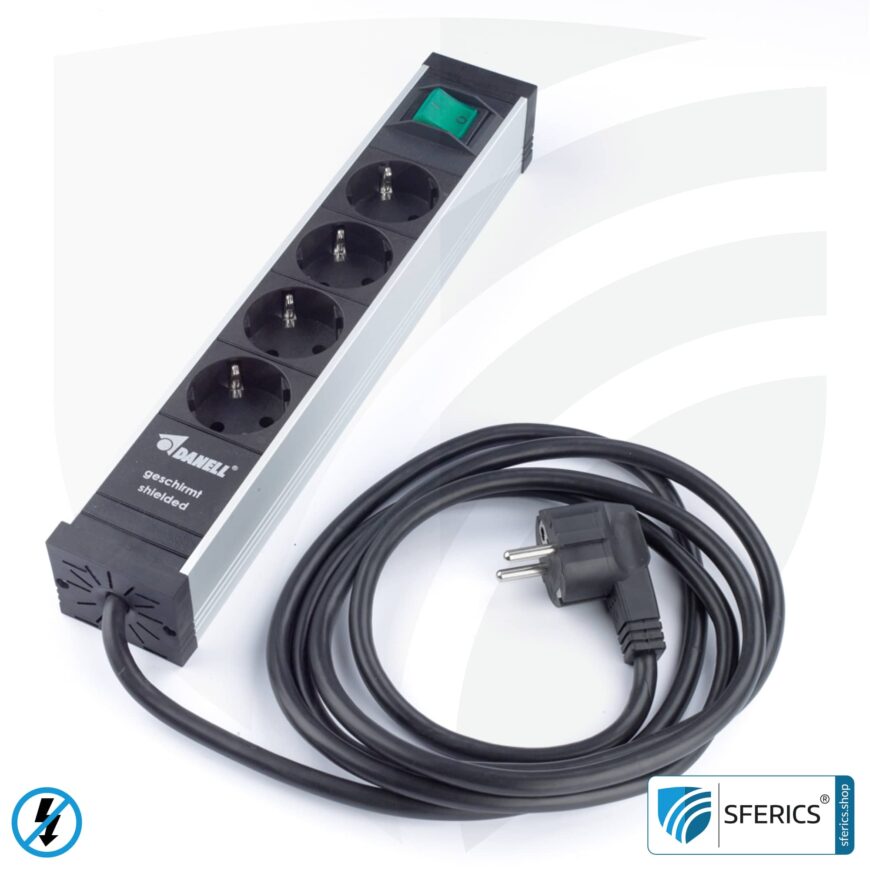

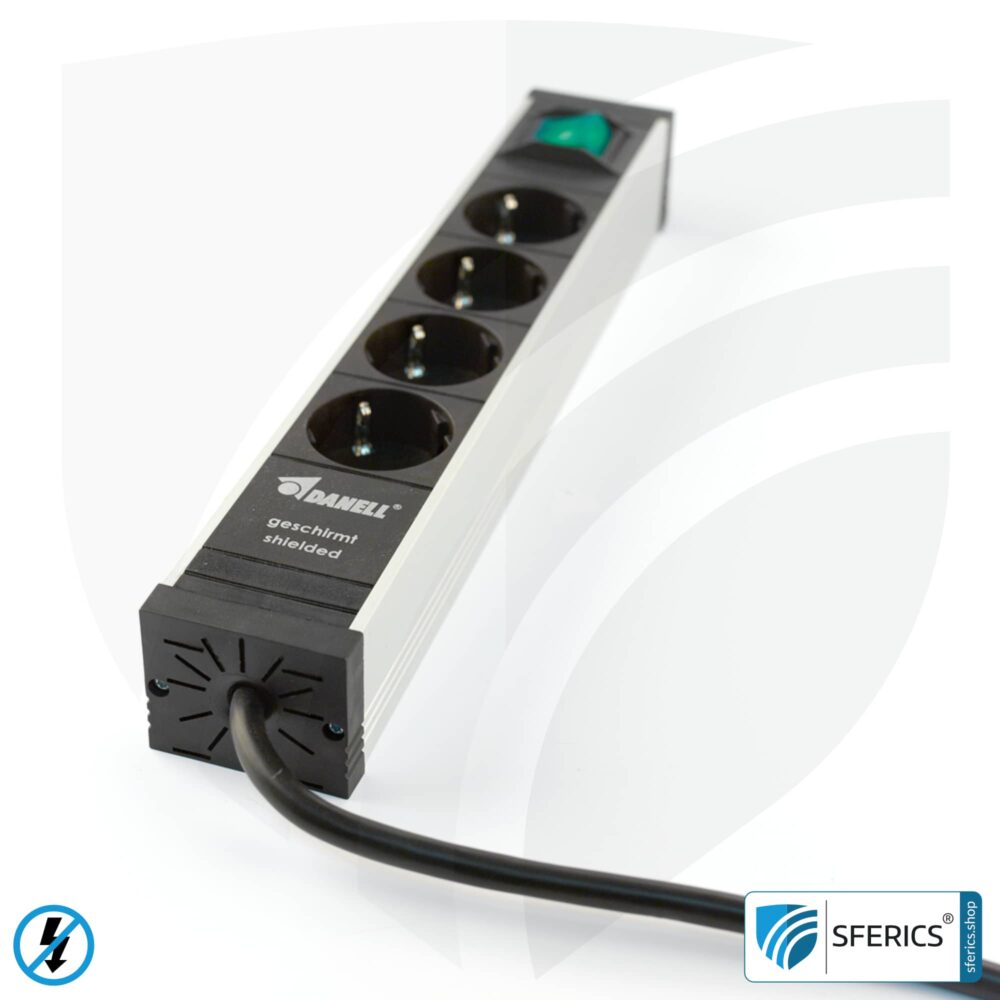

Socket strip 4-way, shielded LF | with on/off switch | type EF (Schuko)

Shielded socket strip against LF electric fields. 4 Schuko inserts switched with two-pole disconnection. Additional on/off switch on the power strip.

Alu-black. Very high quality.

Delivery time: approx. 1-3 working days

In stock

Socket strip 4-fold, shielded LF | with on/off switch | type EF (Schuko)
Socket strip 4-way, shielded LF | with on/off switch | type EF (Schuko)

 64,50

SFERICS® field-tested and recommended

 64,50

SKU: 41-6700-WD Categories: , Tags: , , , ,

Socket strip 4-fold, shielded LF | with on/off switch | type EF (Schuko)

Socket strip with 4 Schuko inserts, shielded NF with on/off switch

4 very high-quality Schuko inserts, switched with two-pole disconnection. High shielding against alternating electric field at mains voltage. Excellent earthing cabling within the socket strip.

Particularly in terms of workmanship, this socket strip stands out from the crowd and leaves its commercial competitors far behind. As this power strip is also assembled by hand, the purchase price is higher, but this guarantees the highest consistent quality and long-term use, regardless of whether it is for private or commercial use.

Details of the shielded 4-way socket strip from DANELL

  • Casing: Robust anodized aluminium frame
  • 2-poled switch
  • Socket outlets black, 45° positioned with children protection
  • Shielded power connection cord: 2 meter, 3 x 1.0 mm²
  • Integrated decoupling filter
  • Connection voltage: 250 V / 50 Hz
  • Current load: 10 A
  • Size: 317 x 52 x 45 mm
Alternating electric fields LF radiation Symbol image

This shielded 4-socket power strip is usable in the following countries

CEE-7/4 (German system) and CEE-7/7 (French system): Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Italy, Korea, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Turkey, Ukraine

Documentation(.pdf)

Download data sheet Download supplementary sheet
Weight 1 kg
Dimensions 31,7 × 5,2 × 4,5 cm
Scope of delivery

Power strip, manual

Brand

GTIN

4260004786706

Country of origin

Germany

Opening unit Pc. (piece)
Colour silver (anodised aluminium profile) /black
Cable colour black
Switch colour green / illuminated
length 317 mm
Width 52 mm
Height 45 mm
Operating voltage 230 VAC
Load Operating voltage max. 250VAC / 50Hz – 10A according to IEC 884
Test basis single, 100%, CE, TCO’99 (MPR II, DIN prEN 50279)
Screen attenuation max. in dB (earth-dependent)
Screen attenuation max. in dB > 99 % (earth-dependent)
Processing Very high quality and sturdily designed shielded socket strip.
Plug inserts 4 x 45° oblique recessed, incl. child-proof lock
Decoupling filter integrated – prevents coupling of alternating electric fields onto two-pole Euro mains cables
Cable insulation Polyvinyl chloride plastic-coated aluminium tape, two-wire Cu 1.0 mm²
Cable length 2 metres – (±10%)
Control switch All four socket inserts 2-pole (L1+N) can be switched off
Cross-section 3 x 1.5 mm² (shielded)
Protection class 1 (with protective ground yellow/green)
Certification Class D / ÖVE Sn60, Class E
Important information The socket strip can be used directly without prior electrical engineering training and without an electrician.
Application 1. bedrooms and children’s rooms
2. living rooms
3. offices / PC workstations
4. guest rooms
Scope of delivery 1. socket strip incl. cable
Other notes 1. The power strip differs from conventional strips in many respects. For example, the switch is not located directly above the cable entry, as is the case with conventional socket strips, but opposite it. The STL4 socket strip can therefore be operated from the front and the connection cable disappears behind e.g. cabinets, desks etc.
2 The decoupling filter prevents the coupling of alternating electric fields to two-pole Euro mains cables.
3. the angled inserts also allow plugging in of e.g. mains adapters and the like.
4. the child safety lock reliably prevents the insertion of foreign bodies thus this power strip is also ideally suited for children’s rooms.
Warranty The warranty for this product when properly handled is the usual 2 years (§434 BGB + §446 BGB)

Customer questions and answers

Does the outlet also protect the ground (in case there is PLC on the line) so I can connect a ground plug for canopy etc. here? Ella asked on August 15, 2022

The grounding connection of the power strip is high-quality and therefore ideal for grounding a canopy. Since no HF filter is integrated, this socket strip cannot filter a signal modulated onto the electric cable (damping). This also applies to the protective conductor (earth conductor) of the electric cable.

Dietmar answered on August 15, 2022 store manager
