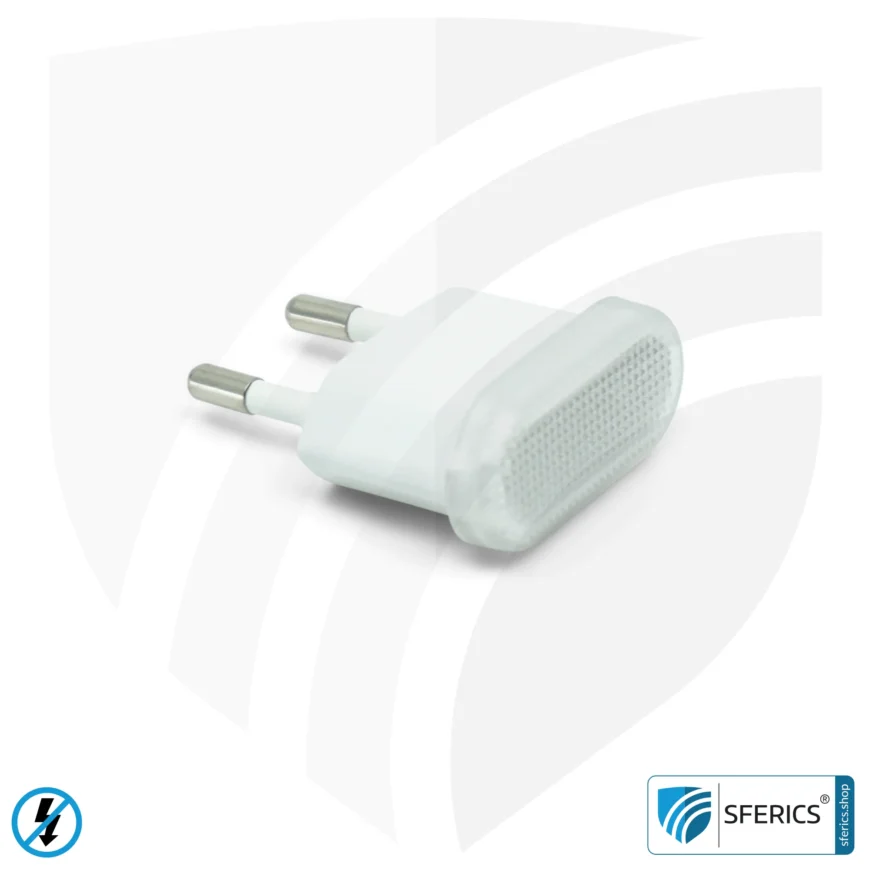

LED control lamp | simple control of the circuit shutdown using the demand switch or master switch

This LED control lamp is used to control and monitor the function in a monitored circuit by our series of demand switches.

Installation is possible by simply plugging it into any Schuko socket.

Delivery time: approx. 1-3 working days

In stock

SFERICS® field-tested and recommended

€ 11,90 (€ 9,92 excl. VAT)

SKU: KO-L-NA Category: Tags: , , ,

LED control lamp | simple control of the circuit shutdown using the demand switch or master switch

LED lamp for easy control of the circuit shutdown using the demand switch or master switch

​This LED control lamp is used to control and monitor the function in a monitored circuit by our series of demand switches. Installation is possible by simply plugging it into any Schuko socket.

  • Control lamp for monitoring the mains disconnection switch function.

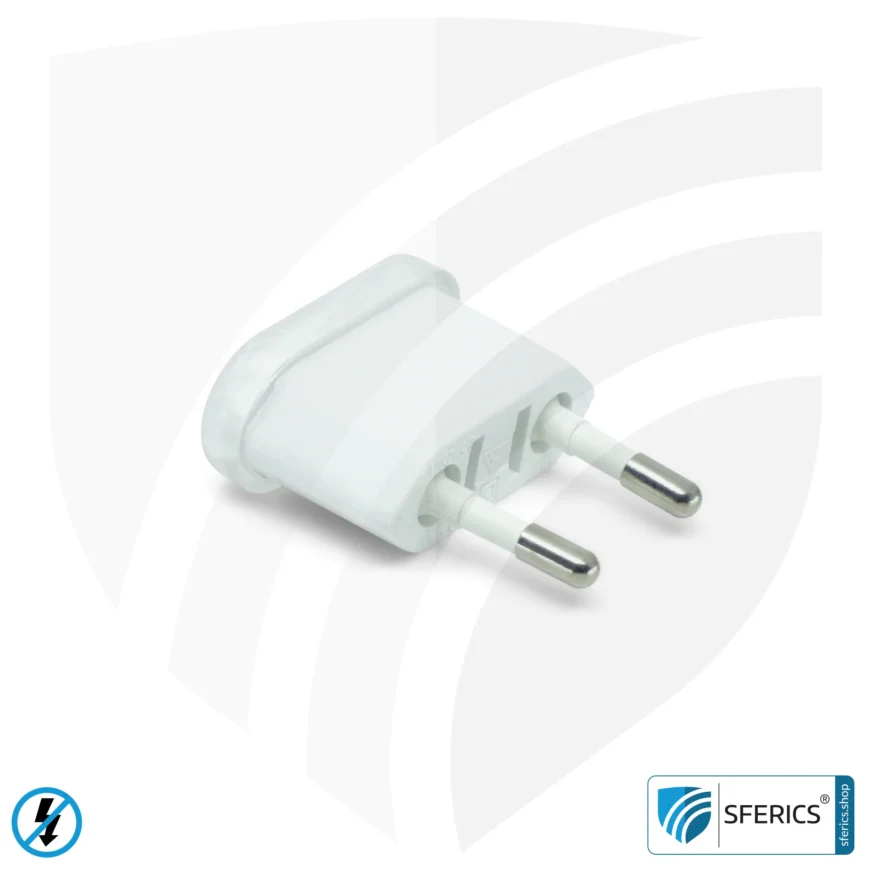

  • Simple installation by plugging into conventional shock-proof sockets in the monitored circuit.

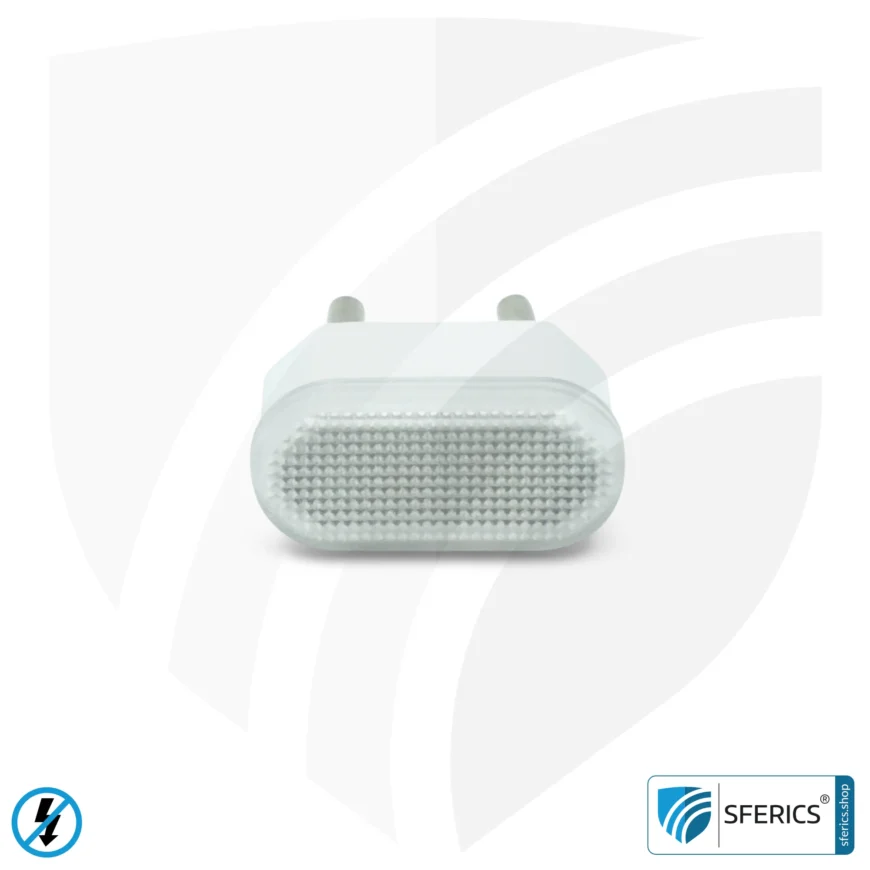

  • Flat design

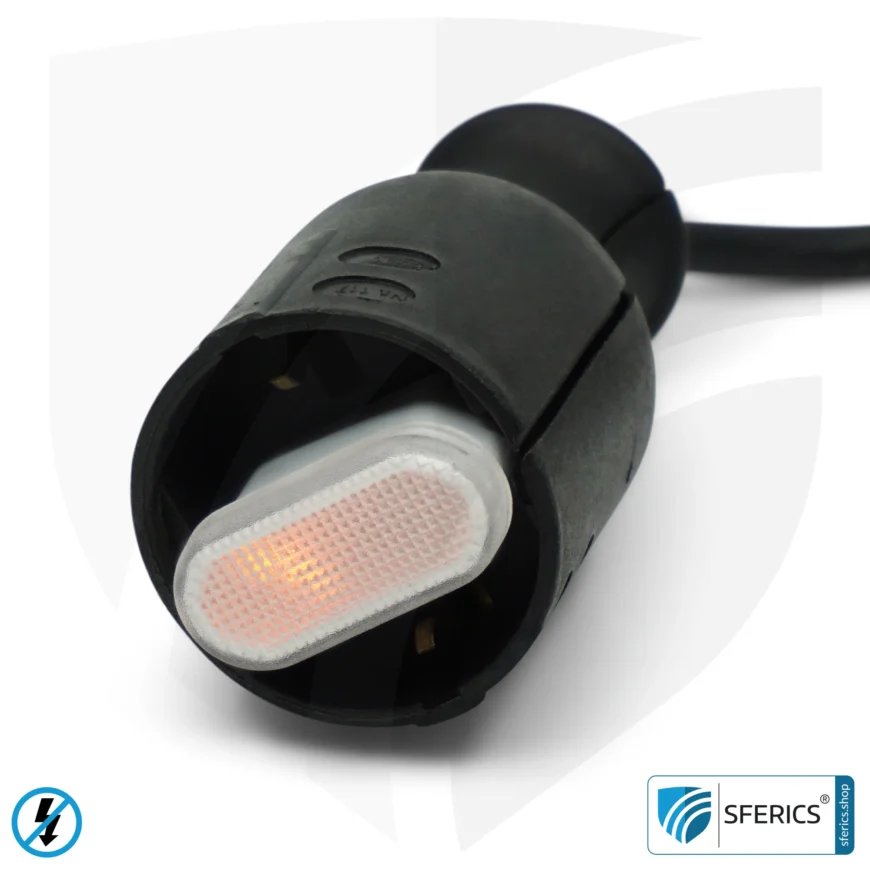

The LED control lamp indicates the respective switching status of the demand switch by illuminating orange/red when the mains voltage 230VAC (alternating voltage) is switched on during the operation of loads.

The signal light goes out when the 200V DC (test DC voltage) is applied to the circuit, the demand switch is disconnected and all loads are switched off.

Up to 3 LED control lamps can be operated per circuit without disturbing the function of the demand switch.

Documentation (.pdf)

Technical data sheet
Weight 0,05 kg
Dimensions 3,5 × 4,2 × 1,7 cm
Scope of delivery

LED control light
Brand

TECHNICAL DETAILS LED INDICATOR LAMP FOR DEMAND SWITCHES
Colour white
Fluorescent colour orange / red
Operating voltage 230 VAC / 50Hz
CE conformity CE
Eigenschaften Control lamp simply plugged into a Schuko or Euro socket for independent checking of the mains decoupler functionality in the respective circuit.
Function Convenient status display for checking the mains decoupler function:
Mains voltage 230VAC
-> Consumer switched on -> Indicator lamp – ON
DC test voltage 200VDC
-> enabled state, consumer switched off ->indicator lamp- OFF
Power < 0,5 W (Watt)
Protection class Protective insulation (protection class II)
Overhang 17 mm
Application Control lamp for expansion or as replacement for our mains disconnectors in the webshop
Warranty The guarantee is with proper treatment with the usual 2 years (§434 BGB + §446 BGB)

Q & A

Ask a question
There are no questions yet

4 reviews for LED control lamp | simple control of the circuit shutdown using the demand switch or master switch

4.5
Based on 4 reviews
5 star
75
75%
4 star
0%
3 star
25
25%
2 star
0%
1 star
0%
1-4 of 4 reviews
  1. Avatar of Werner H.
    Werner H.
    Verified Owner

    Exactly what I have been looking for for a long time and have now received from Austria via the Internet.

    (0) (0)
  2. Avatar of Marianne K.
    Marianne K.
    Verified Owner

    Very fast delivery with prepayment

    (0) (0)
  3. Avatar of Meinrad
    Meinrad
    Verified Owner

    Everything great

    (0) (0)
  4. Avatar of Dirk
    Dirk
    Verified Owner

    Quick delivery. Safely packaged. Unfortunately, it does not work with the GIGAHERTZ Comfort NA7 mains disconnector (but it does with the Eltako FR12 mains disconnector).

    (0) (0)
