Stainless steel grounding tape | perforated tape or metal strap for grounding of reinforcement fabric, shielding mesh and shielding fleece. Available in 2 versions or lengths.
This stainless steel perforated tape is available in 2 lengths – 10 meters and 25 meters. It is intended for groundingGrounding is an electrically conductive connection with the electric potential of the ground. More electrically conductive surfaces using shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More reinforcement mesh, shielding stainless steel mesh or shielding shielding fleece. This metal strip is suitable for processing under plaster (e.g. under the parquet, laminate or plasterboard) and is basically ideal for earthing in drywall.
Processing of the stainless steel tape or metal strap
The material webs made of reinforcing mesh, stainless steel mesh or shielding fleece are rolled out on the surface, positioned overlapping by 5 – 10 cm and then fixed or glued to the substrate. Then this stainless steel tape is used. In order to guarantee the electrical conductivity for the grounding of all individual material webs, the metal strap is screwed as often as possible across the entire web with the substrate. This is especially true for the overlapping places. As a result, the individual webs made of reinforcing fabric, stainless steel mesh or fleece are pressed together with pressure and thus a good conductivity created (even if then in the case of the soil of the screed is poured).
To fix the metal strip on the shielding fabric commercially available screws can be used. We recommend screw fixing at least every 20 cm along the perforated belt.

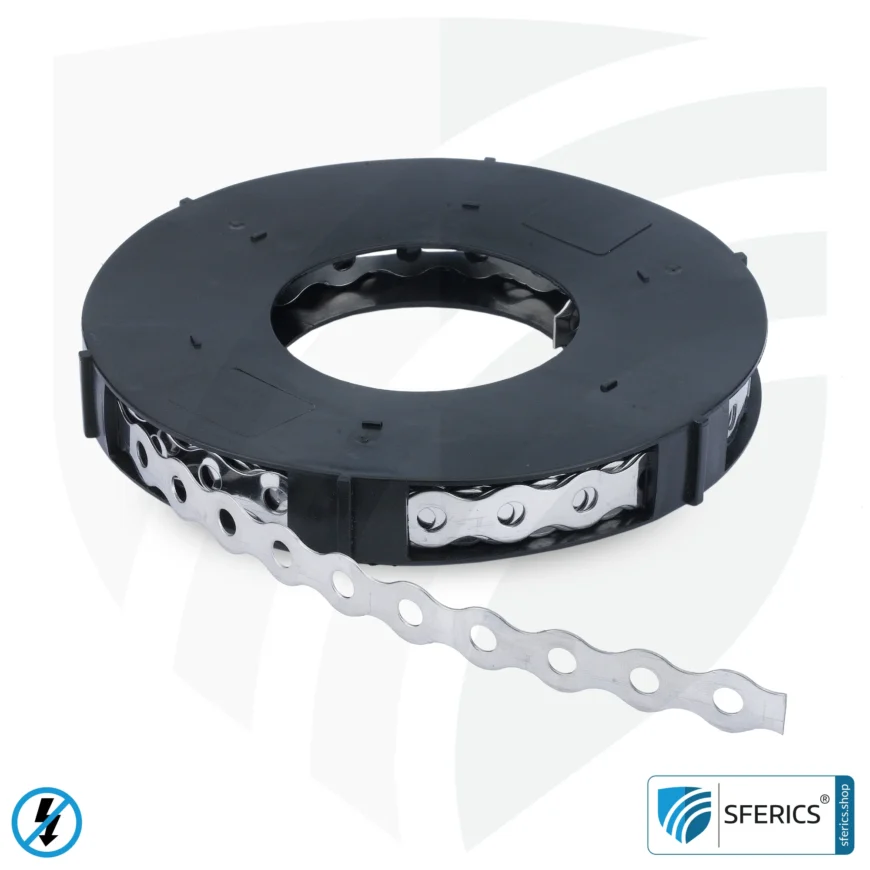

Details of the 10 meter stainless steel grounding tape (GSS10)
Hole spacing: 16mm
- Hole diameter: 6mm

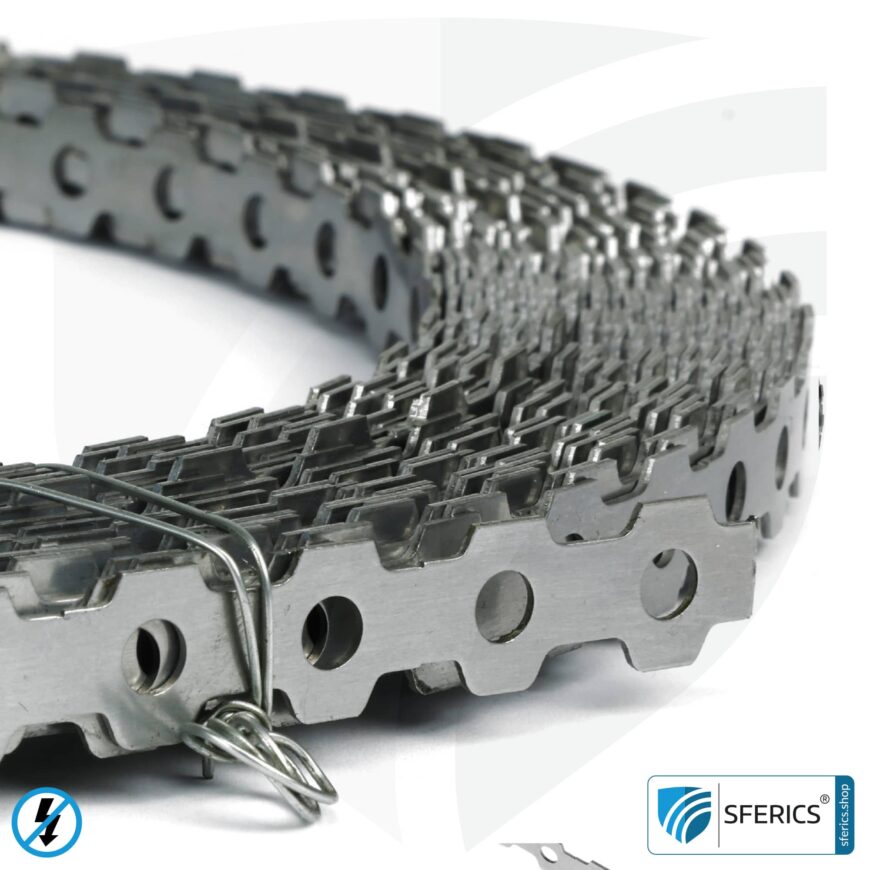

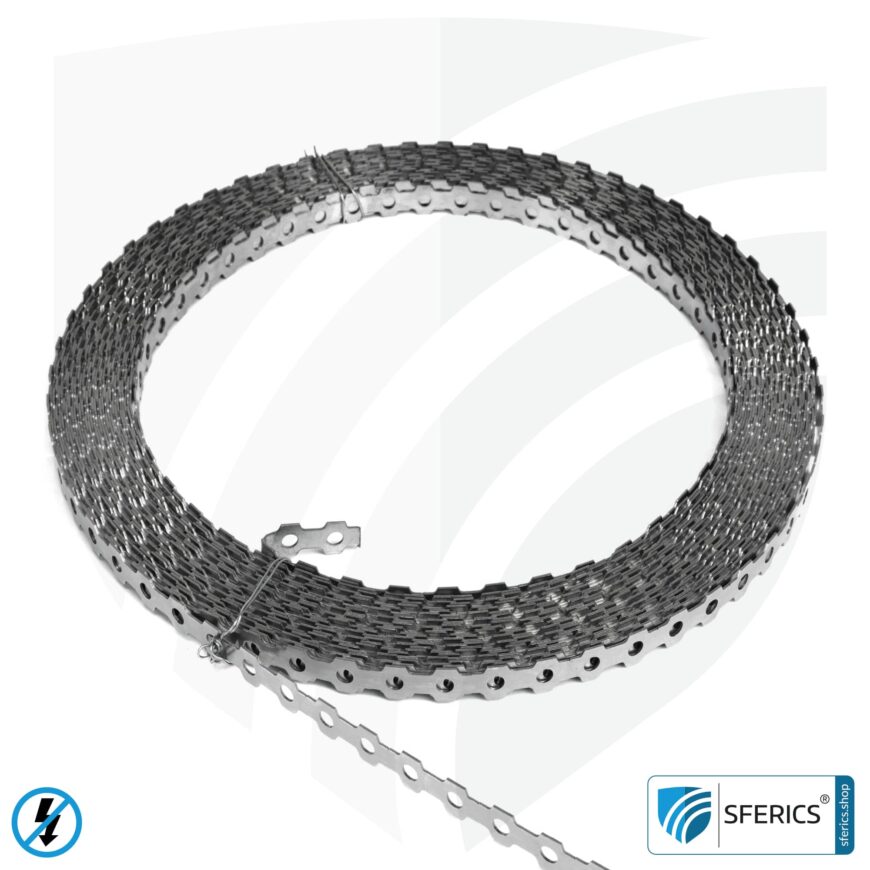

Details of the 25 meter stainless steel grounding tape (GSS25)
Hole spacing: 14.5mm
- Hole diameter: 5mm
Grounding a faraday cage is mandatory!
The grounding of a Faraday cageThe faraday cage is an enclosure made out of a conductive material that acts as an electric shield. More is imperative. This is also a legal requirement – the legislator writes that an electrically conductive surface must be earthed for reasons of personal safety.
This is about the mandatory potential equalization (up to the FI circuit breaker) which results from the “requirements for protection against electric shock” and is binding in a DIN VDE regulation.
Documentation for the Stainless steel perforated band (.pdf)Technical details Technical data grounding
