Shielding stainless steel gauze V4A10 | RF screening attenuation against electrosmog up to 40 dB | For laying. 90 cm width.

The stainless steel gauze V4A10 is ideal for effective EMF shielding with a shielding effectiveness of up to 40 dB. Due to its corrosion resistance, it is especially ideal for use as the basis of a basic shielding on exterior walls of the house – even in saltwater areas.

Price per meter (100 x 90 cm)
Quantity = number of linear meters

Delivery time: 1-3 business days | unit price € 13,22/sqm
No right of withdrawal for cut goods | request a free test sample

By the meter | € 6,90 charge per cut + packaging
per meter (cut) 1 roll (25 m) from 4 rolls (100 m)
€ 11,90 € 250,00 € 240,00/roll

Shielding stainless steel gauze V4A10 | RF screening attenuation against electrosmog up to 40 dB | For laying. 90 cm width. 5G ready!
Shielding stainless steel gauze V4A10 | RF screening attenuation against electrosmog up to 40 dB | For laying. 90 cm width.

SFERICS® field-tested and recommended

ab:  11,90

Shielding stainless steel gauze V4A10 | RF screening attenuation against electrosmog up to 40 dB | For laying. 90 cm width. 5G ready!

Shielding stainless steel gauze (mesh) V4A10 for flexible application inside and outside. The shielding fabric is corrosion resistant and insensitive to heat. With this shielding fabric against electrosmog HF + LF the highly effective radiation protection against electrosmog is possible. Shielding efficiency 99.99% (40dB). Width 90cm.

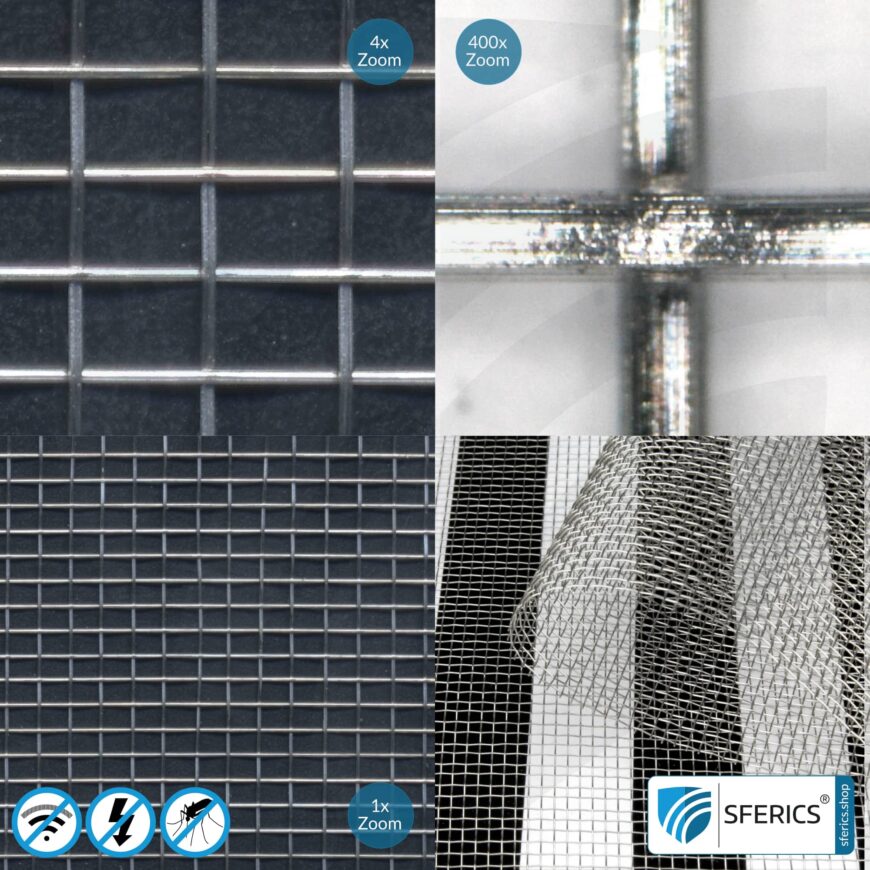

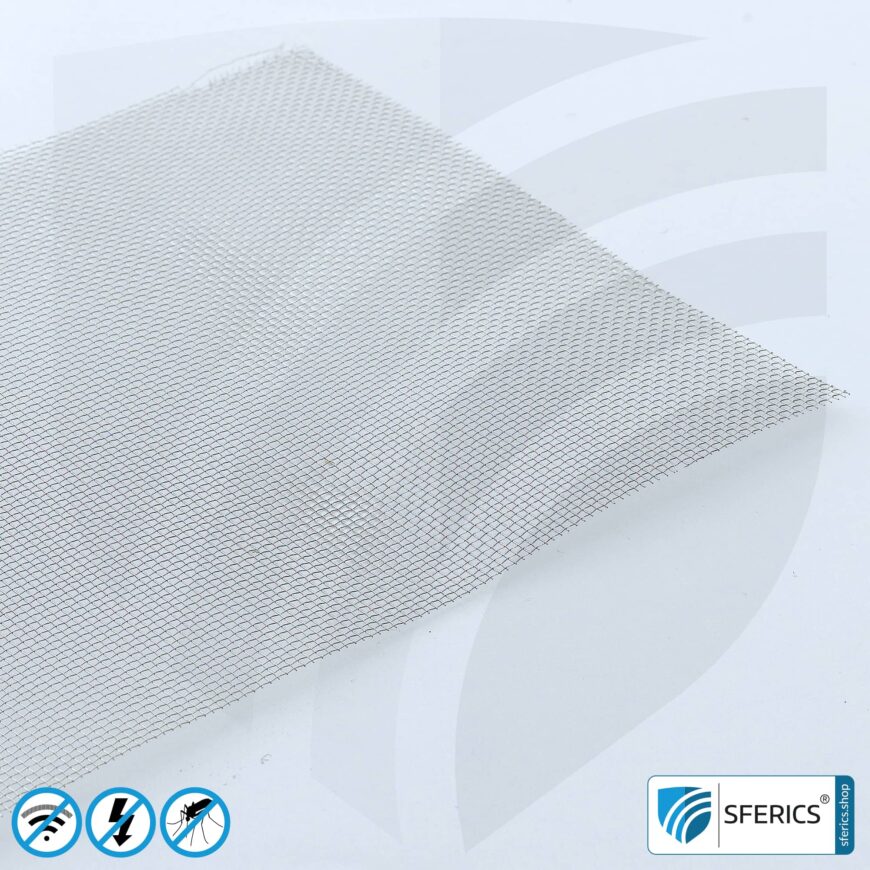

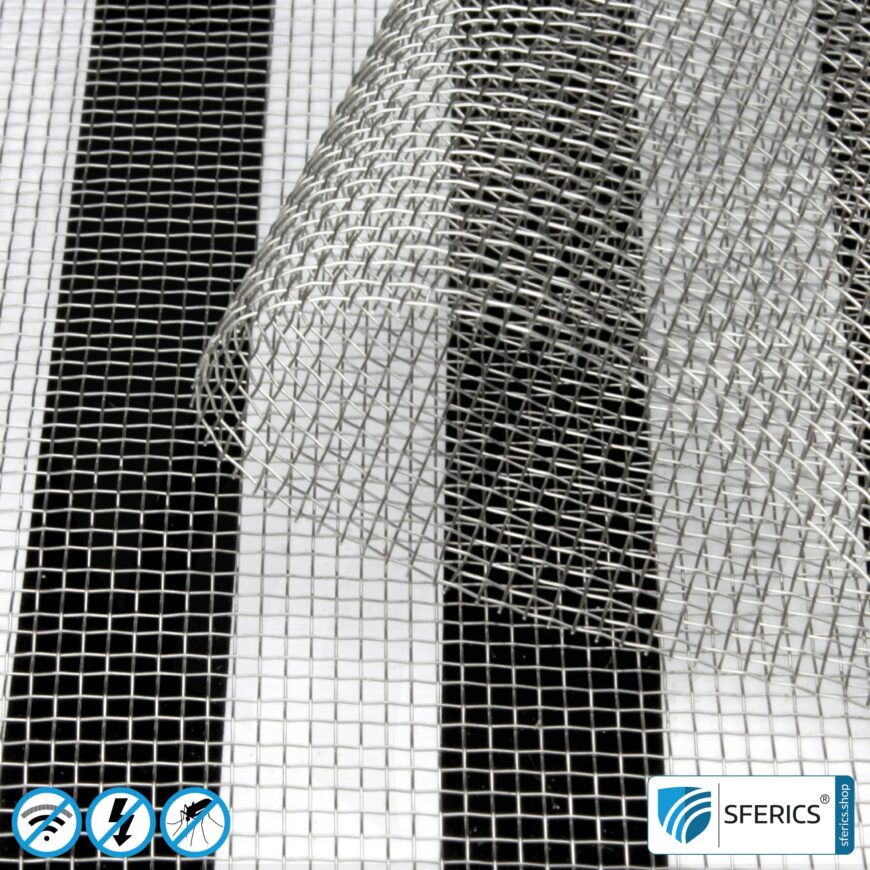

This V4A10 stainless steel mesh is a finely-woven and corrosion-resistant stainless steel mesh. It can be effectively installed to provide basic protection against electrosmog from radio (HF) and alternating fields from the power supply, for example (LF).

The shielding stainless steel mesh also impresses with its resistance to corrosion. It is ideal for house construction to protect the entire building, even near the coast and salt water. Importantly, the V4A10 stainless steel mesh is very resistant to water, steam, humidity, weak acids and salty seawater on the coast.

Typical use of the V4A10 stainless steel gauze

Inside and outside under the render in insulation, in the ceiling, in timber construction, dry construction, loose laying, and many more. Thanks to its 1mm-thick mesh, it can also be used as a fly screen against midges and mosquitoes, among others.

V4A10 stainless steel gauze technical information

  • Width: 90 cm
  • Length: by the meter / 25 m roll

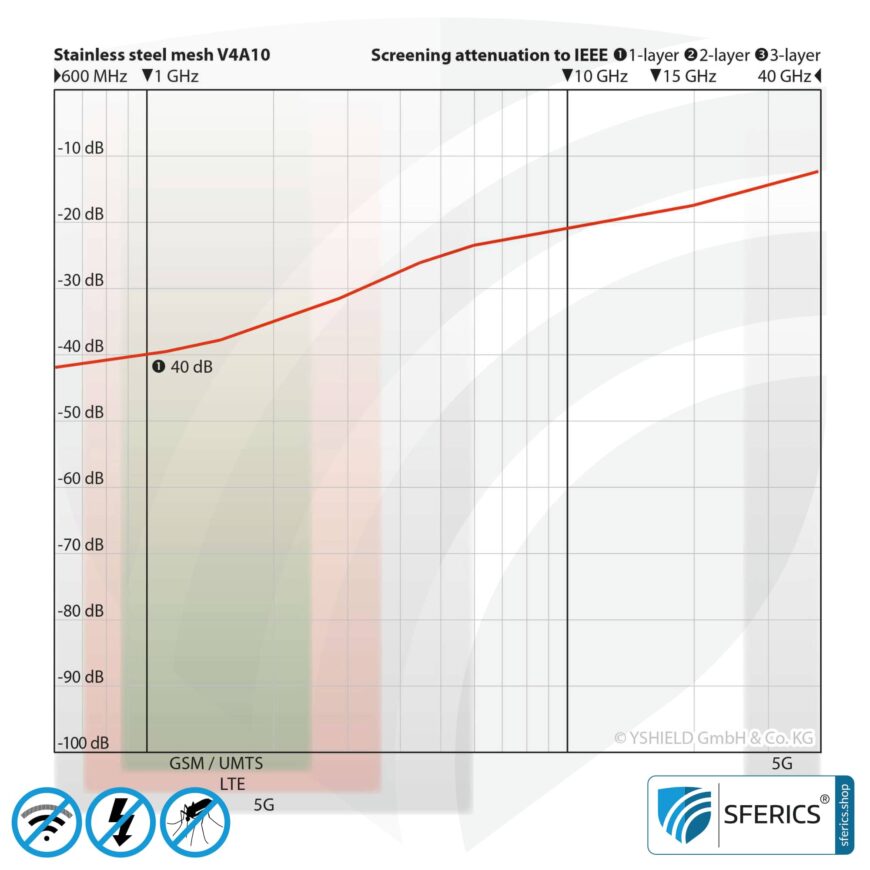

  • Screening attenuation: 40 dB. The specified dB values apply at 1 GHz. Measurement from 40/600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
  • Grammage: 260 g/m²
  • Mesh thickness / mesh density: 1 mm
  • Wire diameter: 0.16 mm
  • Material thickness: 0.32 mm
  • Surface conductivity: 0.1 Ohm (square resistance)
  • Fire-proof material, A1 according DIN 4102:1994
Smartcity EMF radiation Symbol image

Processing the V4A10 stainless steel mesh against electrosmog

When working under a render, this V4A10 stainless steel mesh should be stuck with the finest organic filler (without fillings) possible. When working under flooring (laminate, parquet, PVC, etc.), V4A10 is stuck on with the adhesive. In dry construction and ceilings, the tracks fasten or can be stuck on as required.

The following always applies: the tracks overlap for 5cm.

For grounding, our stainless steel tape is put on across all of the tracks and stuck to the substrate/tracks.

Shielding accessories

 29,90
TEST

Shielding accessories

 0,50

Order quantity, revocation of the order and small quantity surcharge

If the fleece has been cut in pieces of 1.0 running meter as requested by the customer, it is not possible to cancel or revoke the order. For this reason, it is possible to request a free sample of the shielding fleece. By ordering pre-finished products, waiving the statutory right to return goods is accepted.

Small quantity surcharges for small quantities up to 3 running meters have been removed for reasons of transparency and fairness. The individual linear meter therefore always has the same price or price advantage for larger quantities. To refinance expenses and packaging, we charge a flat rate of € 6,90 per cut.

Documentation of the V4A10 stainless steel gauze (.pdf)

Technical details Laboratory report screening attenuation Expert report EMF Test Lab Bavaria
Weight 0,28 kg
Dimensions 100 × 90 × 0,16 cm
Running meter

Quantity = desired length of stainless steel mesh

Length

Linear meter, 25 meters roll

Width

90 cm

Color

silver, metallic

Field type

HF (high-frequency electromagnetic field), LF (low-frequency electric alternating field)

Ecology

Very high

Brand

Country of origin

China

GTIN

4260103667722
