Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors

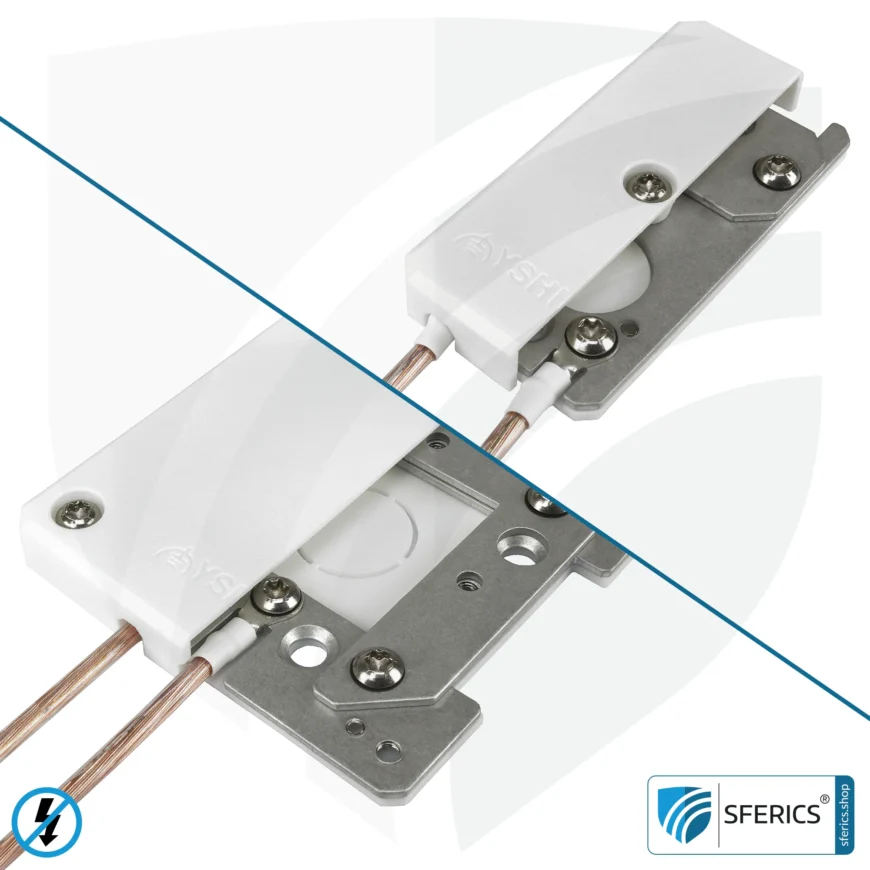

Surface-mounted and flush-mounted enclosures in 3 different sizes for mounting directly on shielding products or for clamping grounding straps.

  • suitable for indoor installation
  • suitable for outdoor mounting
  • mounting accessories included
  • 3 versions available (40x80mm, 80x80mm and 120x120mm)

Delivery time: approx. 1-3 business days

Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors

SFERICS® field-tested and recommended

ab:  24,90

Grounding house, for fixed mounting for grounding electrically conductive, shielded surfaces by means of shielding paint, shielding fleece or shielding fabric. For indoor or outdoor use, depending on the version.

Three different variants of grounding plates are available. Depending on the installation location, the appropriate grounding plate can be selected – an overview:

Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 40x80 mm

GROUNDING HOUSE, 40x80mm

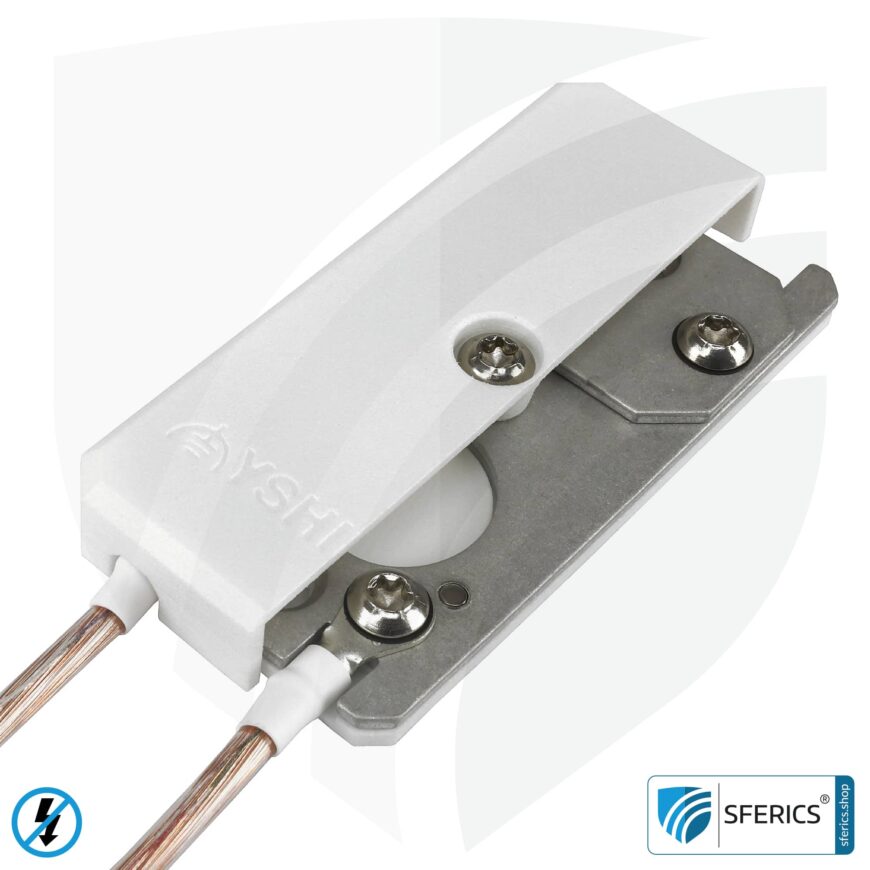

Medium surface-mounted and flush-mounted enclosure 40x80mm for mounting directly on shielding products or for clamping grounding straps.

Medium surface-mounted or flush-mounted enclosure in the size of 40x80mm. Suitable for mounting directly on shielding products or for clamping grounding tapes. With a clamping point for grounding straps is the recommendation for small areas with shielding paint, shielding fabric, shielding plaster, reinforcing fabric.

Suitable for use indoors as well as outdoors, but additional sealing is required here. One piece of the housing is required per shielded area. Note for flush mounting: with a height of 11 mm, this grounding enclosure is thinner than a drywall panel.

  • Connectivity: 1 terminal point, 2 cable connections
  • Scope of delivery: aluminium plate 35x75x2 mm, plastic cover 40x80x11 mm, 20 cm grounding strap, all necessary screws, washers, dowels, cable lugs and a screw tool with Torx® bits.
  • No cable included in the scope of delivery.
  • For grounding, an additional grounding cable is required. Suitable ready-made grounding cables GL in various lengths are conveniently available in the shop.
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 40x80 mm
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 40x80 mm
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 40x80 mm
Download data sheet

Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 80x80 mm

GROUNDING HOUSE, 80x80mm

Medium surface-mounted and flush-mounted enclosure 80x80mm for mounting directly on shielding products or for clamping grounding straps.

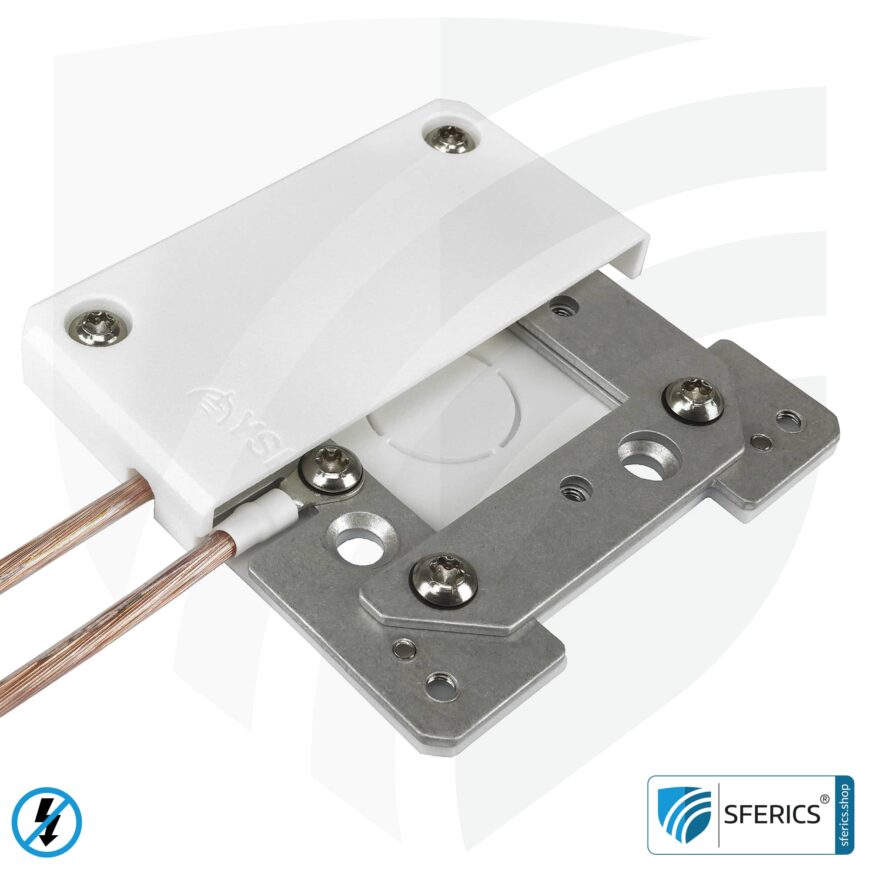

Standard surface-mounted or flush-mounted enclosure in the size of 80x80mm. Suitable for mounting directly on shielding products or for clamping grounding straps. With three clamping points for grounding tapes is the recommendation for all surfaces with shielding paint, shielding fabric, shielding plaster, reinforcing fabric.

Suitable for use indoors as well as outdoors, but additional sealing is required here. One piece of the enclosure is required per shielded area. Note for flush mounting: with a height of 11 mm, this grounding enclosure is thinner than a drywall panel.

  • Connectivity: 3 clamping points, 2 cable connections.
  • Scope of delivery: aluminium plate 75x75x2mm, plastic cover 80x80x11mm, 20 cm grounding strap, all necessary screws, washers, dowels, cable lugs and a screw tool with Torx® bits.
  • No cable included in the scope of delivery.
  • For grounding, an additional grounding cable is required. Suitable ready-made grounding cables GL in various lengths are conveniently available in the shop.
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 80x80 mm
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 80x80 mm
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 80x80 mm
Download data sheet

Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 120x120 mm

GROUNDING HOUSE, 120x120mm

Large surface-mounted and flush-mounted housing 120x120mm for mounting directly on shielding products or for clamping grounding straps.

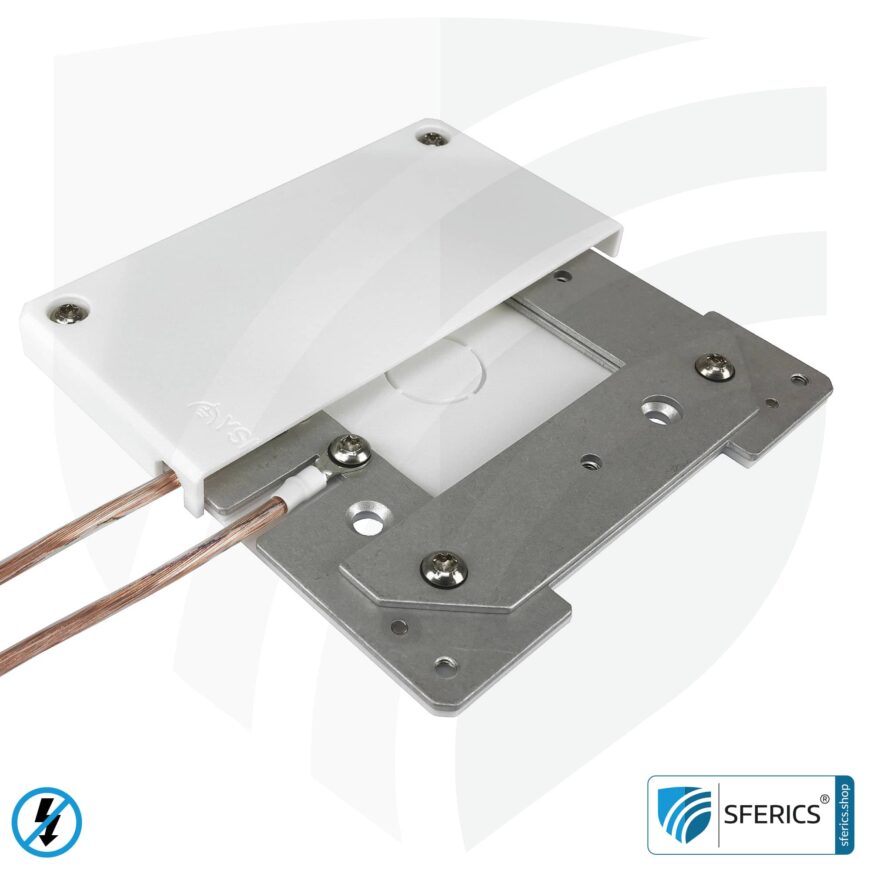

Large surface-mounted or flush-mounted housing in the size of 120x120mm. Due to the large surface area, preferred for use in façade and roof areas. With three clamping points for grounding tapes is recommended for all surfaces with shielding paint, shielding fabric, shielding plaster, reinforcing fabric.

Suitable for use indoors as well as outdoors, but additional sealing is required here. One piece of the enclosure is required per shielded area. Note for flush mounting: with a height of 11 mm, this grounding enclosure is thinner than a drywall panel.

  • Connectivity: 3 clamping points, 2 cable connections.
  • Scope of delivery: aluminium plate 115x115x2 mm, plastic cover 120x120x11mm, sealing adhesive UHU, 20 cm grounding tape, all necessary screws, washers, dowels, cable lugs and a screw tool with Torx® bits.
  • No cable included in the scope of delivery.
  • For grounding, an additional grounding cable is required. Suitable ready-made grounding cables GL in various lengths are conveniently available in the shop.
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 120x120 mm
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 120x120 mm
Grounding housing, stationary | grounding of shielded surfaces | indoors and outdoors | 120x120 mm
Download data sheet

Grounding documentation (.pdf)

Technical details grounding
Weight N/A
Dimensions N/A
Variants

40x80mm, 80x80mm, 120x120mm

Field type

LF (low-frequency electric alternating field)

Brand

Country of origin

Germany
