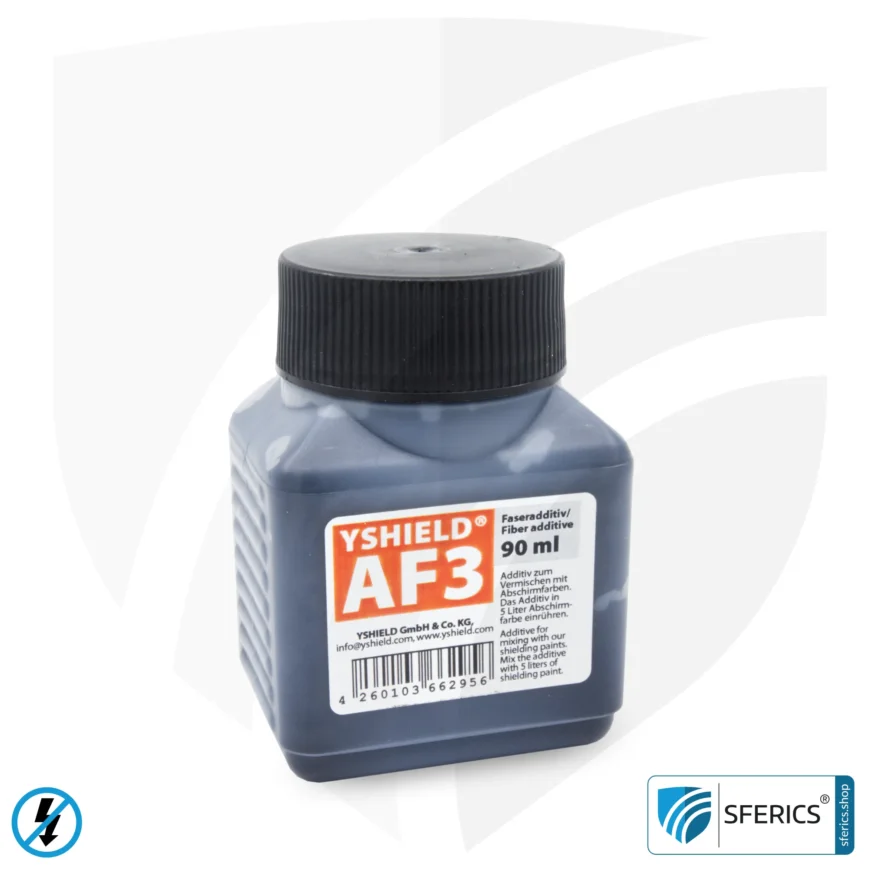

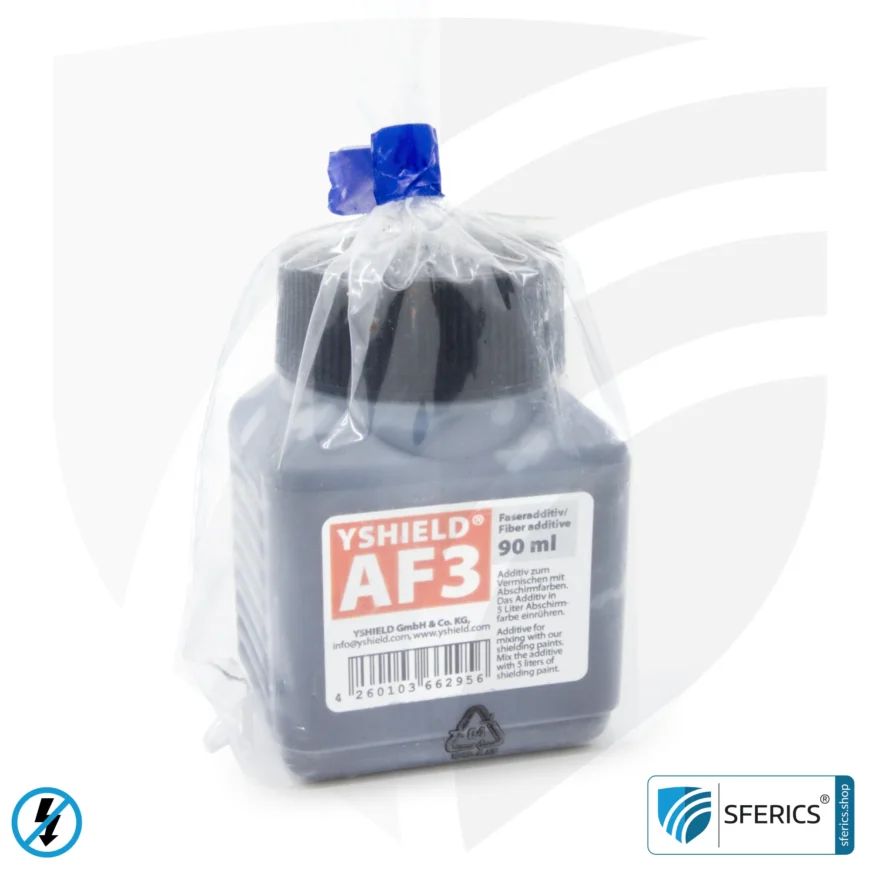

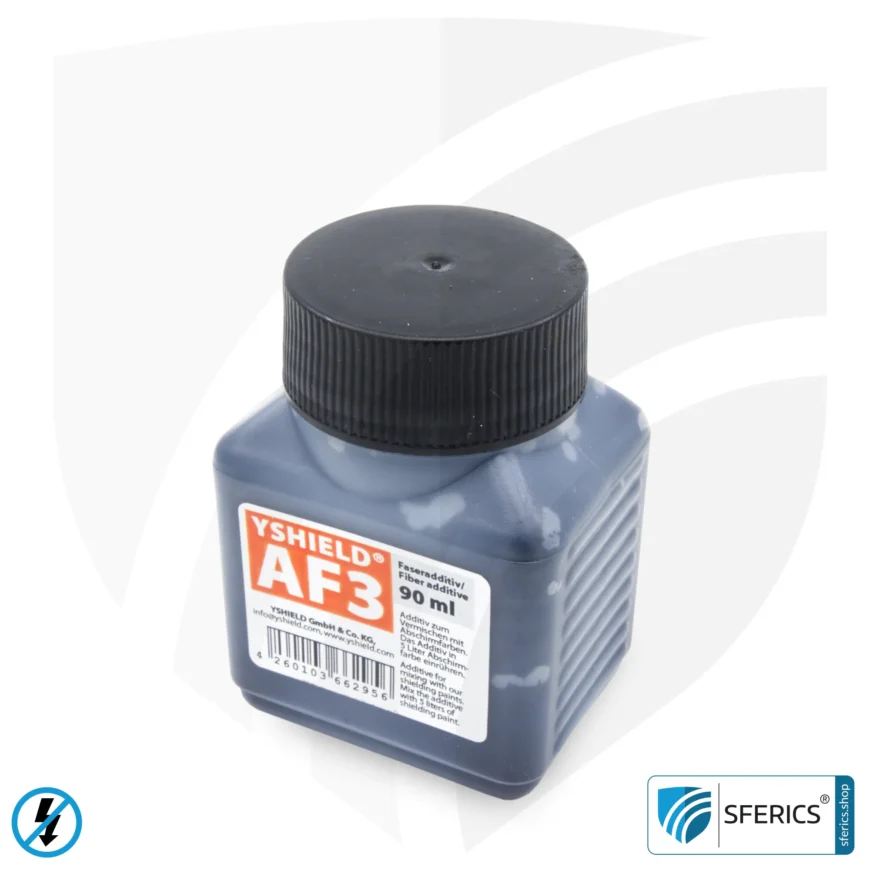

AF3 ADDITIVE | with electrically conductive carbon fibers | alternative to self-adhesive grounding tape

As time goes on, protected surfaces can form tears depending on the surface underneath. All shielding paints containing metal must be grounded in order to prevent such tears from appearing.

With this crack-bridging AF3 ADDITIVE, the shielding paint can be mixed with conductive carbon fibers and solve the problem regarding tears without any additional grounding tape.

Delivery time: approx. 1-3 business days

SFERICS® field-tested and recommended

 19,90 ( 16,72 excl. VAT)

The AF3 ADDITIV contains long, electrically conductive carbon fibers and is an alternative to the classic self-adhesive grounding tape. It is mixed with shielding paints and is therefore invisible and bridges cracks underneath.

If a room is protected by a conductive shielding paint, this Faraday cage must be grounded. This grounding is normally accomplished with a self-adhesive grounding strap and conductive glue. Depending on the surface that the shielding paint was applied to, tears can appear over time. With the AF3 ADDITIVE, these tears can be bridged, even without grounding tape.

All shielding paints made by YSHIELD are formulated without any tearing carbon fibers. As a result, these airless paints are sprayable. However, if this is not needed and the paint is applied with a roller, the subsequent mixture with this AF3 ADDITIVE with long, conductive carbon fibers can be done before painting.

AF3 ADDITIVE | with electrically conductive carbon fibers | alternative to self-adhesive grounding tape

Processing the AF3 ADDITIVE

The AF3 Additive contains 90 mL of long, conductive carbon fibers. This quantity of 90 mL is enough for 5-liter shielding paints and is easily mixed. Always use an electric mixer and stir for at least a minute to get a completely homogenous mixture.

The AF3 ADDITIVE is suitable for the MAX54, PRO54, HSF54, HSF64, DRY54 und NSF34 shielding paints.

AF3 ADDITIVE technical information

  • Suitable for YSHIELD shielding paints: MAX54, PRO54, HSF54, HSF64, DRY54 and NSF34
  • Container size: 90 ml
  • Yield: For mixing with 5-liter shielding paint
  • Ingredients: Water, carbon black, carbon fibers, surfactant, anti-foaming agents, preservatives (MIT, BIT).
  • Color: Black
  • Frost-resistant (3 freeze/cycle), can be shipped all year

Documentation (.pdf)

Technical details grounding
Weight 0,15 kg
Dimensions 5 × 5 × 7,5 cm
Application

Earth

Suitability

PRO54, HSF54, HSF64, HSF74, NSF34

Filling quantity

Yield

For mixing with 5-liter shielding paint

Ingredients

, , , , ,

Color

black

Ecology

Normal

Shelf life

Frost-resistant (3 freeze/thaw cycles), can be shipped all year

Brand

Country of origin

Germany
