Grounding plate | stationary for indoor rooms | grounding of shielded surfaces

Stationary grounding plate for grounding shielded surfaces by means of shielding paint, shielding fabric or shielding fleece. Exclusively for indoor use.

  • Indoors next to a socket
  • Indoors on the baseboard
  • Indoors on grounded installations

Delivery time: approx. 1-3 business days

Grounding plate | stationary for indoor rooms | grounding of shielded surfaces
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces

SFERICS® field-tested and recommended

ab:  19,80

Grounding plate for stationary fixed mounting of indoor rooms. For grounding electrically conductive, shielded surfaces by means of shielding paint, shielding fabric or shielding fleece.

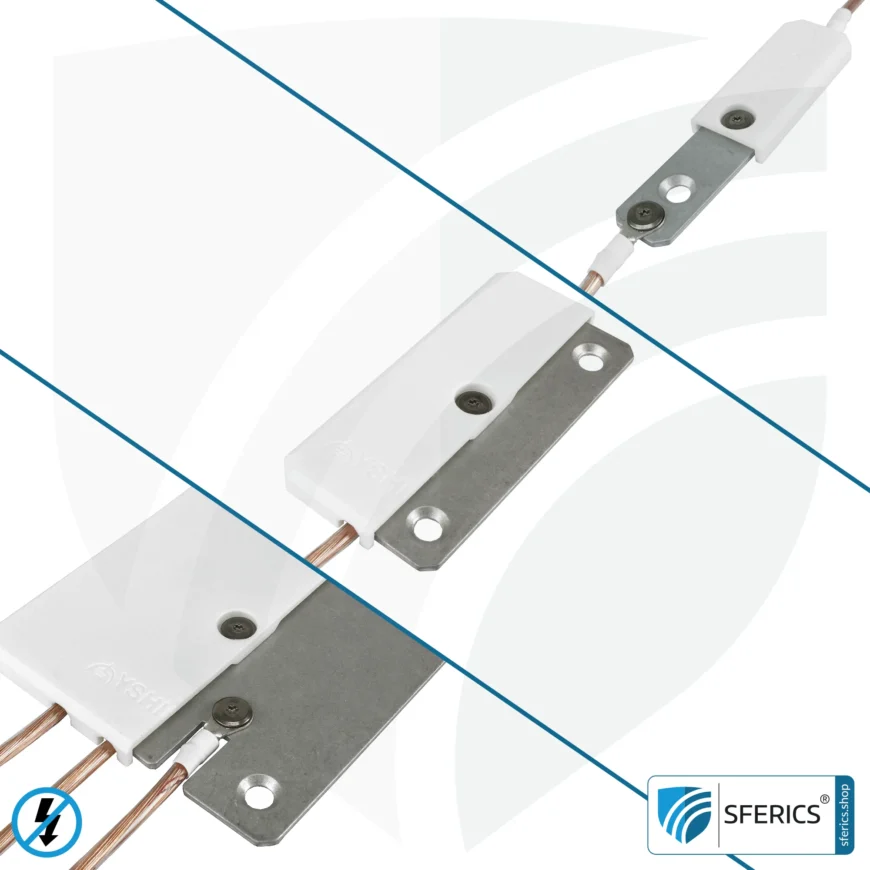

Different variants of earthing plates are available. Depending on the installation location, the appropriate earthing plate can be selected – an overview:

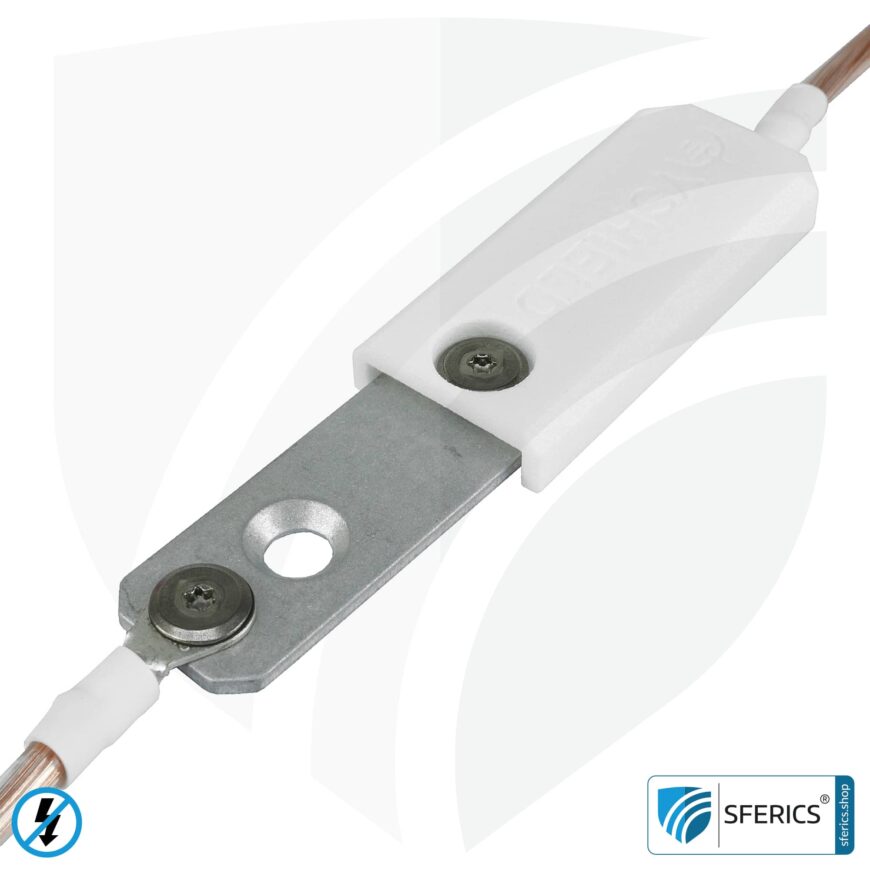

Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 20 x 80 mm

GROUNDING PLATE, 20×80 mm

Small and flat grounding plate 20×80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

One grounding plate is required per contiguous surface. 2 cable connections integrated as connectivity.

  • Scope of delivery: Aluminium plate 15x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. No grounding cable included in  scope of delivery.
  • We recommend our ready-made grounding cables GL. If not available in the shop, please enquire.
  • Application: grounding
  • Colour: silver, white
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 20 x 80 mm
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 20 x 80 mm
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 20 x 80 mm
Download data sheet

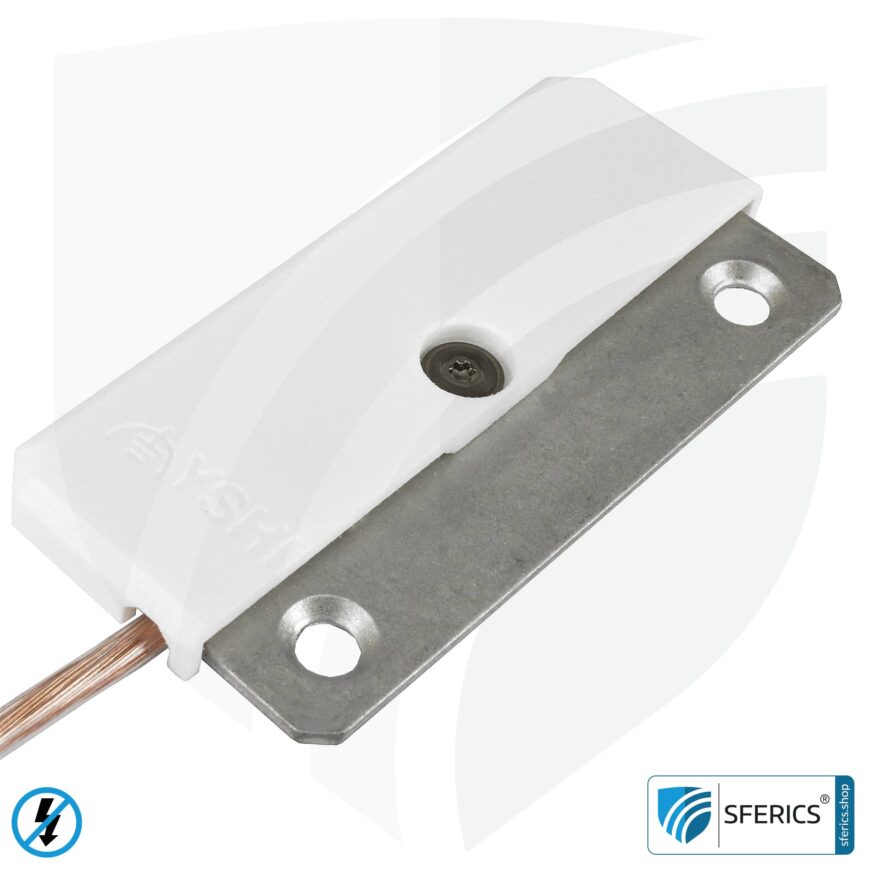

Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 40 x 80 mm

GROUNDING PLATE, 40×80 mm

Small and flat grounding plate 20×80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

One grounding plate is required per contiguous surface. 1 cable connection integrated as connectivity.

  • Scope of delivery: Aluminium plate 35x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. No grounding cable included in  scope of delivery.
  • We recommend our ready-made grounding cables GL. If not available in the shop, please enquire.
  • Application: grounding
  • Colour: silver, white
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 40 x 80 mm
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 40 x 80 mm
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 40 x 80 mm
Download data sheet

Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 80 x 80 mm

GROUNDING PLATE, 80×80 mm

Small and flat grounding plate 80×80 mm for installation directly on top of shielding products and grounding straps. For the skirting board area. Installation preferably in the baseboard area (due to its small grounding surface) with shielding paint, shielding mesh. Usage only on the interior. One piece per wall is necessary due to the small contact area. Height when completely mounted is only 4 mm (without cover) or 6 mm (including cover).

One grounding plate is required per contiguous surface. 3 cable connections integrated as connectivity.

  • Scope of delivery: Aluminium plate 75x75x2 mm, plastic cover 20x80x6 mm, all necessary screws, discs, dowels, cable lugs and a screwing tool with Torx®-Bits. No grounding cable included in  scope of delivery.
  • We recommend our ready-made grounding cables GL. If not available in the shop, please enquire.
  • Application: grounding
  • Colour: silver, white
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 80 x 80 mm
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 80 x 80 mm
Grounding plate | stationary for indoor rooms | grounding of shielded surfaces | 80 x 80 mm
Download data sheet

Grounding documentation (.pdf)

Technical details grounding
Weight N/A
Dimensions N/A
Variants

20x80mm, 40x80mm, 80x80mm

Field type

LF (low-frequency electric alternating field)

GTIN

4260103665094

Brand

Country of origin

Germany
