Shielded device connection cable with switch | white | 2 meters length | electrical cable for shielding alternating electric and magnetic fields LF

Shielded device connection cable with shielded switch and free end for healthy freedom when working with electrical appliances. 2 meters long and in the color white. Even if the end device such as TV or stereo system meets modern standards around EMF radiation, the connected electrical cable usually goes unnoticed.

With this electrical cable, this “weak point” is also remedied and additionally extended by a high-quality on/off switch – the quick conversion by an electrician is made possible with this cable.

Delivery time: approx. 1-3 business days

In stock

SFERICS® field-tested and recommended

 42,10 ( 35,38 excl. VAT)

Shielded device connection cable with switch | white | 2 meters length | electrical cable for shielding alternating electric and magnetic fields LF

Shielded device connection cable with switch and free end, white, 2 meters length for flexible use

This shielded electrical cable with switch and free end provides even more healthy freedom when working with electrical devices. Even if the end device such as TV, stereo or SAT receiver meets modern standards such as TCO, the electrical cable used usually remains the “weak point” in electrosmog caused by low-frequency alternating fields. With this shielded cable, the electrician can change this situation quickly and effectively – simply by replacing the cable.

After the exchange, the electric alternating field LF of the electric cable is reduced to a maximum and sometimes no longer detectable by measurement. In addition, this shielded cable with a free end also reduces the magnetic field. This is achieved by twisting the wires 15 times per metre.

The on/off switch makes this shielded electric cable so special!

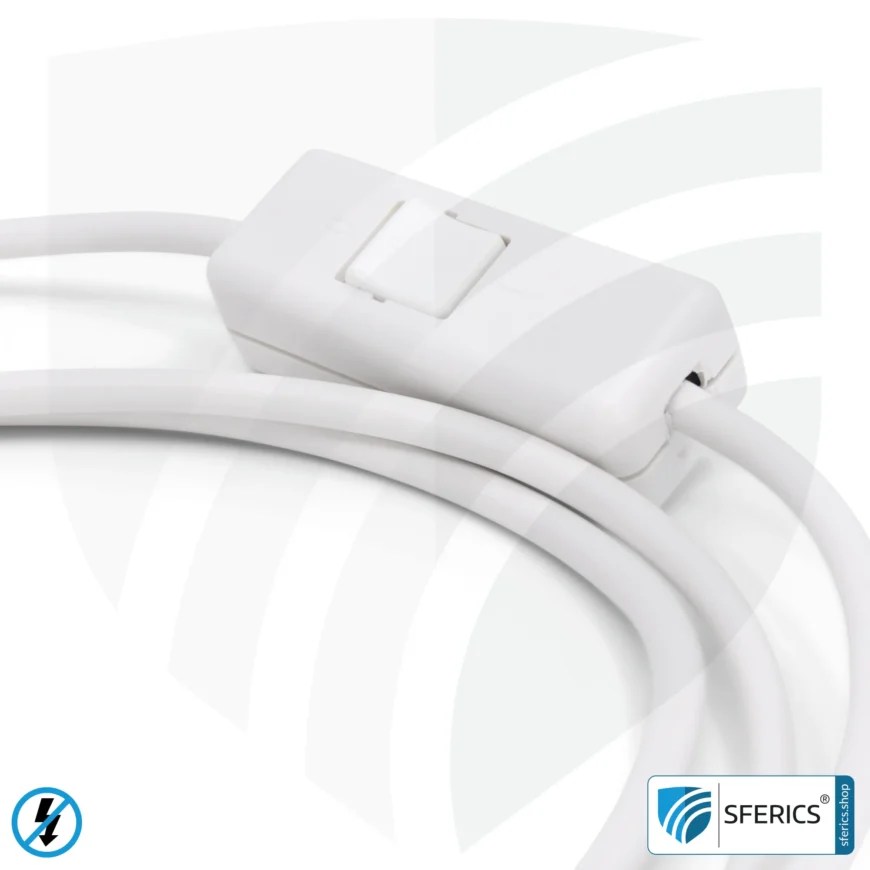

The special feature of this shielded cable is the shielded intermediate cord switch, i.e. the shielded on/off switch directly integrated in the cable. Since this electrical cable has a free end, practically any existing cable of a commercially available consumer can be replaced with it. The integrated switch does even more than just be convenient for operation. Every electrical appliance, with the exception of the washing machine, needs a transformer to convert alternating current back to direct current. This transformer must be installed in the appliance as well as visibly in front of it as part of the electric cable.

If a consumer such as a floor lamp is permanently connected to the socket, a strong magnetic field may be produced in addition to the electric field. This depends on where the disconnector – i.e. the on/off switch – is mounted. If this switch is between the plug and the transformer, the magnetic field is non-existent, but if the on/off switch is between the transformer and the consumer, the magnetic field is permanent (because the transformer is permanently supplied with power). This shielded electric cable with on/off switch solves both issues directly by replacing the electric cable leading directly to the transformer – electric field (V/m) and magnetic field (nT).

Details of plug with shielded cable with on/off switch and free end, white

  • Length: 2 meters
  • Cable cross-section: 0.75 mm²
  • Color: white

Ideal areas of application and use

  • Bedroom and children’s room
  • Living rooms
  • Offices / PC workstations
  • Home office
  • Guest room
  • Kitchen
  • etc.

For retrofitting protection class 1 devices (movable devices), e.g.

  • Lights
  • Iron
  • Kitchen appliances
  • Radio
  • etc.
Alternating electric fields LF radiation Symbol image

This shielded cable is usable in the following countries

CEE-7/4 (German system) and CEE-7/7 (French system): Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Italy, Korea, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Turkey, Ukraine.

Documentation (.pdf)

Download data sheet Details on building biology electrical installations
Weight 0,36 kg
Dimensions 200 × 0,75 × 0,75 cm
Length

2 meters

Scope of delivery

Electric cable

Field type

LF (low-frequency electric alternating field)

Brand

Country of origin

Germany

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Color white
length 200 cm ± 2%
Operating voltage 230 VAC
Load Operating voltage max. 250VAC / 50Hz – 6A according to IEC 884
Examination basis individually according to EN 60320 / 2.2 (ISO 9002) TCO’99 (MPR II, DIN prEN 50279)
Shielding attenuation max. in dB (earth dependent)
Shielding attenuation max. in dB > 99% (earth dependent)
Processing Very high quality and sturdy shielded device connection cable with open end and built-in line switch.
Diameter Ø 6.6 mm ± 0.2 mm
Cable insulation polyvinyl chloride

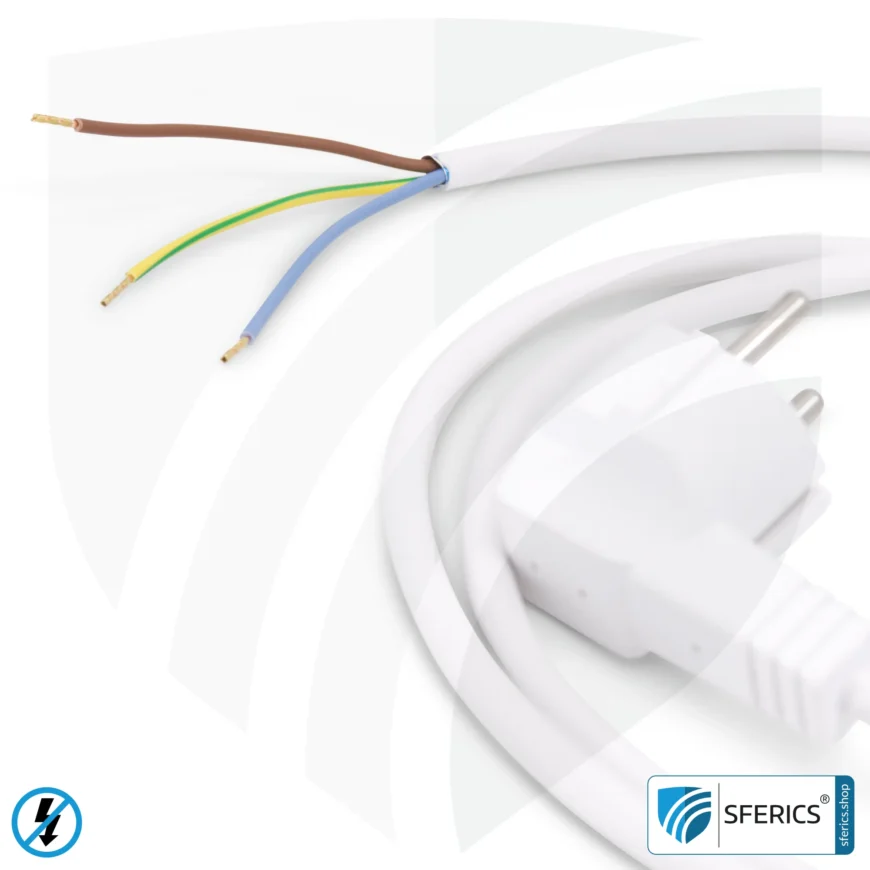

Cable open end stripped approx. 70 mm, with wire end sleeves
Cross section 3 x 0.75 mm² (shielded)
Switch Toggle switch with 2-pole disconnection
Shielding Plastic-coated aluminum tape, drain wire Cu 1.0 mm²
Shielding magnetic alternating field Beat 10 (single wires twisted against each other once every 10cm – compensation)
Protection class 1 (with protective conductor yellow / green)
angled plug molded, CEE standard 7 / VII, DIN 49441
Important information ATTENTION: The installation of the device connection cable is reserved exclusively for a qualified electrician! Before inserting the cable, it is essential to disconnect the mains voltage. Please also note that the lamp could still be hot and cause burns!
Area of ​​application 1. Bedroom and children’s room
2. Living spaces
3. Offices / PC workstations
4. Guest room
5. Kitchen
6. etc.
Application example For retrofitting protection class 1 devices, such as lights or other movable devices.
Scope of delivery 1. Device connection cable with integrated cord switch (GAL SZ 2.0 ws [white])
2. Installation instructions
Other notes The device connection cable GAL SZ 2.0 (white) is ideal for subsequent shielding of conventional metal lights with a nostalgic value. Simply connecting the cable does not automatically shield the lamp. If this is desired, we recommend lights that are completely shielded. You can find these in our shop category “Lamps”.
Warranty The warranty for this product with appropriate handling is the usual 2 years (§434 BGB + §446 BGB)
