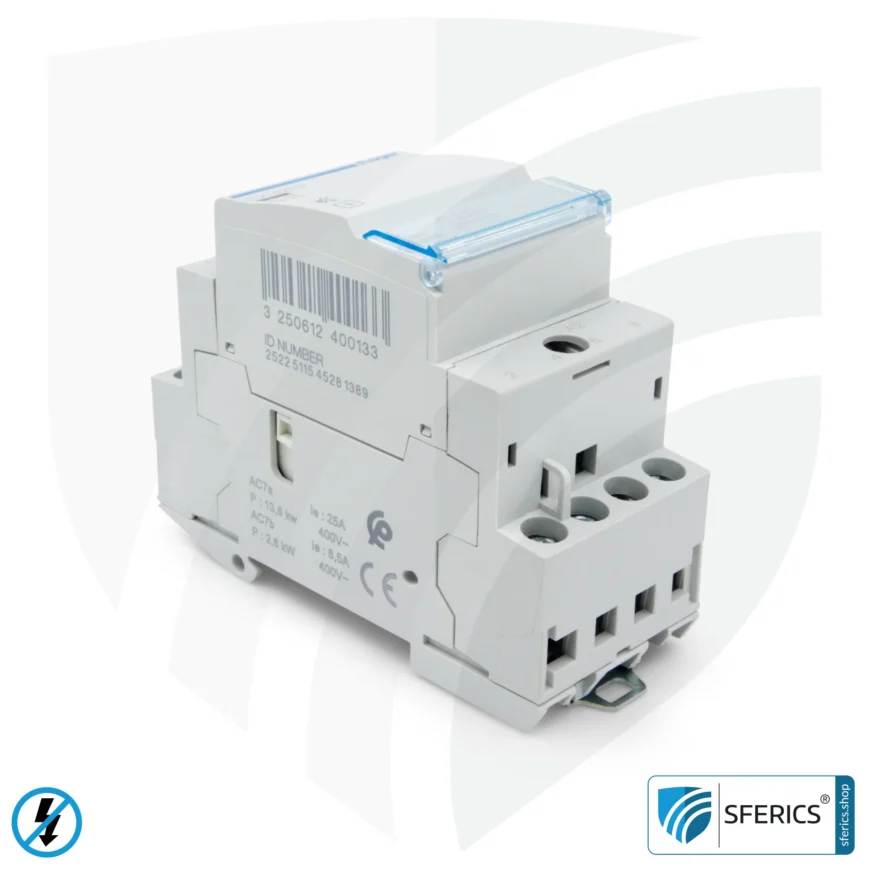

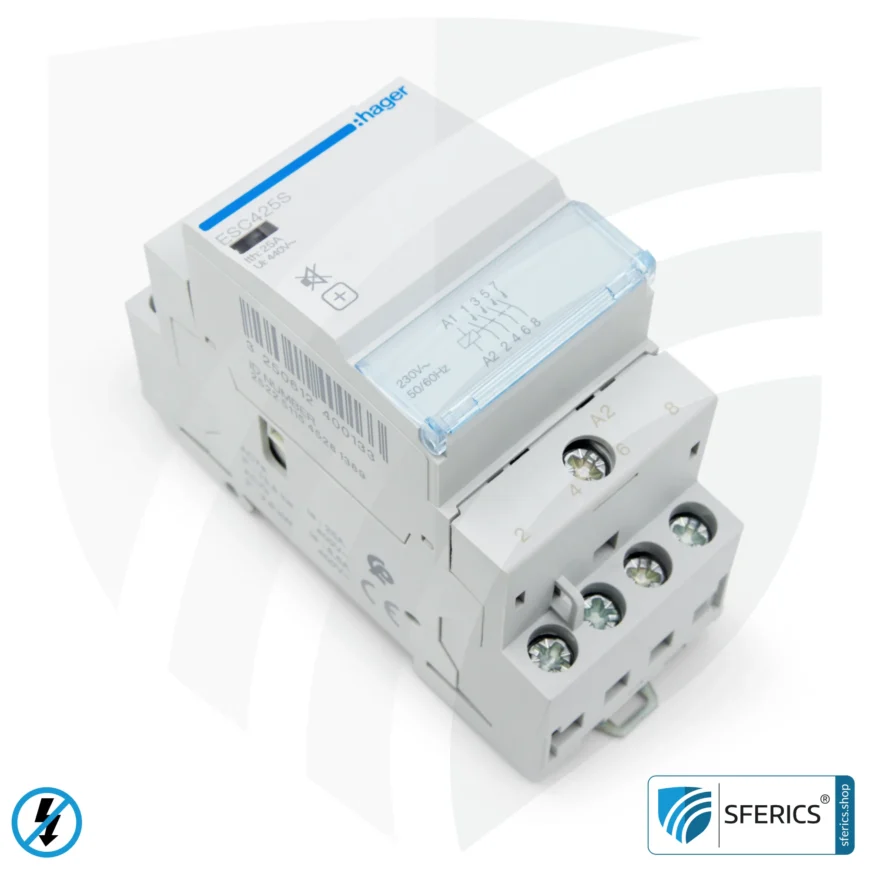

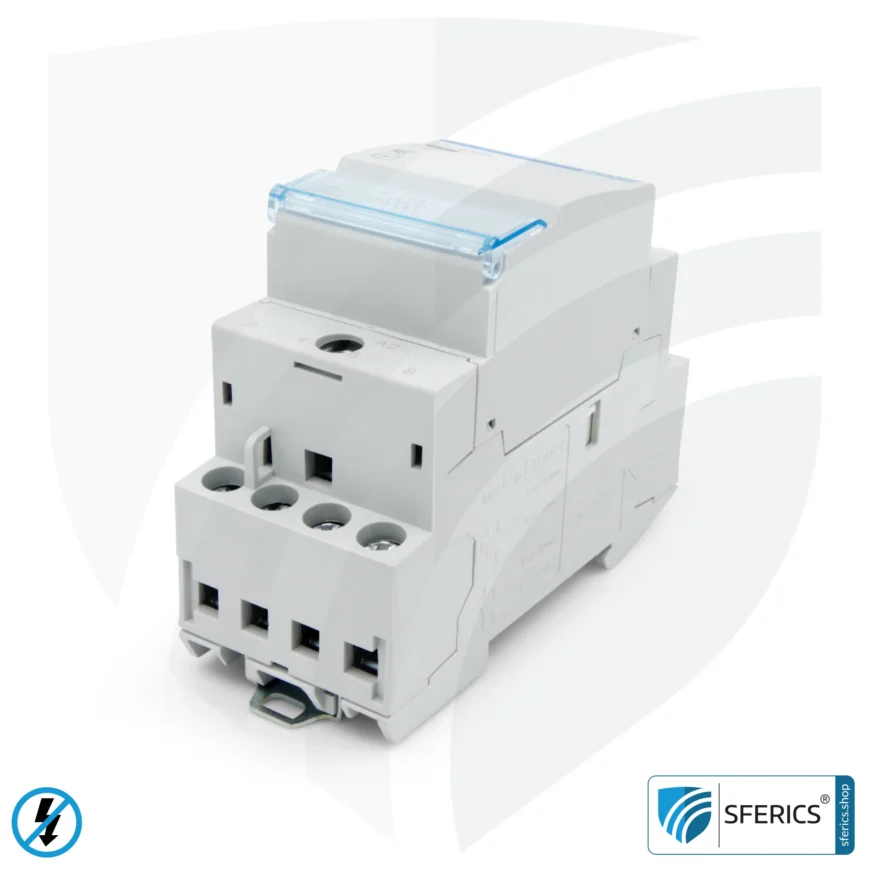

Auxiliary relay ESC 425S | Mains disconnection of 3~ phase consumers, several circuits, … | Expansion of the field disconnect switch NA 16-1P Funk | Master switch set up

Auxiliary relay for expanding the mains switch NA 16-1P Funk of our master switch series.

master switch series

Necessary to control 3~ phase devices (e.g. electric stove) or to switch off several circuits at the same time.

Delivery time: approx. 1-3 business days

In stock (can be backordered)

SFERICS® quality verified

€ 44,49

SKU: 720053-WD Category: Tags: , , , , ,

MASTER SWITCH SERIES

MASTER SWITCH SERIES

Auxiliary relay ESC 425S | Mains isolation of 3~ phase consumers, several circuits, ... | Expansion of the field disconnect switch NA 16-1P Funk | Master switch set up

The auxiliary relay ESC 425S is an extension of our master switch series. This expands the performance and compatibility of the NA 16-1P Funk field disconnection switch with 3~ phase end consumers.

Our master switch series convinces on many levels with functionality, options and diverse applications. However, there is the issue of 3~ phase end devices such as the electric stove, which cannot be controlled by the NA 16-1P radio mains switch. Or if you want to switch off several circuits at the same time. These are special requirements which require an extension of the NA 16-1P radio mains switch with this auxiliary relay.

This auxiliary relay ESC 425S also enables the NA 16-1P Funk field disconnect switch to switch these loads, i.e. applications with 3~ phases (400 V). The auxiliary relay is installed next to the mains decoupler in the power distribution box and controlled by its output.

MASTER SWITCH SERIES

Overview of the range and parts of our master switch series

Demand switch NA 16-1P radio with dual operating mode | master switch set-up | building biological radio technology according to EnOcean standard | LED control lamp includedDemand switch NA 16-1P radio with dual operating mode | master switch set-up | building biological radio technology according to EnOcean standard | LED control lamp included
Quick View

Master switch

Master / Demand switch NA 16-1P RADIO with dual operating mode | master switch set-up | building biological radio technology according to EnOcean standard | LED control lamp included

€ 355,81
Add to basket
Repeater RP-NA16-KA | level 2 repeater for the fuse box | master switch set-up | building biology save wireless technology according to EnOcean standardRepeater RP-NA16-KA | level 2 repeater for the fuse box | master switch set-up | building biology save wireless technology according to EnOcean standard
Quick View

Master switch

Fuse box repeater RP-NA16-KA | repeater for the fuse box | level 2 | master switch setup | building biological radio technology according to the EnOcean standard

€ 117,80
Add to basket
Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standardHand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard
Quick View

Master switch

Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

€ 52,40
Add to basket
Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standardWall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard
Quick View

Master switch

Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

€ 46,40
Add to basket
Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standardSurface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard
Quick View

Master switch

Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard

€ 75,10
Add to basket
Antenna ANT-NA16 | external antenna for fuse box repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standardAntenna ANT-NA16 | external antenna for fuse box repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standard
Quick View

Master switch

Antenna ANT-NA16 | external antenna for fuse box repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standard

€ 23,90
Add to basket

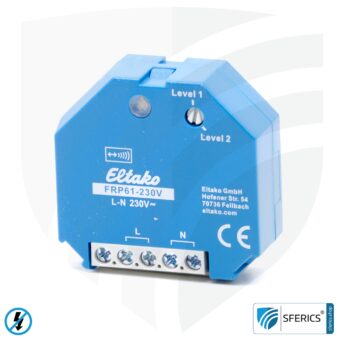

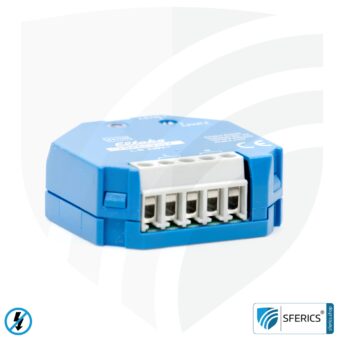

Flush-mounted repeater RP-NA16-UP | level 1+2 repeater for mounting in installation box | master switch set-up | building biology safe wireless technology according to EnOcean standardFlush-mounted repeater RP-NA16-UP | level 1+2 repeater for mounting in installation box | master switch set-up | building biology safe wireless technology according to EnOcean standard
Quick View

Master switch

Flush-mounted repeater RP-NA16-UP | level 1+2 repeater for mounting in installation box | master switch set-up | building biology safe wireless technology according to EnOcean standard

€ 55,30
Add to basket
RC Network XEB1201 | RC element for the auxiliary relay ESC 425S | To prevent interference | Master switch set upRC Network XEB1201 | RC element for the auxiliary relay ESC 425S | To prevent interference | Master switch set up
Quick View

Master switch

RC Network XEB1201 | RC element for the auxiliary relay ESC 425S | To prevent interference | Master switch set up

€ 24,00
Add to basket

Documentation (.pdf)

Details and scheme Product data sheet
Weight 0,15 kg
Dimensions 8,5 × 3,5 × 6 cm
Scope of delivery

relay
Color

light grey
Brand

Country of origin

France
TECHNICAL DETAILS AUXILIARY RELAY ESC 425S
Color light grey
Length 85 mm
Width 35 mm (2HP)
Height 60 mm
Weight 200 g
Control Voltage 230 V
Rated current 25 A
Operating Voltage 400V
Connection cross-section rigid (1-10 mm²) flexible (1-6 mm²)
Switch contacts 4 normally open / NO
Approvals VDE
DIN EN 61095 (VDE 0637-3) DIN VDE 0106-100
Other properties “hum-free” screwing technology
