Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

With this wall-mounted remote control, the mains isolation switch NA 16-1P radio can be controlled directly. It is also location-independent and therefore not tied to a specific prepared room.

Mounting can be done using existing adhesive pad or with screws on smooth surfaces. Kinetic mode of operation, therefore no batteries necessary and maintenance-free.

master switch series

Function based on a radio signal encoded according to the EnOcean standard that is harmless to building biology and is only transmitted when the transmitter in the remote control is actuated.

Delivery time: approx. 1-3 business days

In stock (can be backordered)

SFERICS® field-tested and recommended

 46,40 ( 38,99 excl. VAT)

MASTER SWITCH SERIES

MASTER SWITCH SERIES

Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

The TX-NA16-WAND remote control is the model for the wall. It functions according to the EnOcean standard, i.e. radio technology that is harmless to the environment. The 2-channel wall transmitter works without battery.

With this control for the wall, a comfortable use of the demand switch NA 16-1P radio is directly possible, independent of location and thus not bound to a certain prepared room. The ingenious thing here is the radio technology used for this, called the EnOcean standard. Due to the low transmission energy required, the kinetic energy of the keystroke is sufficient to send a control telegram (data packet or radio signal) coded according to the EnOcean standard to the mains cut-off switch or repeater.

Since this 868 MHz radio signal is only generated for a fraction of a second and only when the remote control is pressed, this remote control, as well as the entire master switch series, is classified as harmless from a building biology point of view.

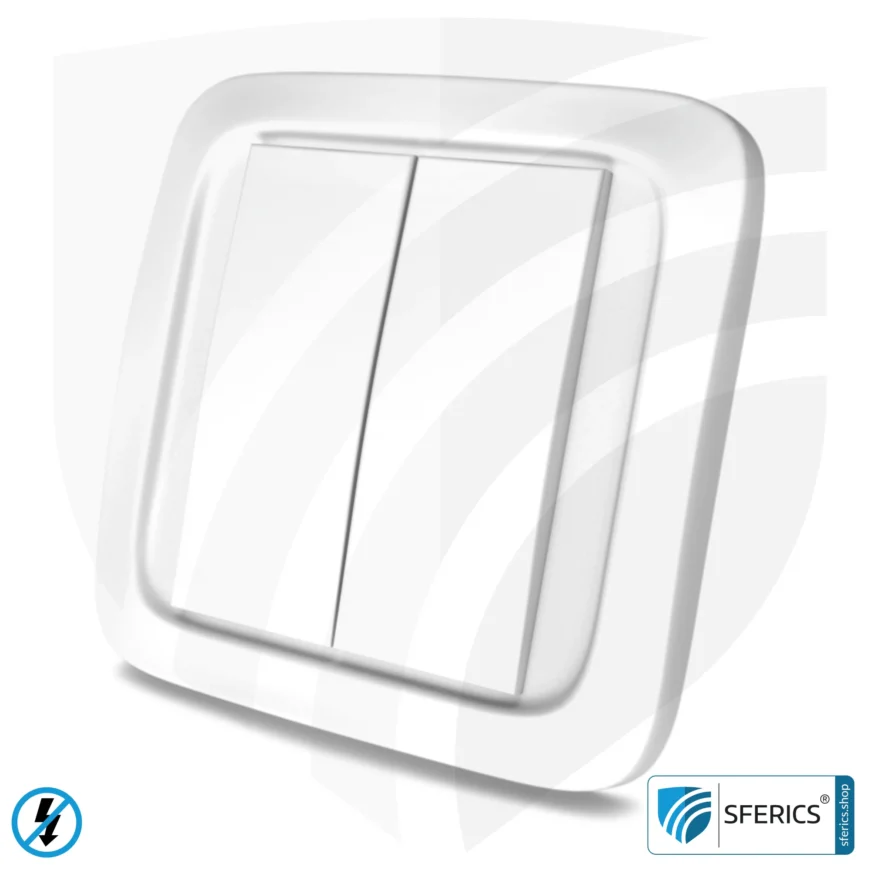

Details of the TX-NA16-WAND wall transmitter

This 2-channel remote control can also switch several basic devices installed in the power distributor, as well as radio-controlled sockets or other EnOcean devices. And due to the battery-free operation, both this remote control for the Hans and the alternative wall transmitter are completely maintenance-free.

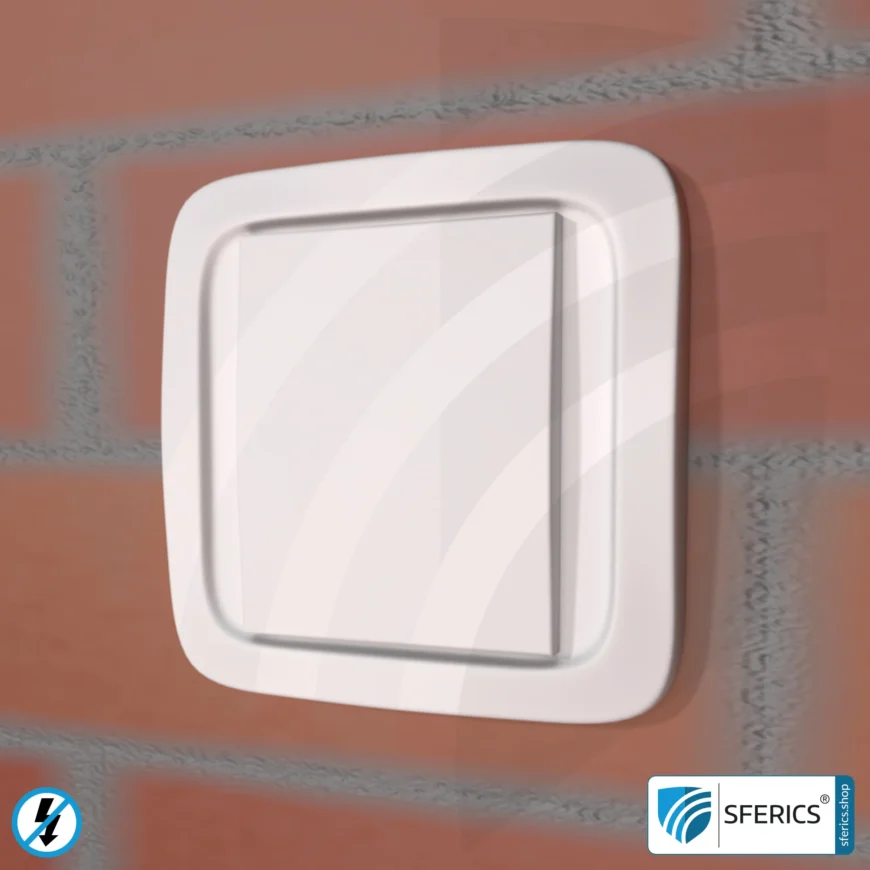

The transmitter can be attached to smooth surfaces by means of an existing adhesive pad or with screws. It is possible, for example, to stick the transmitter on the bedside table or bed front or to screw it to the wall next to the bed. There are hardly any limits to the possible uses of this transmitter.

Alternating electric fields LF radiation Symbol image

Convincing performance of the TX-NA16-WAND remote control at a glance

  • 2-channel wall transmitter for extension of the NA 16-1P radio series field disconnection switch.
  • for controlling one, two or more (in combination with auxiliary relays) monitored circuits/rooms.
  • building-friendly radio technology according to EnOcean standard
  • very robust
  • 1 year warranty
Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

MASTER SWITCH SERIES

Overview of the range and parts of our master switch series

Documentation (.pdf)

Technical data Range overview
Weight 0,2 kg
Dimensions 10,5 × 10,5 × 3 cm
Scope of delivery

remote control, manual

Color

white

Brand

Country of origin

France

.

TECHNICAL DETAILS Wall transmitter TX-NA16-WAND
Colour white
Length 80 mm
Width 80 mm
Height 15 mm
Weight 58 gram
Battery type No battery required (maintenance-free)
Radio module enOcean (868MHz)
Range >30 metres (free field)
Application range Wall transmitter for the mains decoupler of the series:
1. NA16-1P (radio)
Scope of delivery 1. wall transmitter TX-NA16-WAND
2. instruction manual
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
