Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

With this hand-held remote control, the mains isolation switch NA 16-1P radio can be controlled directly. In addition, it is independent of location and therefore not bound to a specific prepared room.

Shatterproof. Splash-proof. Kinetic operation, therefore no batteries necessary and maintenance-free.

master switch series

Function based on a radio signal encoded according to the EnOcean standard that is harmless to building biology and is only transmitted when the transmitter in the remote control is actuated.

Delivery time: approx. 1-3 business days

In stock

SFERICS® field-tested and recommended

 52,40 ( 44,03 excl. VAT)

MASTER SWITCH SERIES

MASTER SWITCH SERIES

Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard. Feedimage.

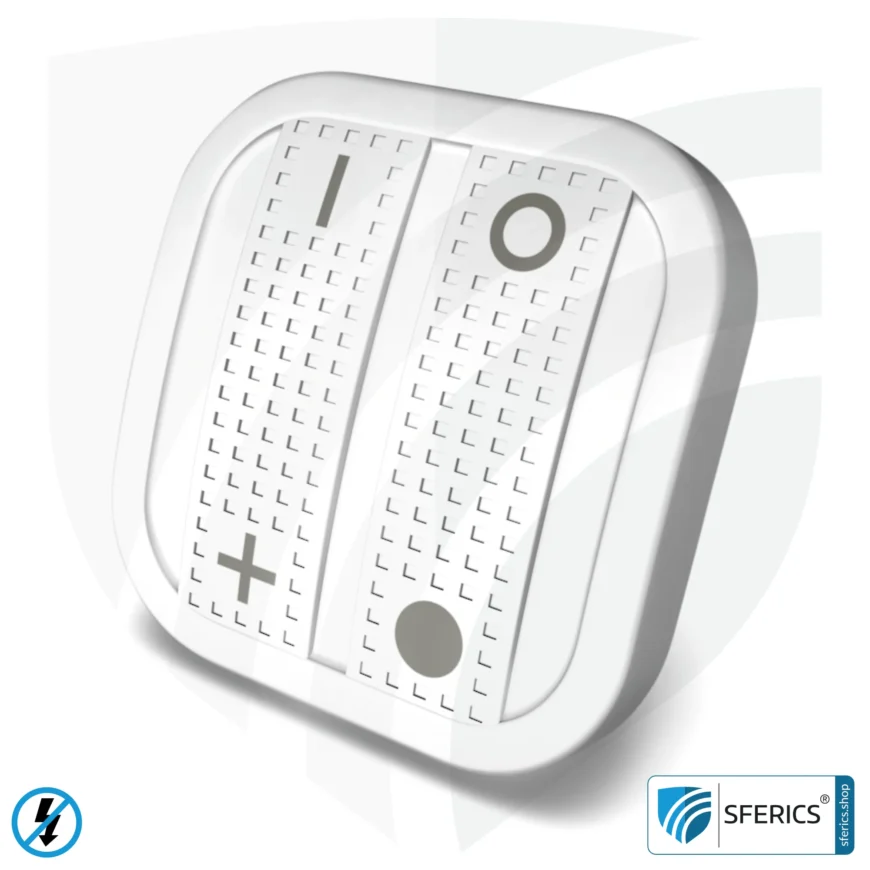

The remote control TX-NA16-HAND is the model for the hand. It functions according to the EnOcean standard, i.e. radio technology that is harmless to the environment. The 2-channel hand-held transmitter works without battery.

With this control for the hand, a comfortable use of the demand switch NA 16-1P radio is directly possible, independent of location and thus not bound to a certain prepared room. The ingenious thing here is the radio technology used for this, called the EnOcean standard. Due to the low transmission energy required, the kinetic energy of the keystroke is sufficient to send a control telegram (data packet or radio signal) coded according to the EnOcean standard to the mains cut-off switch or repeater.

Since this 868 MHz radio signal is only generated for a fraction of a second and only when the remote control is pressed, this remote control, as well as the entire master switch series, is classified as harmless from a building biology point of view.

Details of the TX-NA16-HAND handheld transmitter

This 2-channel remote control can also switch several basic devices installed in the power distributor, as well as radio-controlled sockets or other EnOcean devices. And due to the battery-free operation, both this remote control for the Hans and the alternative wall transmitter are completely maintenance-free.

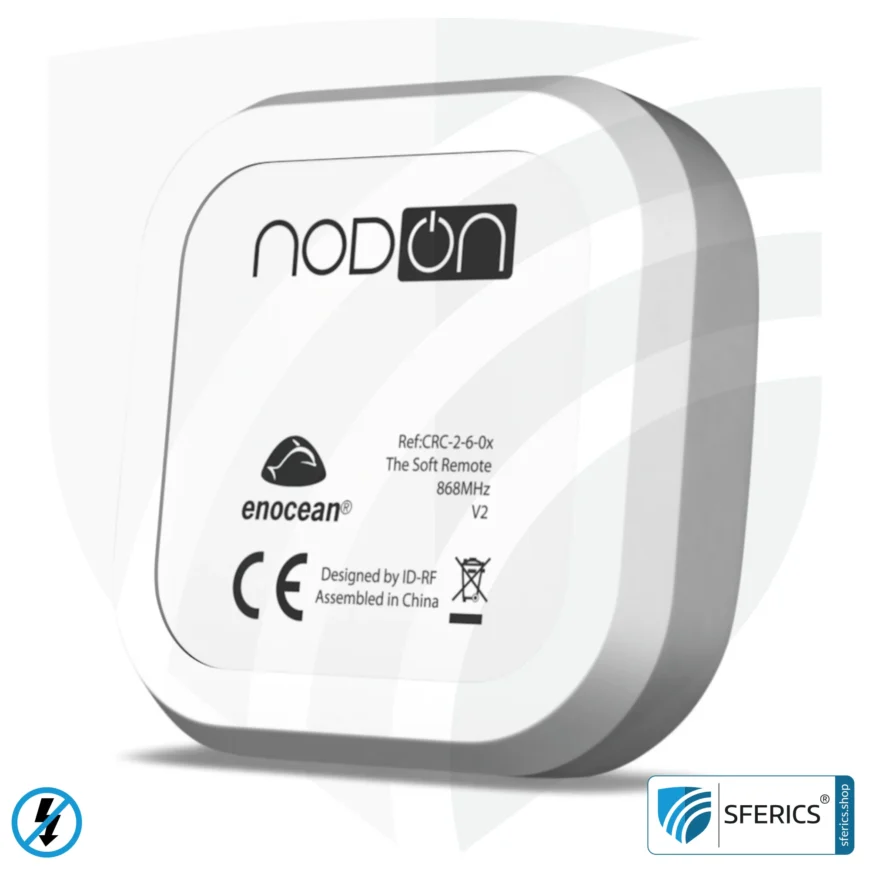

Furthermore, the hand-held transmitter is rubberised and is thus protected against shock (falling down) and splash water in the best possible way in everyday use. The mini magnets integrated on the back also have a practical advantage. This allows the hand-held transmitter to be fixed to all metallic surfaces.

Alternating electric fields LF radiation Symbol image

Convincing performance of the TX-NA16-HAND remote control at a glance

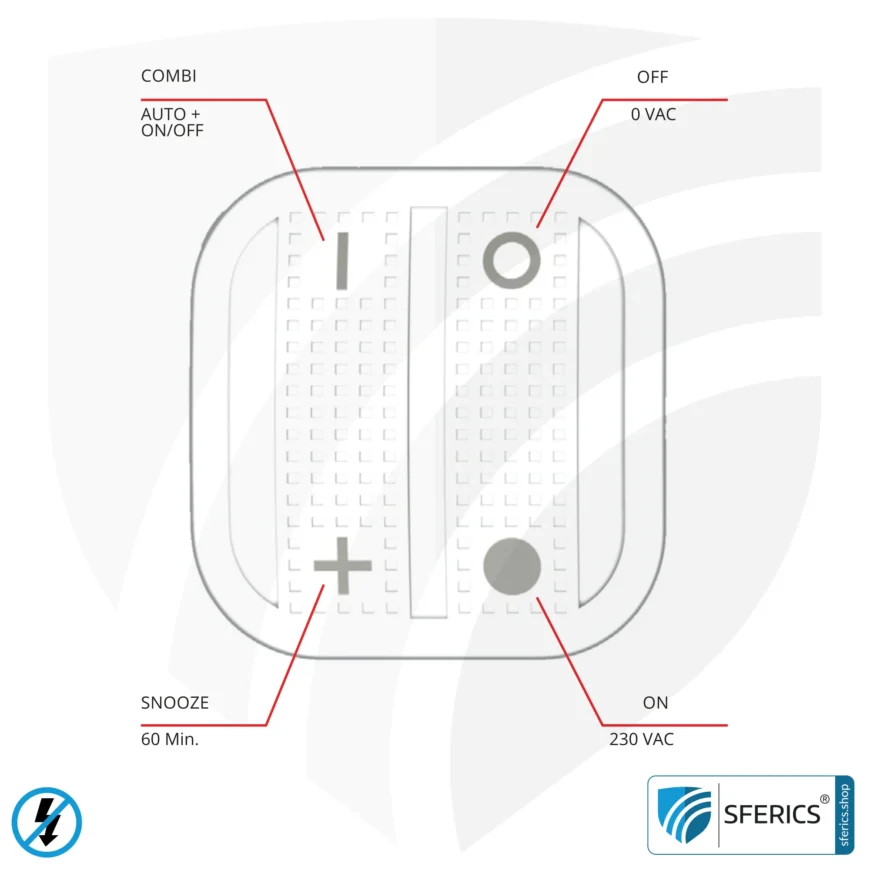

  • 2-channel hand-held transmitter for extending the field disconnector of the NA 16-1P radio series.
  • for controlling one, two or more (in combination with auxiliary relays) monitored circuits/rooms.
  • building-friendly radio technology according to EnOcean standard
  • very robust
  • 1 year warranty
Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

MASTER SWITCH SERIES

Overview of the range and parts of our master switch series

Documentation for the remote control (german / .pdf)

Technical data Manual Range overview
Weight 0,2 kg
Dimensions 10,5 × 10,5 × 3 cm
Scope of delivery

remote control, manual

Color

white

Brand

Country of origin

France

TECHNICAL DETAILS Handheld transmitter TX-NA16-HAND
Colour white
Length 56 mm
Width 56 mm
Height 20 mm
Weight 58 gram
Battery type No battery required (maintenance-free)
Radio module enOcean (868MHz)
Range >30 metres (free field)
Application range Handheld transmitter for the mains decoupler of the series:
1. NA16-1P (radio)
Scope of delivery 1. handheld transmitter TX-NA16-HAND
2. instruction manual
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB).
