LED dimmers | Flush-mounted light controller for dimmable 230 volt LED lamps | Leading edge dimmer as dimmer insert (TRIAC)

This universal dimmer insert is suitable for all dimmable 230 volt LED lamps and LED lights.

For a light experience that is as close to nature as possible with our dimmable LED lamps. “Maximum flicker-free” is not clouded and independent of the respective brightness.

Delivery time: approx. 1-3 working days

In stock

LED dimmers | Flush-mounted light controller for dimmable 230 volt LED lamps | Leading edge dimmer as dimmer insert (TRIAC)
LED dimmers | Flush-mounted light controller for dimmable 230 volt LED lamps | Leading edge dimmer as dimmer insert (TRIAC)

 34,95

SFERICS® field-tested and recommended

 34,95

SKU: nn8103-WD Category: Tags: , , , ,

LED Dimmer | Lichtregler für dimmbare 230 Volt LED Lampen | Phasenanschnittdimmer als Dimmereinsatz

LED dimmers. This flush-mounted light controller is compatible with dimmable 230 volt LED lamps. Universal high-quality dimmer insert.

Dimmable LED lamps require a suitable LED dimmer – this is basically self-explanatory. Biologically high-quality LED light sources, such as the ones we have in our range, set the bar even higher for the LED dimmer. The aim is to produce the maximum flicker-free full spectrum daylight in every brightness level.

In order to simplify the search for such a suitable LED dimmer, we have now also included a compatible model as an accessory in our range. If an existing dimmer does not prove to be compatible, we are now creating an option.

LED dimmer for pleasant light

This universal dimmer insert is suitable for all dimmable 230 volt LED lamps and LED lights.

  • Product type: dimmer insert
  • Leading phase dimmer
  • Input: 230V AC/50Hz
  • Output: 40-215V AC
  • Power: approx. 20 to 500VA
  • Switch: Pressure Toggle

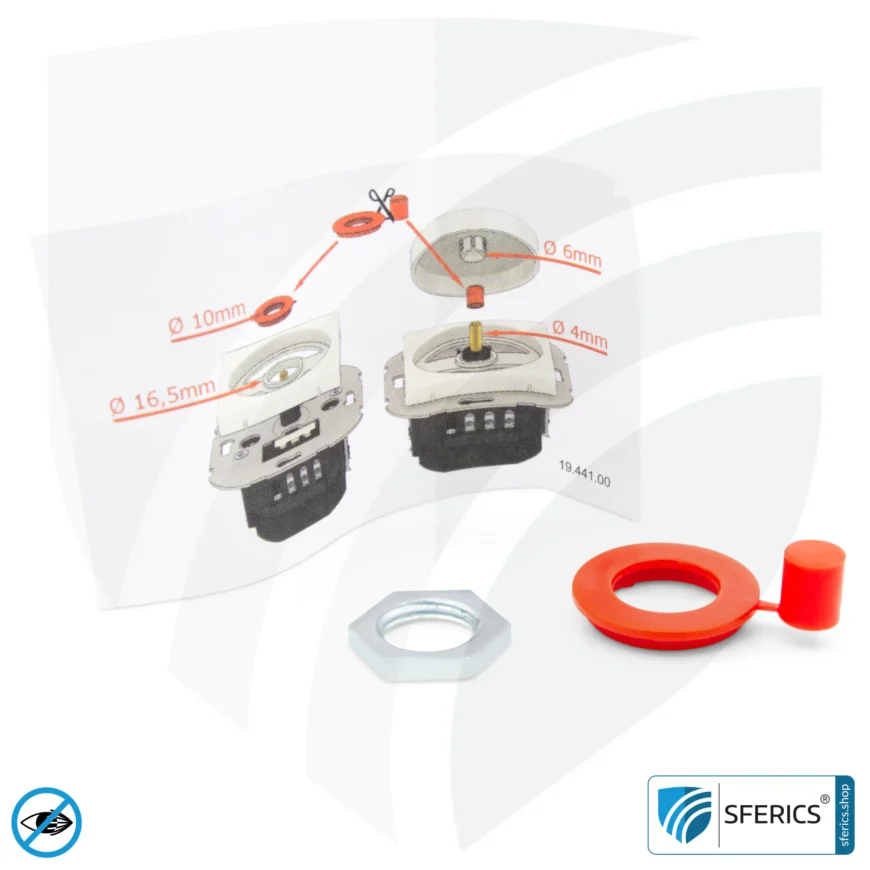

  • Metal axle: 4mm + shaft adapter to 6mm
  • Trimming potentiometer: for setting the basic brightness (basic load setting)
  • Special feature: interference suppressed/thermal protection
  • Protection: with T2A
  • Dimensions: length 77 mm / width 77 mm / depth 33 mm
  • Housing color: black/silver
  • Screw terminals: 1-2.5mm
  • Application example: LED spot GU10 with 6,5 watts

The dimmer insert is delivered without a cover, as covers for rotary dimmers are usually available from every manufacturer for the various systems or series.

Documentation (.pdf)

Manual Technical data sheet
Weight 0,15 kg
Dimensions 7,7 × 7,7 × 3,3 cm
Scope of delivery

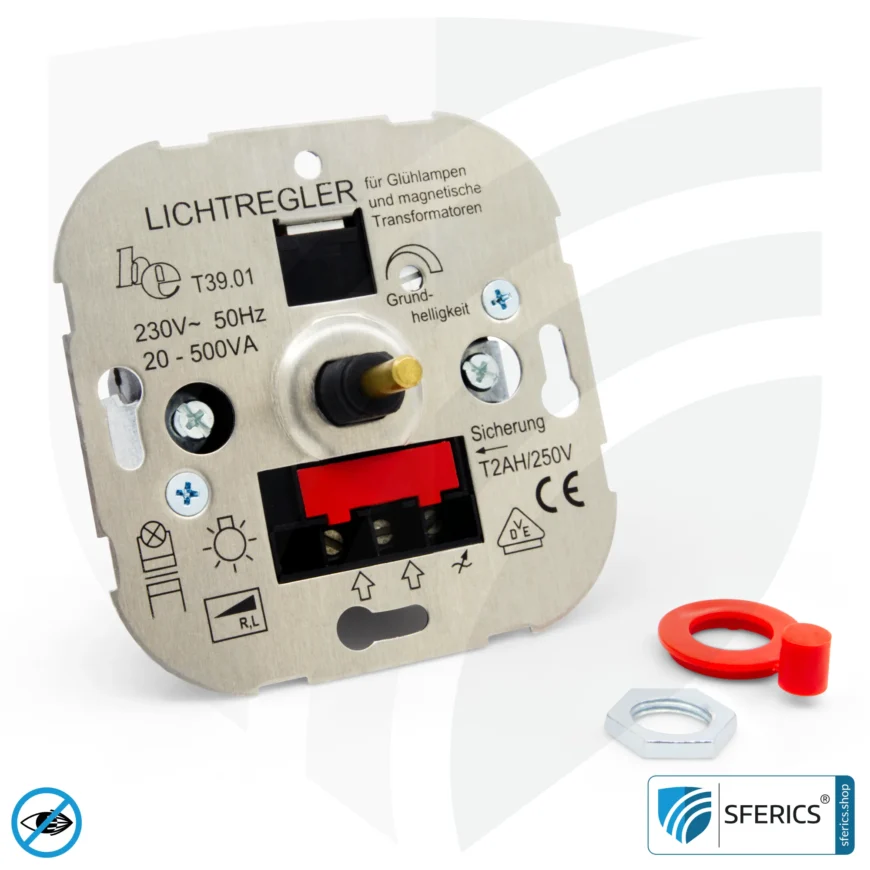

Dimmer, mounting accessories

Brand
