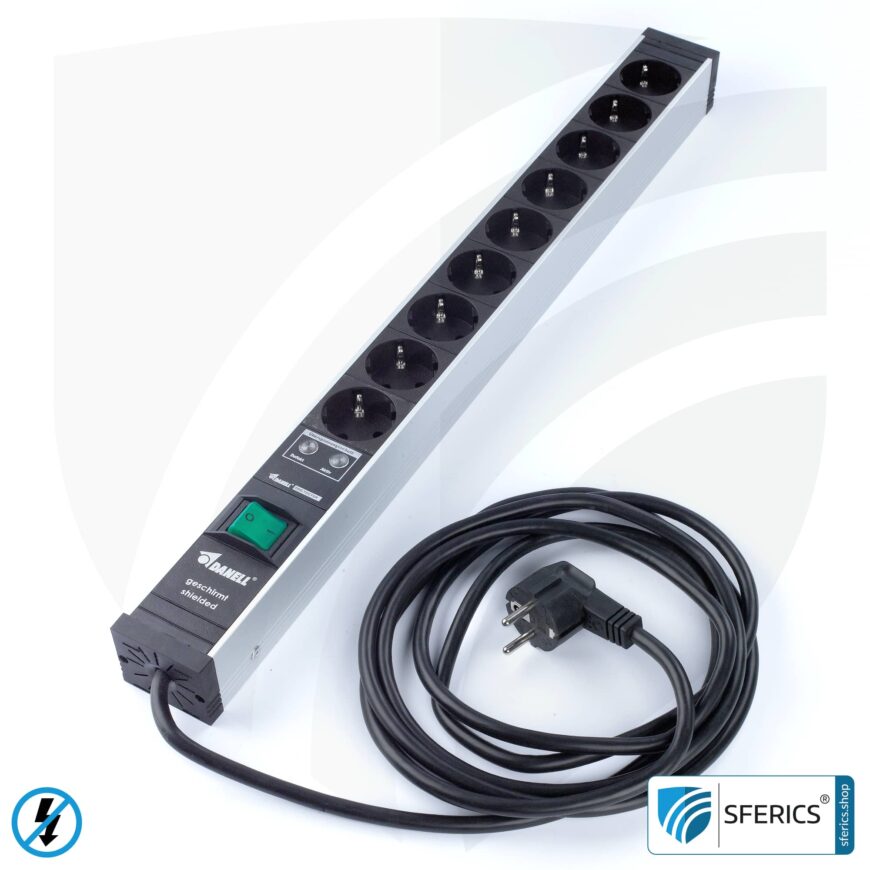

Socket strip 9-way, shielded LF | with on/off switch and overvoltage protection | type EF (Schuko)

Shielded socket strip against LF electric fields. With 9 Schuko inserts, switched with two-pole disconnection. Additional on/off switch on the power strip and with powerful surge protection on all socket inserts.

Alu-black. Very high quality.

Delivery time: approx. 1-3 working days

In stock (can be backordered)

SFERICS® field-tested and recommended

€ 126,90 (€ 106,64 excl. VAT)

SKU: 41-6788 Category: Tags: , , ,

Power strip 9-way, shielded LF | with on/off switch and overvoltage protection | type EF (Schuko)

Socket strip with 9 Schuko inserts with overvoltage protection, shielded NF with on/off switch

9 Schuko inserts switched with two-pole disconnection. High shielding against alternating electric field at mains voltage. Excellent earthing cabling within the socket strip. The PLUS of this 9-way socket strip is the PRO-TECTOR surge protection of all 9 socket inserts.

Particularly in terms of workmanship, this socket strip stands out from the crowd and leaves its commercial competitors far behind. As this power strip is also assembled by hand, the purchase price is higher, but this guarantees the highest consistent quality and long-term use, regardless of whether it is for private or commercial use.

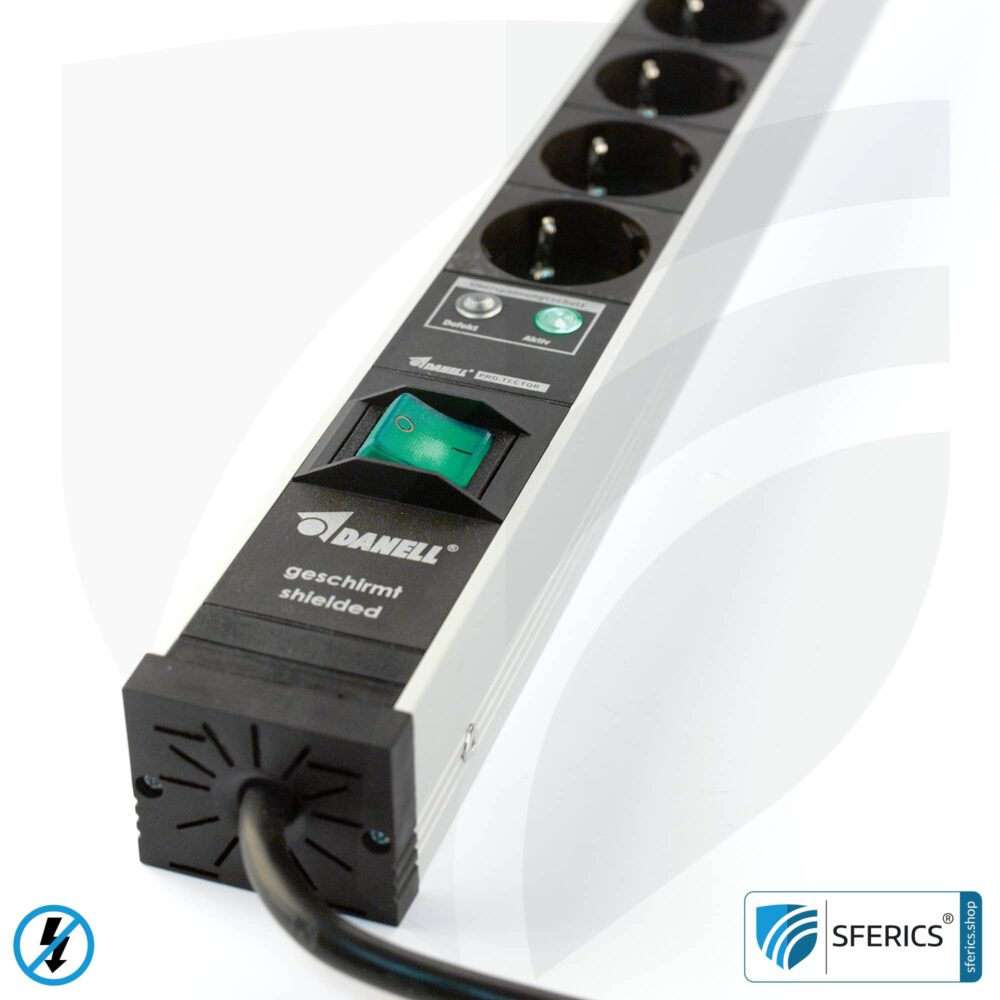

Details of the shielded 9-way socket strip from DANELL

  • Case: Robust, anodized aluminum profile.
  • Bipolar switch with protective frame against unwanted pressing.
  • Black socket inserts, inclined 45°, incl. child protection.
  • Shielded power supply cable: 2 meters, 3 x 1.5 mm².
  • Integrated decoupling filter.
  • Integrated Type II overvoltage protection according to DIN VDE 0110 Part 1.
  • Display for the overvoltage protection function.
  • Supply voltage: 250 V / 50 Hz.
  • Power load: 16 A according to IEC 884.
  • Measurements: 572 x 52 x 45 mm, without cable.
Alternating electric fields LF radiation Symbol image

This shielded 9-socket power strip is usable in the following countries

CEE-7/4 (German system) and CEE-7/7 (French system): Afghanistan, Algeria, Andorra, Austria, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Italy, Korea, Latvia, Lithuania, Luxembourg, Macedonia, Moldova, Monaco, Montenegro, Morocco, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Turkey, Ukraine

Mounting bracket | Fixing, adjustment and mounting of shielded socket strips from DANELLMounting bracket | Fixing, adjustment and mounting of shielded socket strips from DANELL

Mounting bracket | Fixing, adjustment and mounting of shielded socket strips from DANELL

€ 11,20 (€ 9,41 excl. VAT)
Add to basket

Documentation(.pdf)

Download data sheet Download supplementary sheet Download data sheet surge protection
Weight 2 kg
Dimensions 57,2 × 5,2 × 4,5 cm
Scope of delivery

Power strip, manual
Brand

Country of origin

Germany

.

Opening unit pc. (piece)
Colour silver (anodised aluminium profile) /black
Cable colour black
Switch colour green / illuminated
length 572 mm
Width 52 mm
Height 45 mm
Requirement class Class D
Operating voltage 230 VAC
Load Operating voltage max. 250VAC / 50Hz – 10A according to IEC 884
Response time <25 ns
Optical display green -> protection OK
yellow -> protection defective
Test basis single, 100%, CE, TCO’99 (MPR II, DIN prEN 50279)
Screen attenuation max. in dB (earth-dependent)
Screen attenuation max. in dB > 99 % (earth-dependent)
Processing Very high-quality and sturdily designed shielded socket strip.
Rated voltage 300 VAC
Plug inserts 6 x 45° oblique recessed, incl. child safety lock (4 inserts can be switched off, 2 inserts unswitched – continuous voltage)
Decoupling filter integrated – prevents coupling of alternating electric fields onto two-pole Euro mains cables
Cable insulation Polyvinyl chloride plastic-coated aluminium tape, two-wire Cu 1.0 mm²
Cable length 2 metres – (±10%)
Control switch Four socket inserts (black) 2-pole (L1+N) can be switched off, 2 socket inserts unswitched
Nominal leakage current 6500 A
Cross-section 3 x 1.5 mm² (shielded)
Protection class 1 (with protective earth yellow/green)
Protection level <1000 V at 6500 A (8/20 µs)
Overvoltage protection PRO-TECTOR (All socket outlets)
Certification Class D / ÖVE Sn60, Class E
Important information The socket strip can be used directly without prior electrical engineering training and without an electrician.
Application 1. bedrooms and children’s rooms
2. living rooms
3. offices / PC workstations
4. guest rooms
Scope of delivery 1. power strip (STL6PC) incl. cable
Other notes 1. The surge protector provides protection for all connected devices. 2. the decoupling filter prevents the coupling of alternating electric fields onto two-pole Euro mains cables 3. the angled inserts also allow the plugging in of e.g. plug-in power supply units and similar. 4. the child safety lock reliably prevents the insertion of foreign bodies thus this power strip is also ideally suited for children’s rooms.
Warranty The warranty for this product when properly handled is the usual 2 years (§434 BGB + §446 BGB)
