GCL grounding set | for MCL61 magnetic field shielding film

This GCL grounding set is used with the MCL61 magnetic field shielding film. With it, it is easy to ground the MCL61 shielding film for electrical alternating fields.

Delivery time: approx. 1-3 business days

In stock

GCL grounding set | for MCL61 magnetic field shielding film
GCL grounding set | for MCL61 magnetic field shielding film

 9,90

SFERICS® field-tested and recommended

 9,90

SKU: GCL Category: Tags: , , ,

GCL grounding set | for MCL61 magnetic field shielding film

The GCL grounding set allows the effective grounding of the MCL61 magnetic field shielding film.

The MCL61 shielding film is effective against low-frequency electric alternating fields from power cables and fuse boxes. However, because the edges can cut like a sharp knife, they are laminated on both sides with polyester. The disadvantage caused by this safety precaution is that the surface of the MCL61 shielding film is electrically isolated because of this and allows a “delay” of existing electric fields.

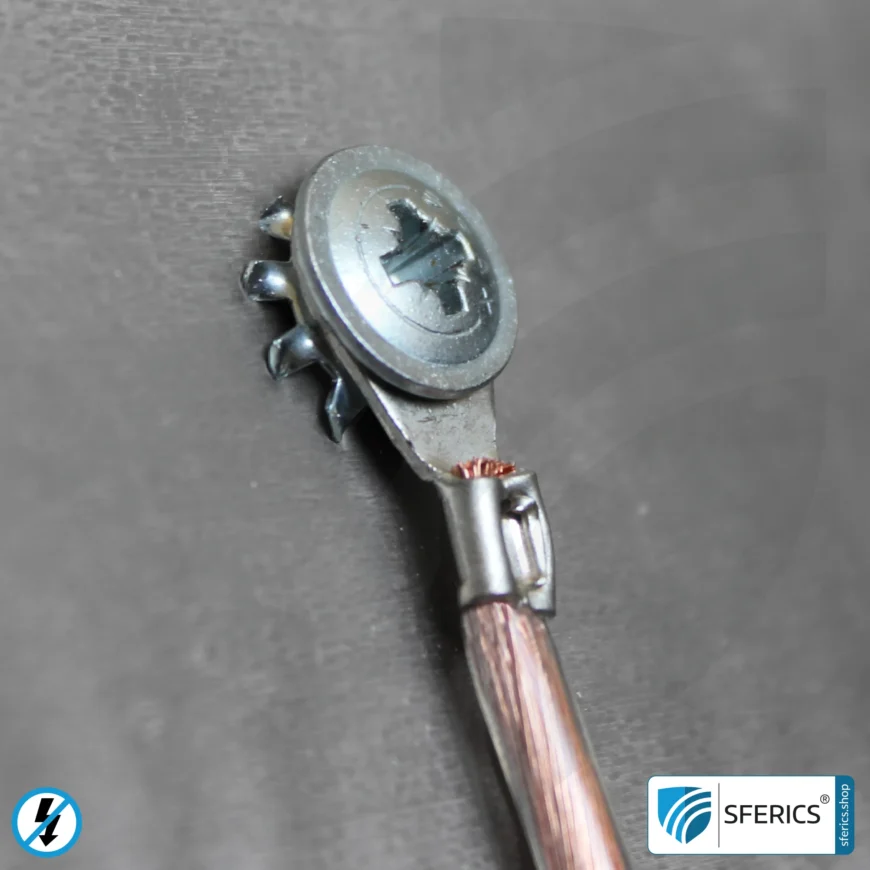

With this GCL grounding set, this con is effectively eliminated. The lock washers pierce the polyester film when screwing in the wire lugs and establish an electric contact with the shielding film’s cobalt alloy layer. Grounding the shielding film is now perfectly possible.

The GCL grounding set contains everything needed to effectively ground 5-10 strips of the MCL61 mu-metal shielding film.

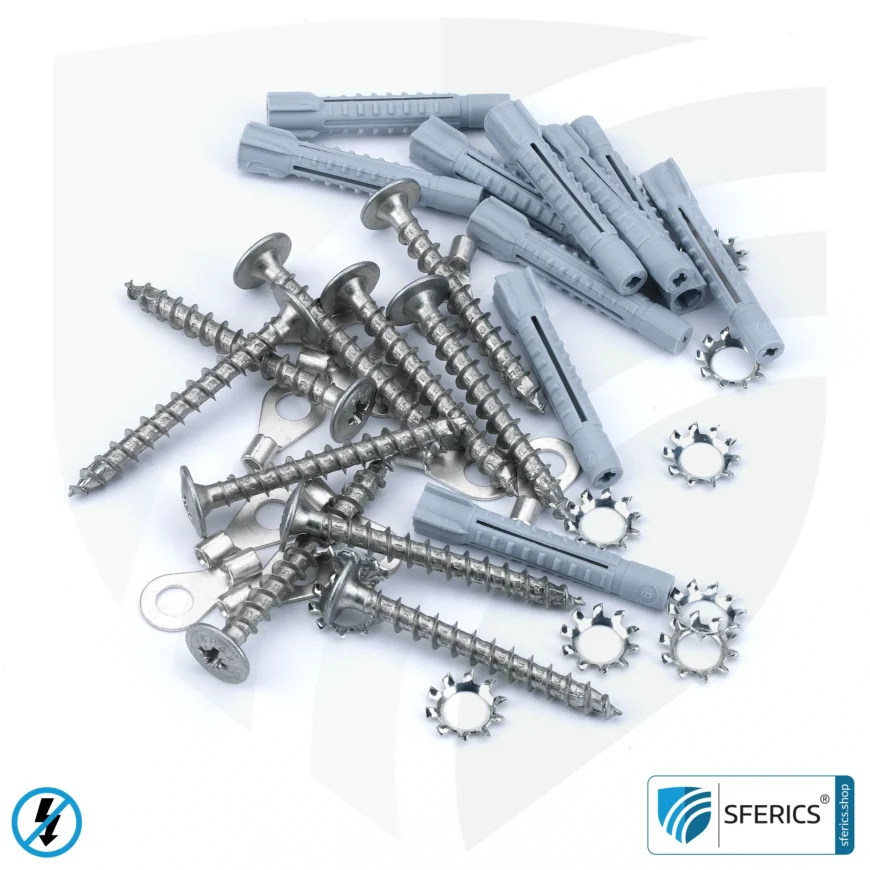

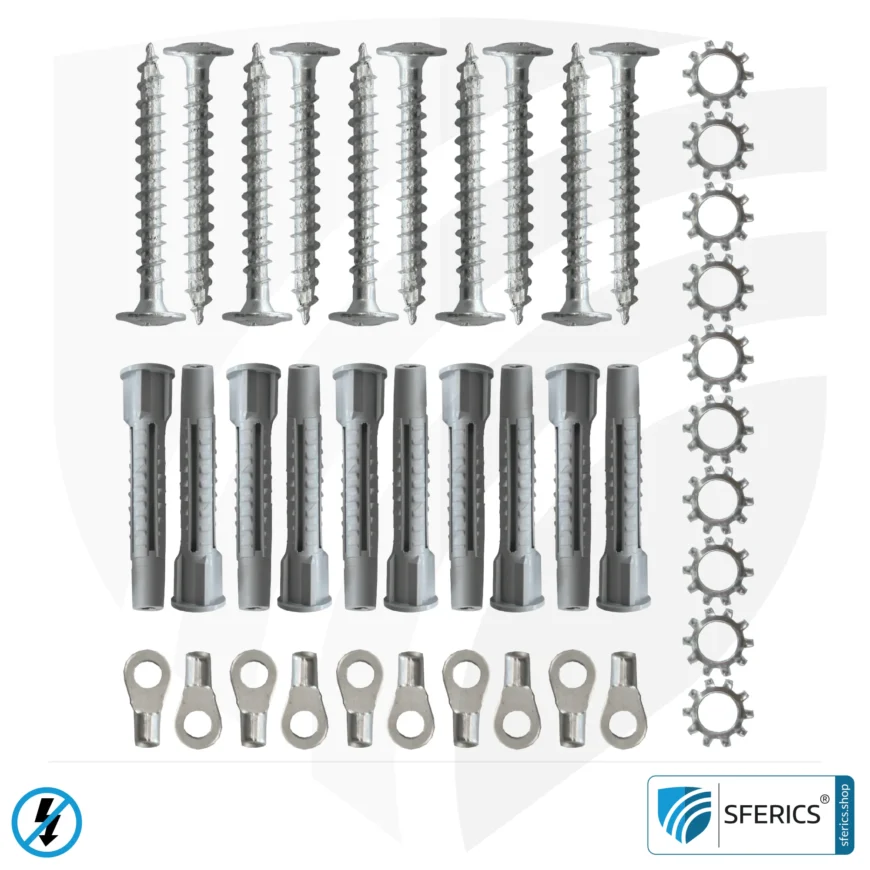

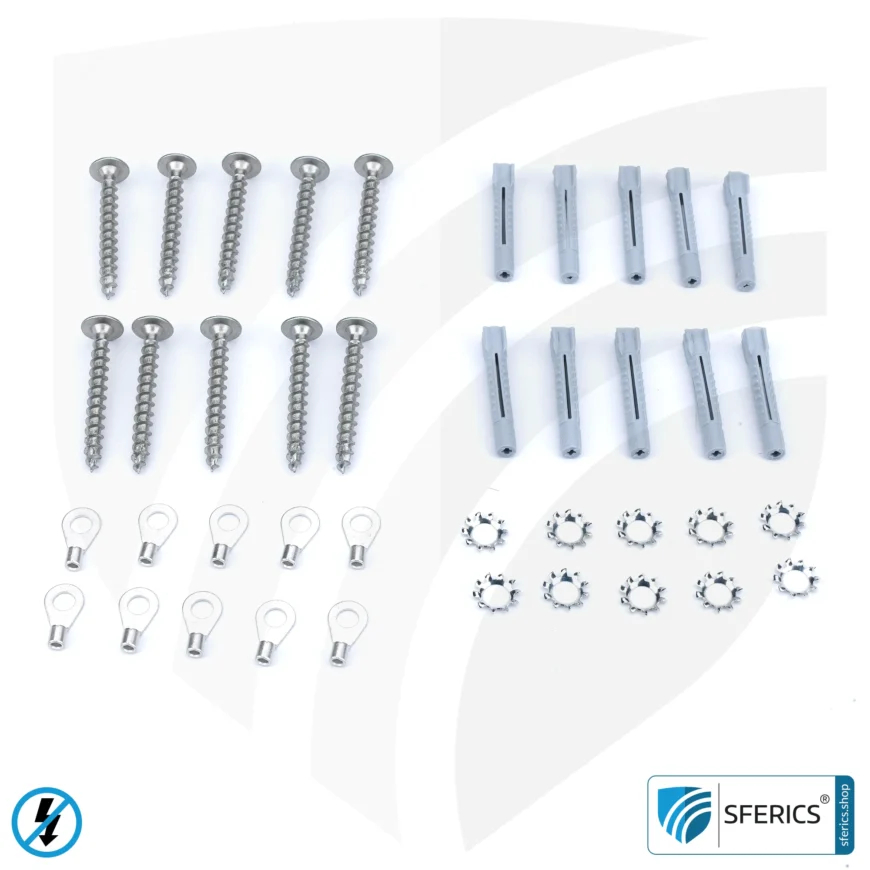

Scope of delivery of the GCL grounding set

  • 10 screws
  • 10 dowels
  • 10 lock washers
  • 10 cable lugs for 1.5-2.5 mm² wires

Documentation on grounding set GCL (.pdf)

Technical data sheet Technical data grounding
Weight 0,3 kg
Dimensions 100 × 61 × 0,01 cm
Scope of delivery

10x cable lugs for 1.5-2.5 mm² wires, 10x dowels, 10x lock washers, 10x screws

Brand

Country of origin

Germany
