Shielded in-wall box, deep | 61mm depth | flush-mounted installation box, as junction box or switch box

Shielded in-wall box, deep | 61 mm depth | flush-mounted installation box, as junction box or switch box | halogen free

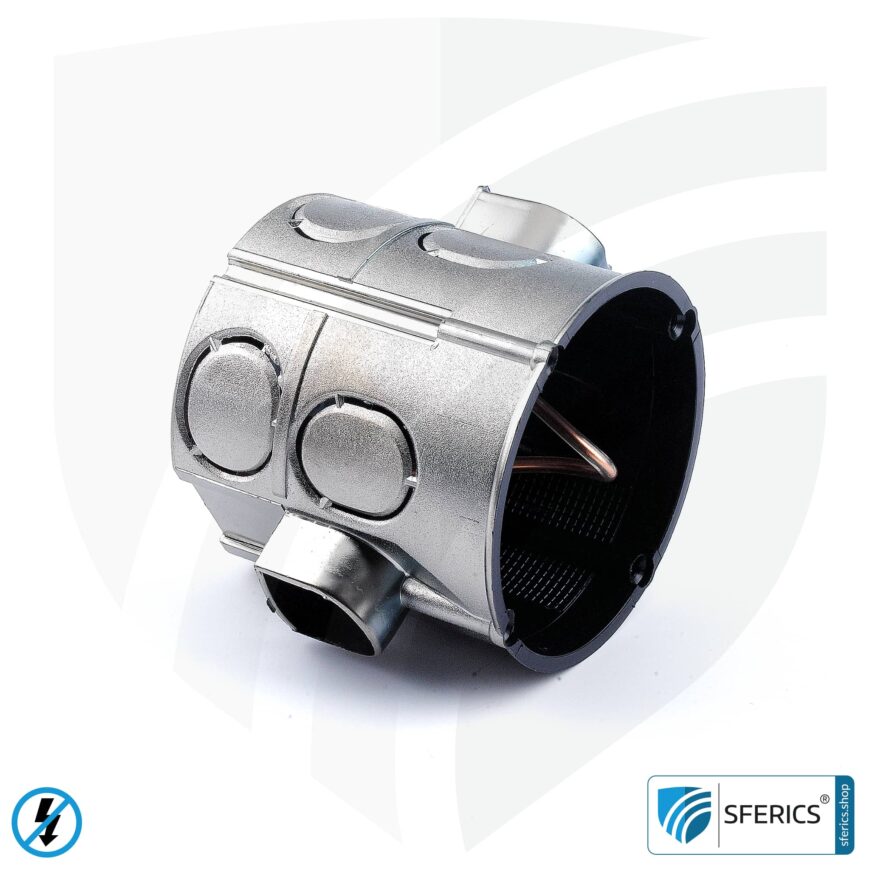

Shielded in-wall box, deep, for the reduction of low-frequency alternating electric fields. High-quality installation box with 61 mm depth for flush mounting as junction box or switch box.

Delivery time: approx. 1-3 working days

Savings on bigger quantities
from 20 pieces	from 50 pieces	from 100 pieces
€ 7,90	€ 7,70	€ 7,60

In stock

€ 8,10 (€ 6,81 excl. VAT)

SKU: 41-4426-WD Category: Installation boxes Tags: 61 mm, In-wall box, installation box, Junction box, switch box

Shielded in-wall box with 61 mm depth. Ideal as junction box or switch box for the installation of shielded electrical cables under plaster. For shielded rooms according to Faraday to reduce LF electric fields.

This shielded installation box is used to reduce low-frequency alternating electric fields. This is an ideal supplement to the wall shielded by means of shielding paint in order to also close the “hole socket” in the Farraday cage in the best possible way.

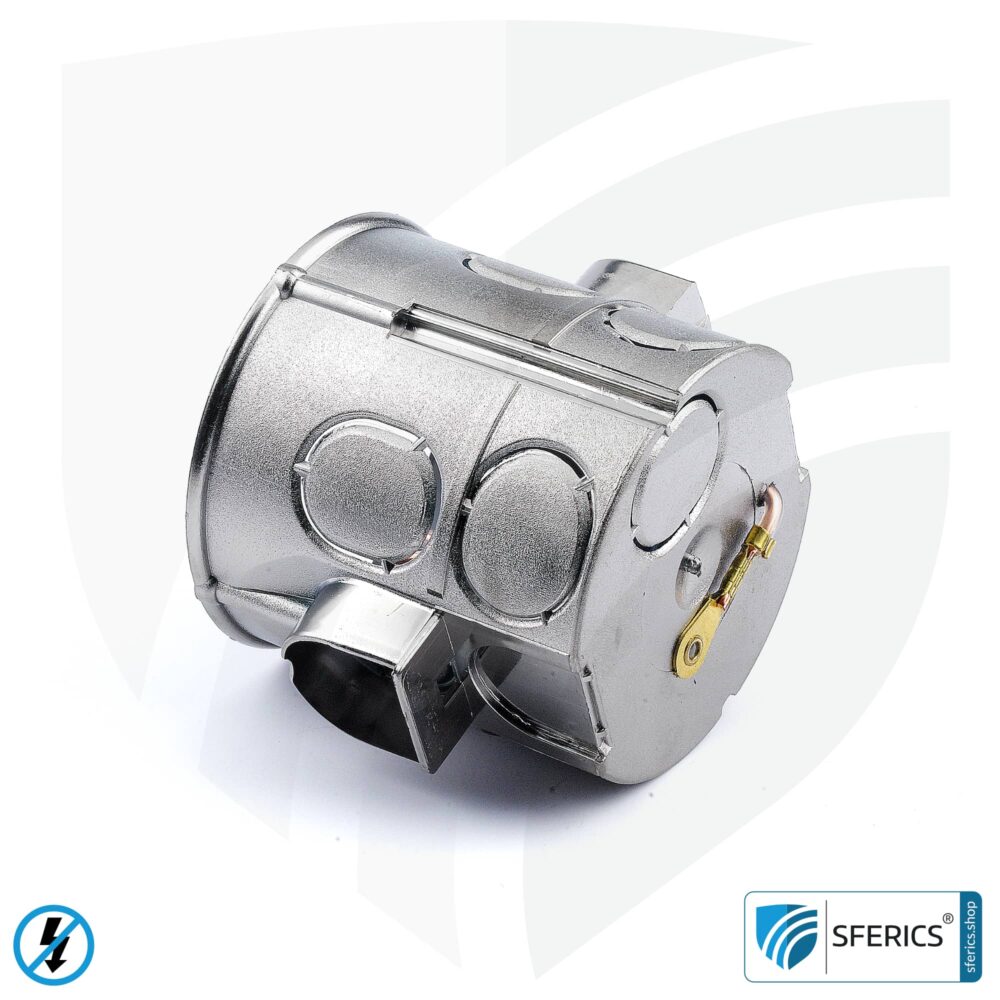

Shielded with metal vacuum coating. Potential connection cable 1,5 mm² rigid. With snap-in socket, can be used as junction and switch box for plastering. Standard mounting distances.

Flush-mounted electrical installation (symbol image)

General information about the shielded in-wall box, deep, 61 mm

The coating of the brick or hollow wall boxes is electrically conductive and are perfectly suited to fully limiting alternating fields. The focus of this shielded installation box is its use in the bedroom, hospitals, computer rooms, and other sensitive areas to limit alternating fields.

Special conductive metal vacuum coating for shielding against electrical alternating fields (in accordance with the EU’s 2002/95/EG guidelines)
Approved screw spacing
Connecting wire 1,5 mm² (Copper, massive, rigid, transparent insulation), quick installation in
Plug terminals (push-wire connectors)
Installation of the insertions with screws and stretches
Standard screw spacing of 60mm

Circuit diagram shielded junction box

Details about the shielded in-wall box, 61 mm depth

Snap-lock coupling (square) with a standard distance of 71 mm
Break out opening up to size 16
Polystyrene (PS)
Temperature range during processing -5° C to max. + 70° C (material breaks at too low temperatures)

Documentation (.pdf)

Technical details Details on building biology electrical installations Electrical Installations Instruction Booklet

Other available installation boxes

Shielded in-wall box, flat | 41 mm depth | flush-mounted installation box, as junction box or switch box | halogen free

€ 7,10 (€ 5,97 excl. VAT)

Add to basket

Shielded cavity wall box, deep | 59 mm | installation box in drywall, as a junction box or switch box | halogen free

€ 10,70 (€ 8,99 excl. VAT)

Add to basket

Shielded cavity wall box, flat | 47 mm | installation box in drywall, as a junction box or switch box | halogen free

€ 9,40 (€ 7,90 excl. VAT)

Add to basket

Shielded junction box | 53 mm | installation box for drywall and flush-mounted installation | halogen free

€ 35,30 (€ 29,66 excl. VAT)

Add to basket

Shielded wall lights outlet box | 45 mm | installation box for drywall and flush-mounted installation | halogen free

€ 13,20 (€ 11,09 excl. VAT)

Add to basket

Optimal, shielded and halogen-free installation cables

(N)HXMH(St)-J 3x 1,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4303

from: € 78,00

Select options

(N)HXMH(St)-J 3x 2,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4347

from: € 97,00

Select options

(N)HXMH(St)-J 5x 1,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4325

from: € 105,00

Select options

(N)HXMH(St)-J 5x 2,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4360

from: € 137,00

Select options

Insulating tube | for the bare drain wire from the shielded installation cable

€ 10,20 (€ 8,57 excl. VAT)

Add to basket

Recommendation: WAGO junction box terminals

WAGO compact splicing connector, series 221 | model 221-412 | for 2 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 0,65

Select options

WAGO compact splicing connector, series 221 | model 221-413 | for 3 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 0,81

Select options

WAGO compact splicing connector, series 221 | model 221-415 | for 5 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 1,79

Select options

WAGO compact splicing connector | model 2273-208 | for 8 solid conductors | 50 pieces | alternative to classic connector blocks

Accessories

€ 27,99 (€ 23,52 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-202 | for 2 solid conductors | alternative to classic connector blocks

Accessories

€ 21,99 (€ 18,48 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-203 | for 3 solid conductors | alternative to classic connector blocks

Accessories

€ 19,99 (€ 16,80 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-204 | for 4 solid conductors | 100 pieces | alternative to classic connector blocks

Accessories

€ 48,99 (€ 41,17 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-205 | for 5 solid conductors | 100 pieces | alternative to classic connector blocks

Accessories

€ 27,99 (€ 23,52 excl. VAT)

Add to basket

Weight	0,05 kg
Dimensions	8 × 6,5 × 6,5 cm
Brand	DANELL
Country of origin	Germany
GTIN	4260004784429

Description	Shielded in-wall box, deep
Opening unit	Pc. (piece)
Colour	black / silver
Depth	61mm (deep version)
Composition	Plastic (PS)
Screen attenuation max. in dB	(earth-dependent)
Screen attenuation max. in dB	> 99 % (earth-dependent)
Grounding/LF shielding	Further information on incorporating the box into the functional equipotential bonding can be found in the flyer “Functional equipotential bonding” (cooperation project of the Danell company, the Biologa company and Mr. Martin Schauer (publicly appointed and sworn expert in the electrical engineering trade and for electric, magnetic and electromagnetic fields by the Chamber of Crafts for Lower Franconia) ->Download flyer Funktionspotentialausgleich.de Further information can also be found at www.funktionspotentialausgleich.de The book Field Reduction in Buildings, published by DE-Verlag, also contains important information on the correct use of Biologa products -> Field Reduction in Buildings – Martin Schauer – ISBN:978-3-8101-0315-4
Diameter	Ø 60 mm
Shield wire	Cu, 1.5 mm², solid (transparent)
Shielding	Special vacuum metal coating
Screw spacing	60 mm
Spigot spacing	71 mm
Spigot details	Breakout opening up to size 16
Application	1. bedrooms and children’s rooms 2. offices / PC workstations 3. guest rooms 4. hospitals etc.
Example application	Preferably to be used in areas where a shielded electrical installation is planned. The box reduces additional alternating fields where the shielded cable ends! Biologa recommends the installation of shielded boxes in addition to shielded cables as a supplementary shielding measure.
Scope of delivery	1. box 2. installation instructions
Warranty	The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
