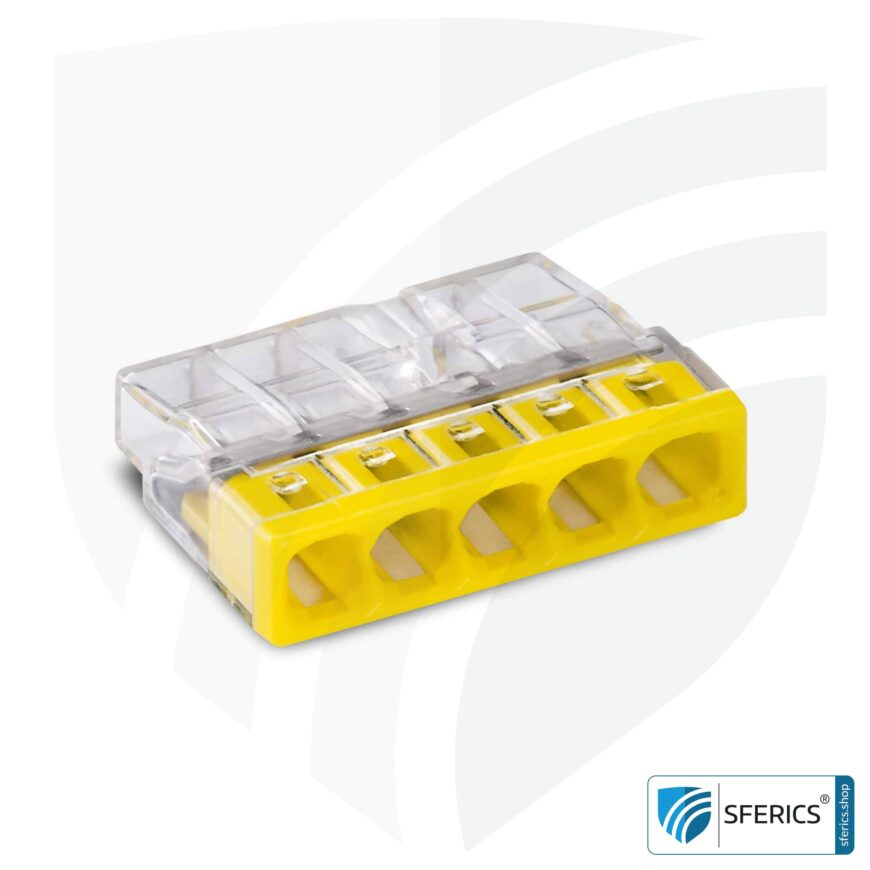

WAGO compact splicing connector | model 2273-205 | for 5 solid conductors | 100 pieces | alternative to classic connector blocks

Compact splicing connectors from WAGO have completely convinced us. Due to their easy handling and compact design, they are simply ideal for use within our shielded installation boxes and for connecting our shielded lamps for fixed installation.

  • Easy handling: push-in
  • 5-conductor connection terminal
  • Convenient conductor connection from 0.5mm² to 2.5mm²

Delivery time: approx. 1-3 working days

In stock

SFERICS® field-tested and recommended

 27,99 ( 23,52 excl. VAT)

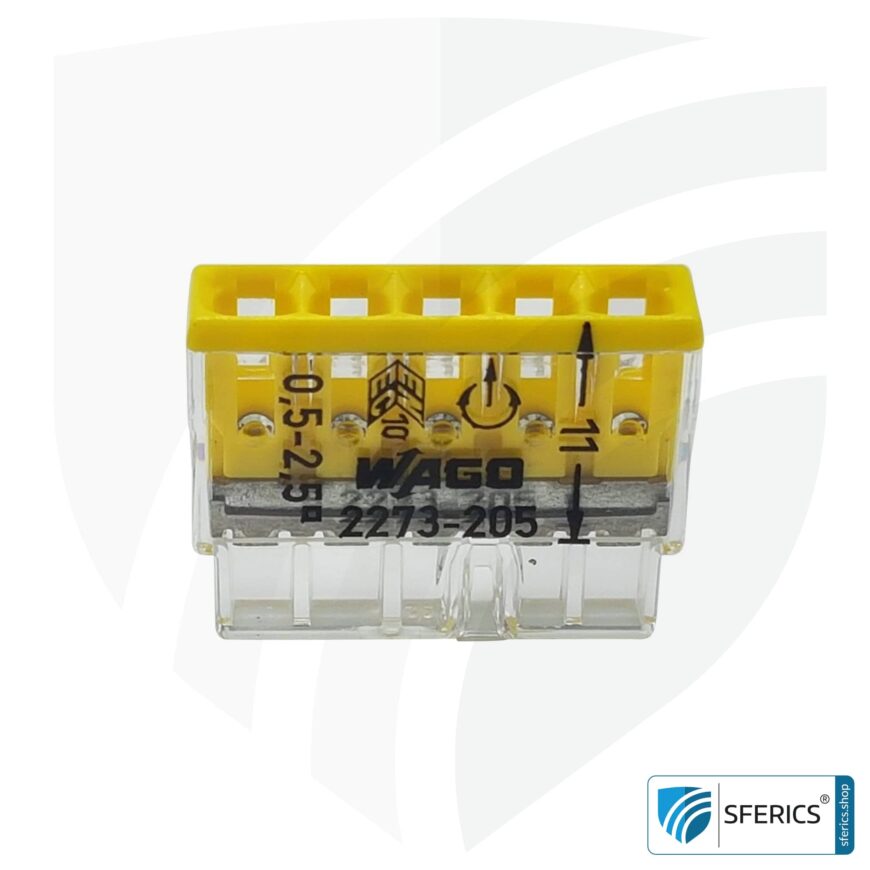

WAGO compact splicing connector | model 2273-205 | for 5 solid conductors | 100 pieces | alternative to classic connector blocks

WAGO compact splicing connector, model 2273-205, for 5 conductors. Suitable for connecting the drain wire of the shielded electrical cable to the shielded flush-mounted box or cavity wall box. Due to the five entrances, however, the entire electrical installation is the main focus here.

The shielded flush-mounted box or cavity wall box contains a potential connection line. This line must be connected to the two-wire of the shielded electric cable or sheathed cable and this splicing connector (as well as the 2-conductor variant) can be used for this purpose. A simple, fast and effective solution.

Basically, the 2273-20x model series of WAGO compact splicing connector can be optimally used for all electrical wiring. Strictly speaking, the classic connector block with screw fixing has now had its day. The level of technological development in this area is now too great: plug in a solid conductor cable (“push it in”) – and that’s it! Fiddly handling with a screwdriver is history. Thanks to this simplicity, WAGO compact splicing connectors are ideal and predestined for all cable connections within the house wiring and also for connecting our shielded ceilings and wall lights.

Made in Germany

That’s how you connect today!

  • Easy handling: push in
  • 5-conductor splicing connector (also available as 2-, 3-, 4- and 8-conductor)
  • Installation of solid conductors
  • Convenient conductor connection from 0.5mm² to 2.5mm²
  •
Significant time saving

ACTION NOTES

CONNECT LADDER

APPLICATION

COMPACT SPLICING CONNECTOR

WAGO Compact 2273-20x series

The connector can be used for up to 8 (depending on the model) solid conductors 0.5 … 2.5mm² – and without tools!

That’s how it’s done:

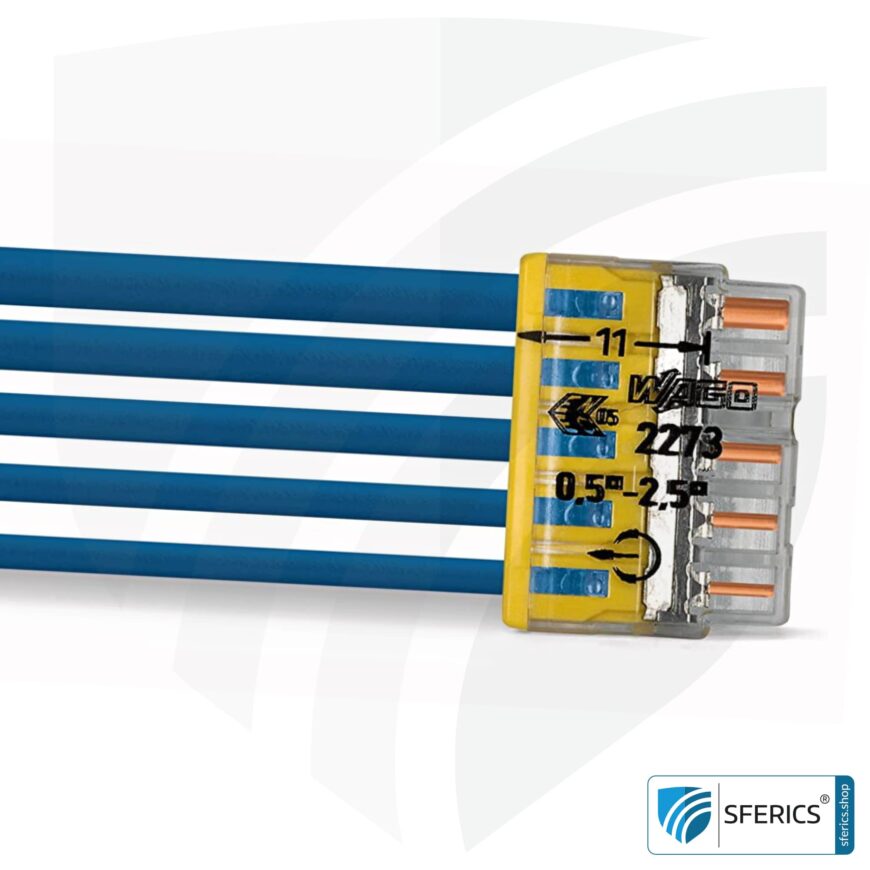

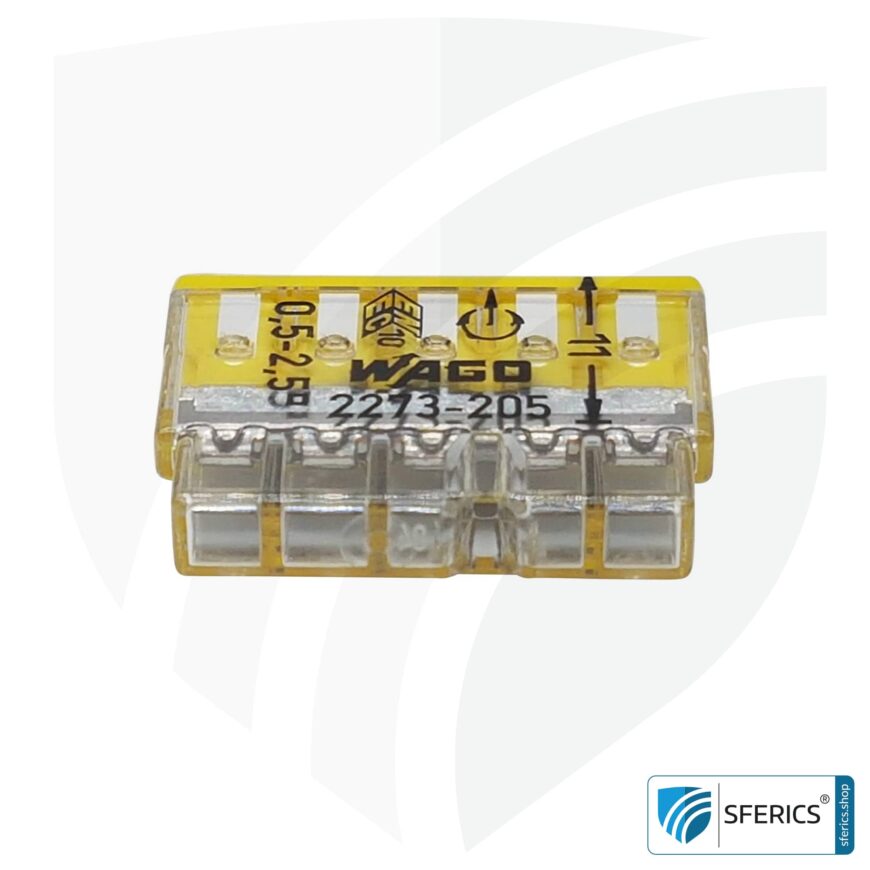

  1. Strip solid conductor to 11 mm / 0.43 inch (see marking).
  2. The transparent housing shows if conductors are fully inserted; within the colored base, a clear port shows if the conductor’s strip length is correct.
    Conductors are correctly stripped if the clear port shows no bare conductor on the unprinted connector side. Picture shows center conductor with exceeded strip length.
  3. Termination: Insert stripped solid conductor until it hits backstop.

Removal:
Hold conductor to be removed and twist alternately left and right while pulling the connector.

Testing:
Testing via test port opposite to conductor entry.

Documentations and downloads

Technical data sheet Connecting and grounding shielded cables and boxes

Our WAGO range at a glance

from:  0,65
This product has multiple variants. The options may be chosen on the product page
from:  0,81
This product has multiple variants. The options may be chosen on the product page
from:  1,79
This product has multiple variants. The options may be chosen on the product page
 27,99 ( 23,52 excl. VAT)
 21,99 ( 18,48 excl. VAT)
 19,99 ( 16,80 excl. VAT)
 48,99 ( 41,17 excl. VAT)
 27,99 ( 23,52 excl. VAT)
Weight 0,15 kg
Dimensions 11 × 8 × 4 cm
Scope of delivery

100 pieces

Color

transparent, yellow

Single clamp

Width: 22 mm
Height: 5.8 mm
Depth: 16.7 mm
Weight: 1.6 g

Brand

GTIN

4050821027874

Country of origin

Germany

Q & A

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your answer. Please report it to the website administrator. Additional information:

Electrical data
Ratings per IEC/EN 60664-1
Ratings per EN 60664-1
Nominal voltage (II/2) 450 V
Rated surge voltage (II/2) 4 kV
Rated current 24 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
Connection data
Connection technology PUSH WIRE®
Actuation type Push-In
Connectable conductor materials Copper, Aluminum
Nominal cross-section 4 mm²
Solid conductor 0.5 … 2.5mm² / 24 … 12 AWG
Strip length 11 mm / 0.43 inch
Total number of connection points 5
Total number of potentials 1
Wiring type Side-entry wiring
