Shielded junction box | 53 mm | installation box for drywall and flush-mounted installation | halogen free

Shielded junction boxes for reducing low-frequency alternating electrical fields. This high-quality connection box with a depth of 53 mm is ideally suited for both drywall and concealed installation.

Delivery time: approx. 1-3 working days

In stock (can be backordered)

SFERICS® field-tested and recommended

€ 35,30 (€ 29,66 excl. VAT)

SKU: 41-4505-WD Category: Tags: , , , , , , ,

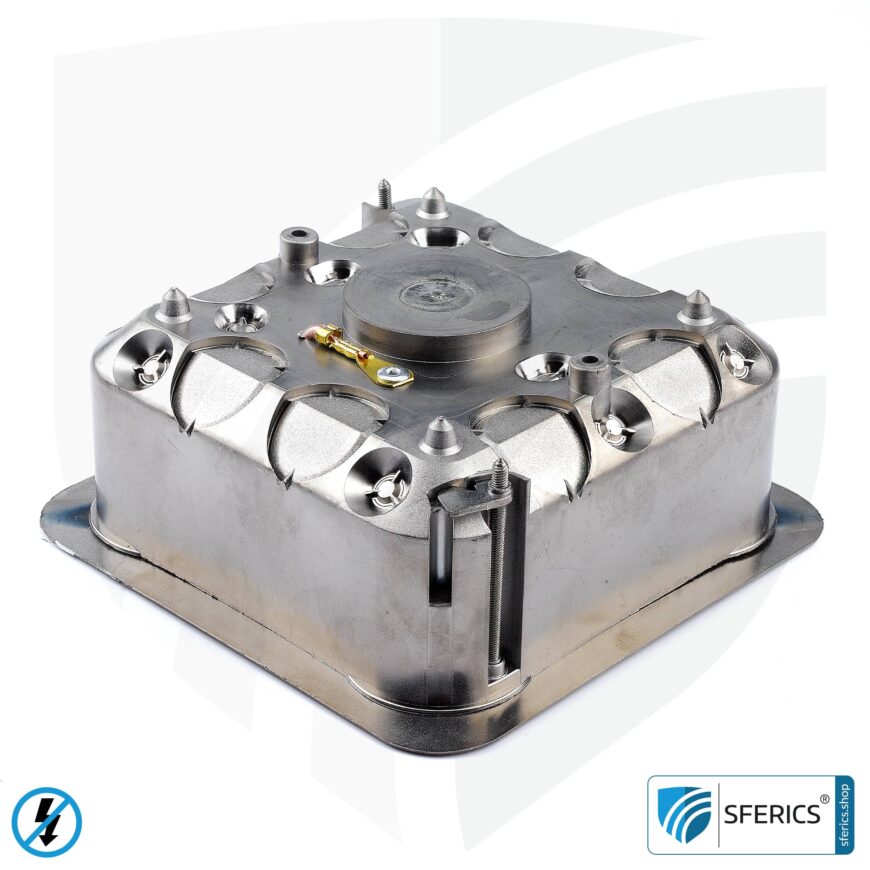

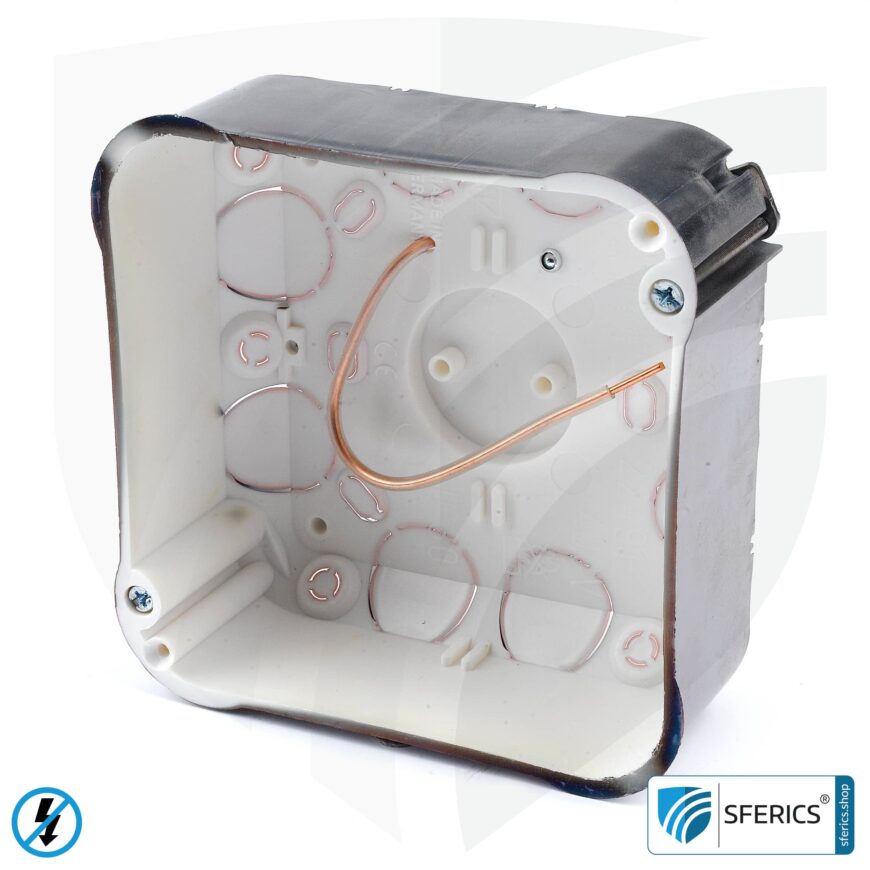

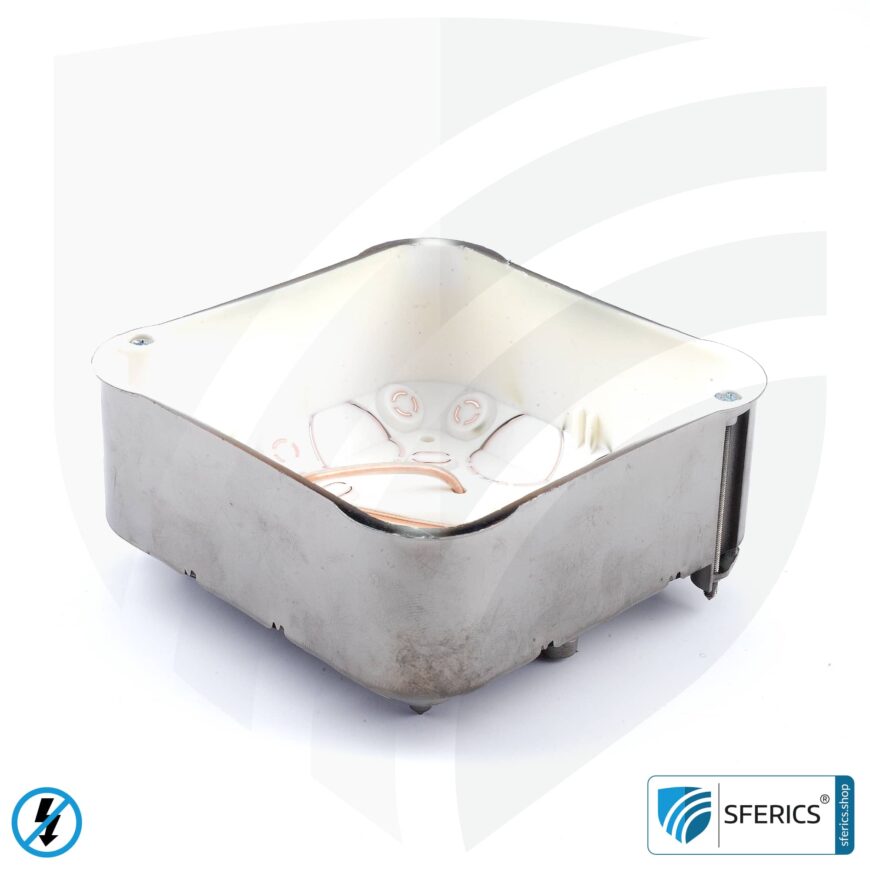

Shielded junction box | 53 mm | installation box for drywall and flush-mounted installation | halogen free

Shielded junction box with a depth of 53 mm. Junction box, halogen-free, for the installation of shielded electrical cables in drywall and concealed. For shielded rooms according to Faraday to reduce electrical fields LF.

This shielded installation box is used to reduce low-frequency alternating electrical fields. This is an ideal addition to the wall, which is shielded by means of shielding paint, in order to close the “hole socket” in the Farraday cage as well as possible.

Shielded with metal vacuum coating. Potential connection cable 1,5 mm² rigid. As a connection box for plaster and cavity wall. 107 x 107 x 53 mm. Standard mounting distances.

Flush-mounted electrical installation (symbol image)

General information about the shielded junction box, 53 mm deep

The coating on the junction box is electrically conductive and therefore perfectly suited for the effective limitation of alternating electrical fields. The focus of this shielded installation box is in use in bedrooms, hospitals, computer rooms and other sensitive areas to limit alternating electrical fields.

  • Special conductive metal vacuum coating for shielding against electrical alternating fields (in accordance with the EU’s 2002/95/EG guidelines)
  • Approved screw spacing
  • Connecting wire 1,5 mm² (Copper, massive, rigid, transparent insulation), quick installation in
  • Plug terminals (push-wire connectors)
  • Installation of the insertions with screws and stretches
  • Standard screw spacing of 60mm

Circuit diagram shielded junction box

Circuit diagram shielded junction box

Made in GermanyDetails on the shielded cavity wall socket, 53 mm deep

  • Can be used for a plate with a thickness of 7 to 35 mm
  • several breakout openings for cable entries
  • making an opening in the wall with four 35mm drilled holes (drilling template)

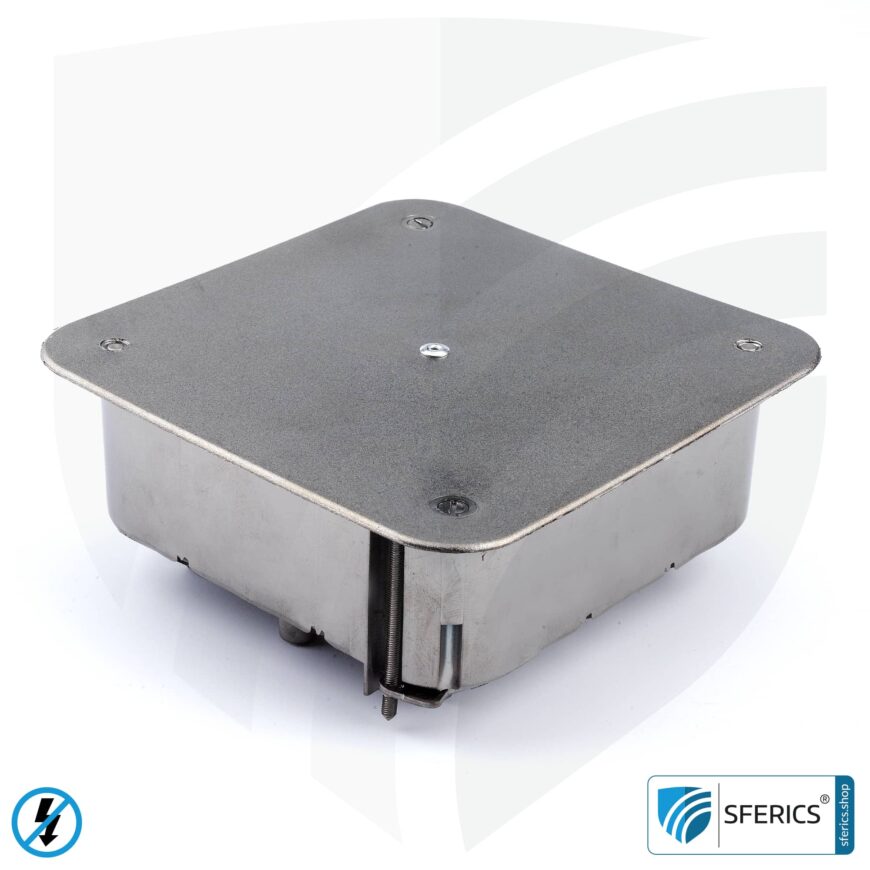

  • including cover screws and shielded caps (with further potential connection)
  • plastic (halogen-free PP)
  • Temperature range during processing -5° C to max. + 70° C (material breaks at too low temperatures)

Documentation (.pdf)

Technical details Details on building biology electrical installations Electrical Installations Instruction Booklet

Other available installation boxes

Shielded in-wall box, flat | 41mm depth | flush-mounted installation box, as junction box or switch boxShielded in-wall box, deep | 61mm depth | flush-mounted installation box, as junction box or switch box

Shielded in-wall box, flat | 41 mm depth | flush-mounted installation box, as junction box or switch box | halogen free

€ 7,10 (€ 5,97 excl. VAT)
Add to basket
Shielded in-wall box, deep | 61mm depth | flush-mounted installation box, as junction box or switch boxShielded in-wall box, deep | 61mm depth | flush-mounted installation box, as junction box or switch box

Shielded in-wall box, deep | 61 mm depth | flush-mounted installation box, as junction box or switch box | halogen free

€ 8,10 (€ 6,81 excl. VAT)
Add to basket
Shielded cavity wall box, flat | 47 mm | installation box in drywall, as a junction box or switch box | halogen freeShielded cavity wall box, flat | 47 mm | installation box in drywall, as a junction box or switch box | halogen free

Shielded cavity wall box, flat | 47 mm | installation box in drywall, as a junction box or switch box | halogen free

€ 9,40 (€ 7,90 excl. VAT)
Add to basket
Shielded cavity wall box, deep | 59 mm | installation box in drywall, as a junction box or switch box | halogen freeShielded cavity wall box, deep | 59 mm | installation box in drywall, as a junction box or switch box | halogen free

Shielded cavity wall box, deep | 59 mm | installation box in drywall, as a junction box or switch box | halogen free

€ 10,70 (€ 8,99 excl. VAT)
Add to basket
Shielded wall lights outlet box | 45mm | installation box for drywall and flush-mounted installation | halogen freeShielded wall lights outlet box | 45mm | installation box for drywall and flush-mounted installation | halogen free

Shielded wall lights outlet box | 45 mm | installation box for drywall and flush-mounted installation | halogen free

€ 13,20 (€ 11,09 excl. VAT)
Add to basket

Optimal, shielded and halogen-free installation cables

(N)HXMH(St)-J 3x 1.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF(N)HXMH(St)-J 3x 1.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF

(N)HXMH(St)-J 3x 1,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4303

from: € 78,00
Select options
This product has multiple variants. The options may be chosen on the product page
(N)HXMH(St)-J 3x 2.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF(N)HXMH(St)-J 3x 2.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF

(N)HXMH(St)-J 3x 2,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4347

from: € 97,00
Select options
This product has multiple variants. The options may be chosen on the product page
(N)HXMH(St)-J 5x 1.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF(N)HXMH(St)-J 5x 1.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF

(N)HXMH(St)-J 5x 1,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4325

from: € 105,00
Select options
This product has multiple variants. The options may be chosen on the product page
(N)HXMH(St)-J 5x 2.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF(N)HXMH(St)-J 5x 2.5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF

(N)HXMH(St)-J 5x 2,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4360

from: € 137,00
Select options
This product has multiple variants. The options may be chosen on the product page
Insulating tube | for the bare drain wire from the shielded installation cableInsulating tube | for the bare drain wire from the shielded installation cable

Insulating tube | for the bare drain wire from the shielded installation cable

€ 10,20 (€ 8,57 excl. VAT)
Add to basket

Recommendation: WAGO junction box terminals

WAGO compact splicing connector | model 2273-203 | for 3 solid conductors | alternative to classic connector blocksWAGO compact splicing connector | model 2273-203 | for 3 solid conductors | alternative to classic connector blocks

Accessories

€ 19,99 (€ 16,80 excl. VAT)
Add to basket
WAGO compact splicing connector | model 2273-204 | for 4 solid conductors | 100 pieces | alternative to classic connector blocksWAGO compact splicing connector | model 2273-204 | for 4 solid conductors | 100 pieces | alternative to classic connector blocks

Accessories

€ 48,99 (€ 41,17 excl. VAT)
Add to basket
WAGO compact splicing connector | model 2273-205 | for 5 solid conductors | 100 pieces | alternative to classic connector blocksWAGO compact splicing connector | model 2273-205 | for 5 solid conductors | 100 pieces | alternative to classic connector blocks

Accessories

€ 27,99 (€ 23,52 excl. VAT)
Add to basket
WAGO compact splicing connector, series 221 | model 221-412 | for 2 solid, fine-stranded and stranded cables | alternative to classic connector blocksWAGO compact splicing connector, series 221 | model 221-412 | for 2 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 0,65
Select options
This product has multiple variants. The options may be chosen on the product page
WAGO compact splicing connector, series 221 | model 221-413 | for 3 solid, fine-stranded and stranded cables | alternative to classic connector blocksWAGO compact splicing connector, series 221 | model 221-413 | for 3 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 0,81
Select options
This product has multiple variants. The options may be chosen on the product page
WAGO compact splicing connector, series 221 | model 221-415 | for 5 solid, fine-stranded and stranded cables | alternative to classic connector blocksWAGO compact splicing connector, series 221 | model 221-415 | for 5 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 1,79
Select options
This product has multiple variants. The options may be chosen on the product page
WAGO compact splicing connector | model 2273-208 | for 8 solid conductors | 50 pieces | alternative to classic connector blocksWAGO compact splicing connector | model 2273-208 | for 8 solid conductors | 50 pieces | alternative to classic connector blocks

Accessories

€ 27,99 (€ 23,52 excl. VAT)
Add to basket
WAGO compact splicing connector | model 2273-202 | for 2 solid conductors | alternative to classic connector blocksWAGO compact splicing connector | model 2273-202 | for 2 solid conductors | alternative to classic connector blocks

Accessories

€ 21,99 (€ 18,48 excl. VAT)
Add to basket
Weight 0,05 kg
Dimensions 6,7 × 6,7 × 4,7 cm
Scope of delivery

Cavity-wall box
Brand

Country of origin

Germany
GTIN

4260004784481

.

Description Shielded junction box
Opening unit Pc. (piece)
Colour white / silver
Length 107 mm
Width 107 mm
Depth 53 mm
Composition Plastic (PP)
Screen attenuation max. in dB (earth-dependent)
Screen attenuation max. in dB > 99 % (earth-dependent)
Grounding/NF shielding Further information on incorporating the junction box into the functional equipotential bonding can be found in the flyer “Functional equipotential bonding” (cooperation project of the Danell company, Biologa company and Mr. Martin Schauer (publicly appointed and sworn expert in the electrical engineering trade and for electric, magnetic and electromagnetic fields from the Chamber of Crafts for Lower Franconia) ->Download flyer Funktionspotentialausgleich.de

Further information can also be found at www.funktionspotentialausgleich.de

The book Field Reduction in Buildings, published by DE-Verlag, also contains important information on the correct use of Biologa products -> Field Reduction in Buildings – Martin Schauer – ISBN:978-3-8101-0315-4
Panel thickness 7 – 35 mm
Shield wire Cu, 1.5 mm², solid (transparent)
Shielding Special vacuum metal coating
Application 1. bedrooms and children’s rooms
2. offices / PC workstations
3. guest rooms
4. hospitals etc.
Example application Preferably to be used in areas where a shielded electrical installation is planned. The box reduces additional alternating fields where the shielded cable ends! Biologa recommends the installation of shielded boxes in addition to shielded cables as a supplementary shielding measure.
Scope of delivery 1. Hollow wall junction box
2. Installation instructions
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
