Shielded wall lights outlet box | 45mm | installation box for drywall and flush-mounted installation | halogen free

Shielded wall lights outlet box | 45 mm | installation box for drywall and flush-mounted installation | halogen free

Name: ▷ Shielded wall lights outlet box | 45 mm depth
Brand: DANELL
SKU: 41-4606
Price: 13.20 EUR
Availability: InStock

Shielded wall lights outlet box, for reducing low-frequency alternating electrical fields. High quality installation box with a depth of 45 mm for installation in drywall and flush-mounted.

Delivery time: approx. 1-3 working days

In stock

€ 13,20 (€ 11,09 excl. VAT)

SKU: 41-4606 Category: Installation boxes Tags: Cavity-wall box, Light connection, Luminaire outlet, special box, Wall light

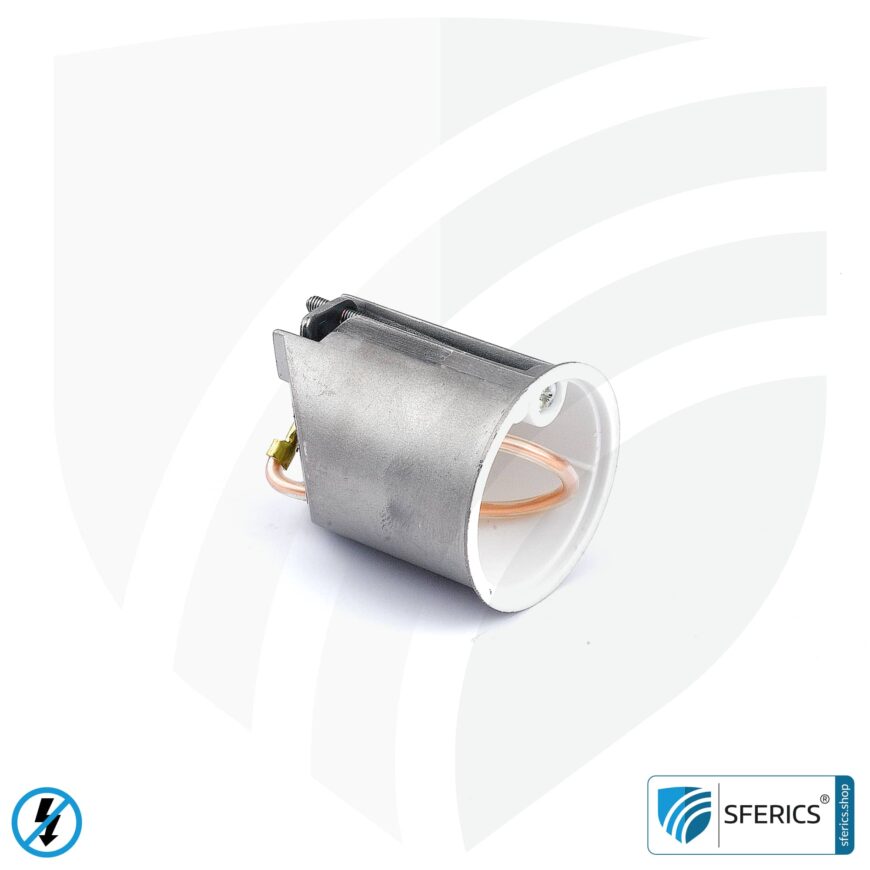

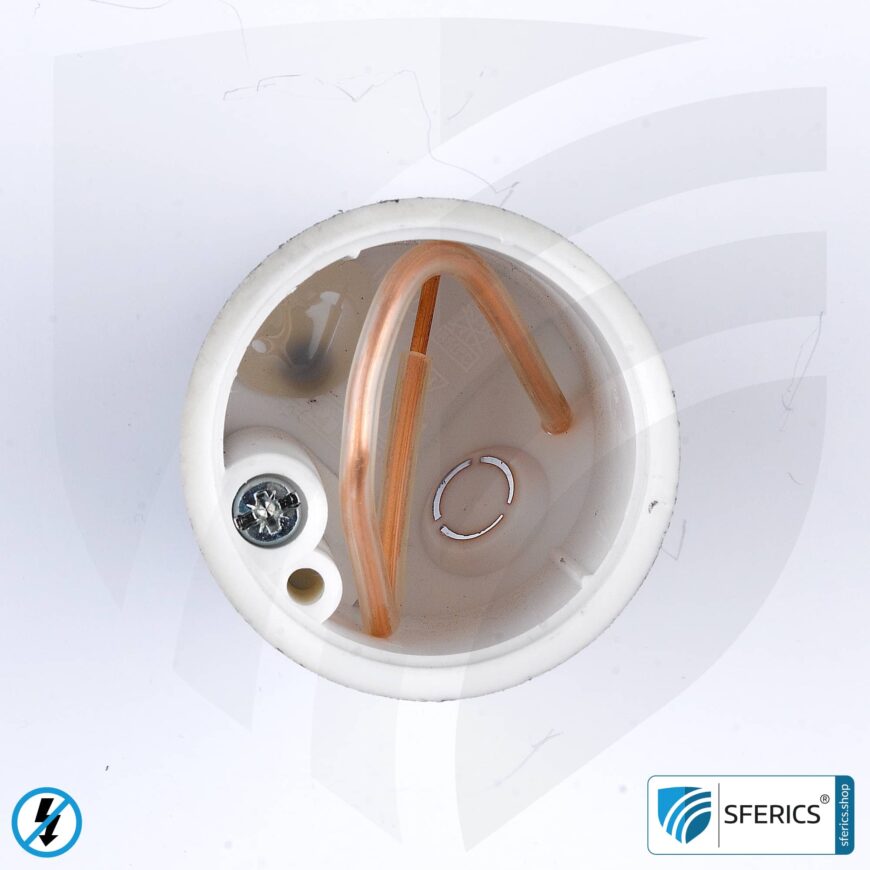

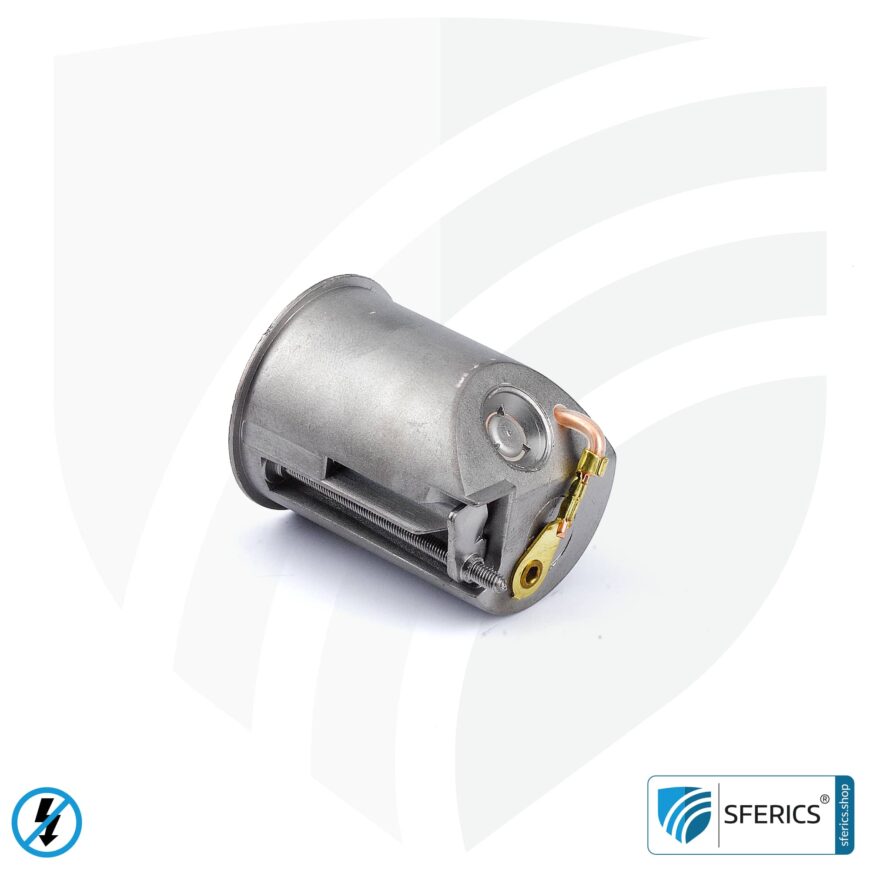

Shielded wall lights outlet box with a depth of 45 mm, halogen-free. For installation as an outlet box for wall lights and ceiling lights in drywall and concealed. For shielded rooms according to Faraday to reduce electrical fields LF.

This shielded installation box is used to reduce low-frequency alternating electrical fields. This is an ideal addition to the wall, which is shielded by means of shielding paint, in order to close the “hole socket” in the Farraday cage as well as possible.

Shielded with metal vacuum coating. Potential connection cable 1,5 mm² rigid. As a wall lamp outlet box. Diameter 35 mm, depth 45 mm. Standard mounting distances.

Flush-mounted electrical installation (symbol image)

General information about the shielded wall lights outlet box, 45 mm

The coating of the cavity wall socket is electrically conductive and therefore perfectly suitable for the effective limitation of alternating electrical fields. The focus of this shielded installation box is in use in bedrooms, hospitals, computer rooms and other sensitive areas to limit alternating electrical fields.

Special conductive metal vacuum coating for shielding against electrical alternating fields (in accordance with the EU’s 2002/95/EG guidelines)
Approved screw spacing
Connecting wire 1,5 mm² (Copper, massive, rigid, transparent insulation), quick installation in
Plug terminals (push-wire connectors)
Installation of the insertions with screws and stretches
Standard screw spacing of 60mm

Circuit diagram shielded junction box

Details of the shielded wall lights outlet box, 45 mm depth

Can be used for a plate with a thickness of 7 to 35 mm
several breakout openings
pre-mounted device screws
snap-lock spacer
polypropylene (halogen-free).
Temperature range during processing -5° C to max. + 70° C (material breaks at too low temperatures)

Documentation for the shielded lights outlet installation box (german / .pdf)

Technical details Details on building biology electrical installations Electrical Installations Instruction Booklet

Other available installation boxes

Shielded in-wall box, deep | 61mm depth | flush-mounted installation box, as junction box or switch box

Shielded in-wall box, flat | 41 mm depth | flush-mounted installation box, as junction box or switch box | halogen free

€ 7,10 (€ 5,97 excl. VAT)

Add to basket

Shielded in-wall box, deep | 61 mm depth | flush-mounted installation box, as junction box or switch box | halogen free

€ 8,10 (€ 6,81 excl. VAT)

Add to basket

Shielded cavity wall box, flat | 47 mm | installation box in drywall, as a junction box or switch box | halogen free

€ 9,40 (€ 7,90 excl. VAT)

Add to basket

Shielded cavity wall box, deep | 59 mm | installation box in drywall, as a junction box or switch box | halogen free

€ 10,70 (€ 8,99 excl. VAT)

Add to basket

Shielded junction box | 53 mm | installation box for drywall and flush-mounted installation | halogen free

€ 35,30 (€ 29,66 excl. VAT)

Add to basket

Optimal, shielded and halogen-free installation cables

(N)HXMH(St)-J 3x 1,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4303

from: € 78,00

Select options

(N)HXMH(St)-J 3x 2,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4347

from: € 97,00

Select options

(N)HXMH(St)-J 5x 1,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4325

from: € 105,00

Select options

(N)HXMH(St)-J 5x 2,5 mm² shielded installation cable | halogen-free | plasticizer-free | electric cable for shielding alternating electrical fields LF | 41-4360

from: € 137,00

Select options

Insulating tube | for the bare drain wire from the shielded installation cable

€ 10,20 (€ 8,57 excl. VAT)

Add to basket

Recommendation: WAGO junction box terminals

WAGO compact splicing connector, series 221 | model 221-412 | for 2 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 0,65

Select options

WAGO compact splicing connector, series 221 | model 221-413 | for 3 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 0,81

Select options

WAGO compact splicing connector, series 221 | model 221-415 | for 5 solid, fine-stranded and stranded cables | alternative to classic connector blocks

Accessories

from: € 1,79

Select options

WAGO compact splicing connector | model 2273-208 | for 8 solid conductors | 50 pieces | alternative to classic connector blocks

Accessories

€ 27,99 (€ 23,52 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-202 | for 2 solid conductors | alternative to classic connector blocks

Accessories

€ 21,99 (€ 18,48 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-203 | for 3 solid conductors | alternative to classic connector blocks

Accessories

€ 19,99 (€ 16,80 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-204 | for 4 solid conductors | 100 pieces | alternative to classic connector blocks

Accessories

€ 48,99 (€ 41,17 excl. VAT)

Add to basket

WAGO compact splicing connector | model 2273-205 | for 5 solid conductors | 100 pieces | alternative to classic connector blocks

Accessories

€ 27,99 (€ 23,52 excl. VAT)

Add to basket

Weight	0,05 kg
Dimensions	6,7 × 6,7 × 4,7 cm
Scope of delivery	Cavity-wall box
Brand	DANELL
Country of origin	Germany
GTIN	4260004784603

Description	Shielded wall lights outlet box
Opening unit	Pc. (piece)
Colour	white / silver
Depth	45 mm (flat version)
Composition	Plastic (PP)
Screen attenuation max. in dB	(earth-dependent)
Screen attenuation max. in dB	> 99 % (earth-dependent)
Grounding/NF shielding	Further information on incorporating the box into the functional equipotential bonding can be found in the flyer “Functional equipotential bonding” (cooperation project of the Danell company, the Biologa company and Mr. Martin Schauer (publicly appointed and sworn expert in the electrical engineering trade and for electric, magnetic and electromagnetic fields by the Chamber of Crafts for Lower Franconia) ->Download flyer Funktionspotentialausgleich.de Further information can also be found at www.funktionspotentialausgleich.de The book Field Reduction in Buildings, published by DE-Verlag, also contains important information on the correct use of Biologa products -> Field Reduction in Buildings – Martin Schauer – ISBN:978-3-8101-0315-4
Diameter	Ø 35 mm
Panel thickness	7 – 35 mm
Shield wire	Cu, 1.5 mm², solid (transparent)
Shielding	Special vacuum metal coating
Application	1. bedrooms and children’s rooms 2. offices / PC workstations 3. guest rooms 4. hospitals etc.
Example application	Preferably to be used in areas where a shielded electrical installation is planned. The box reduces additional alternating fields where the shielded cable ends! Biologa recommends the installation of shielded boxes in addition to shielded cables as a supplementary shielding measure.
Scope of delivery	1. box 2. installation instructions
Warranty	The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
