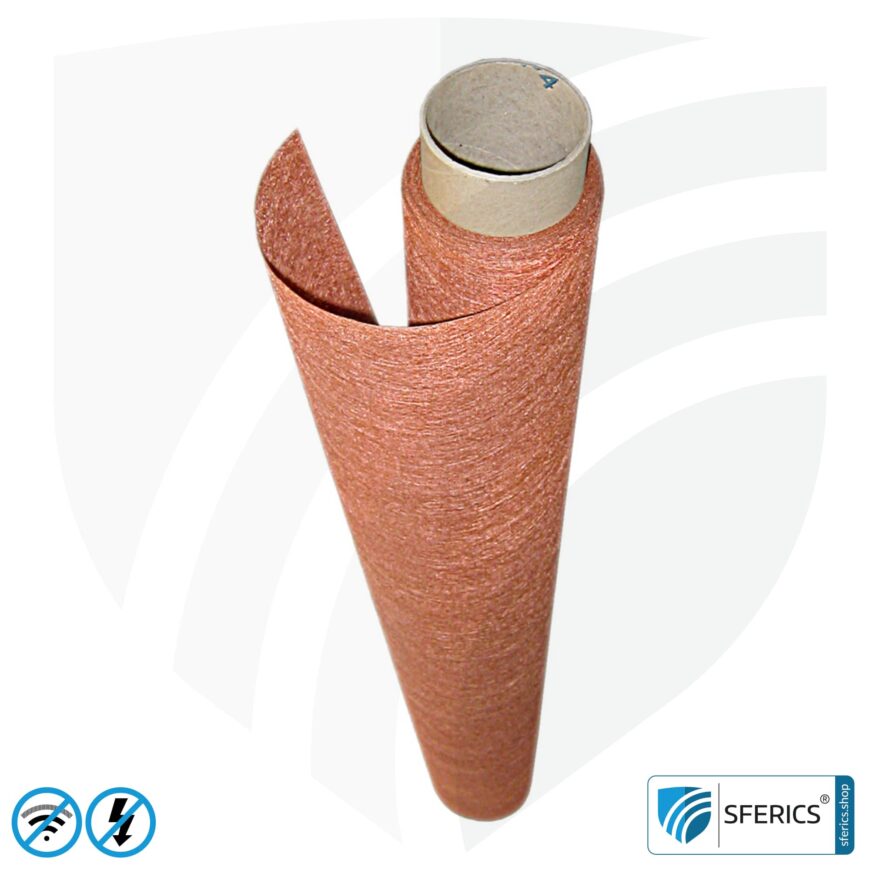

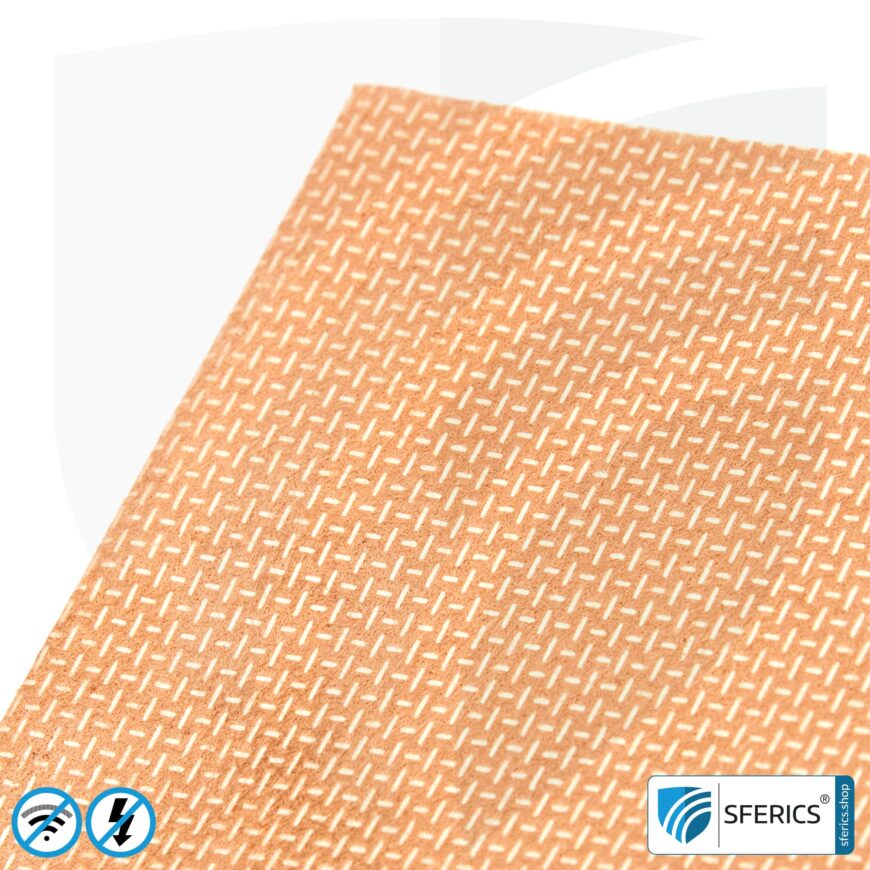

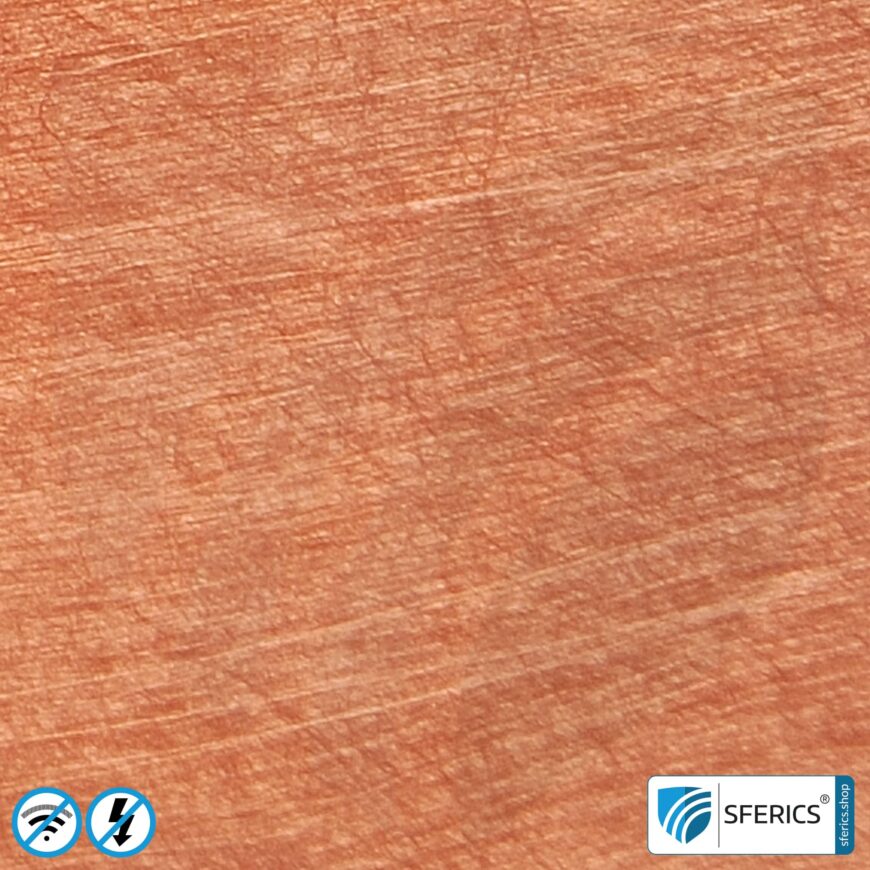

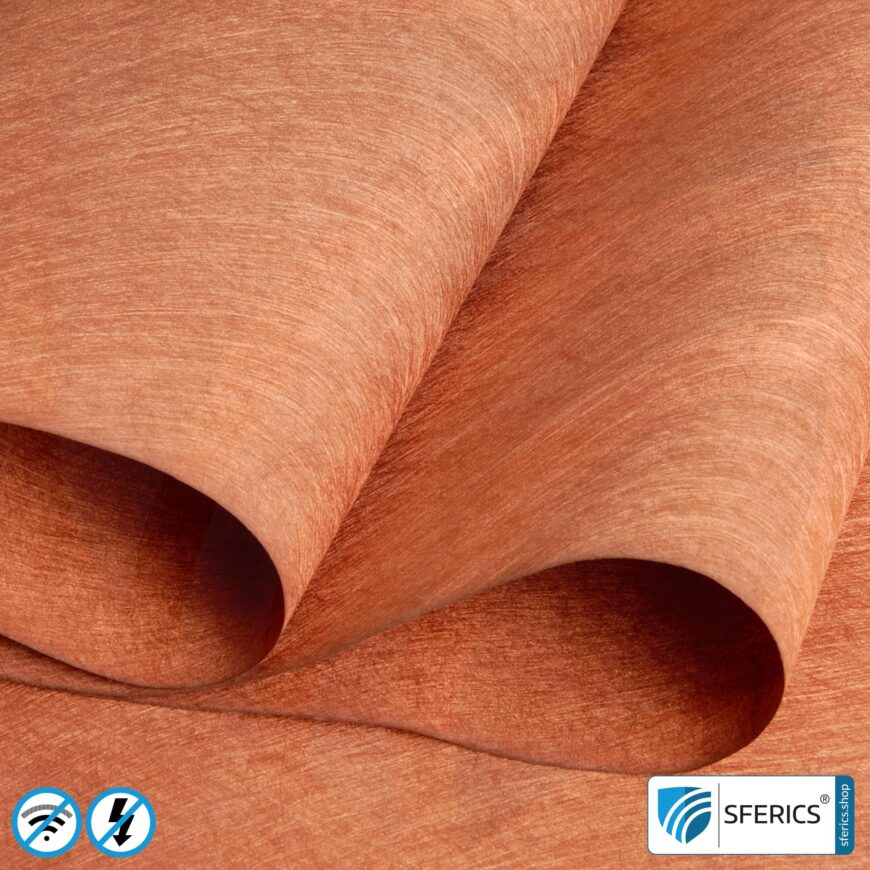

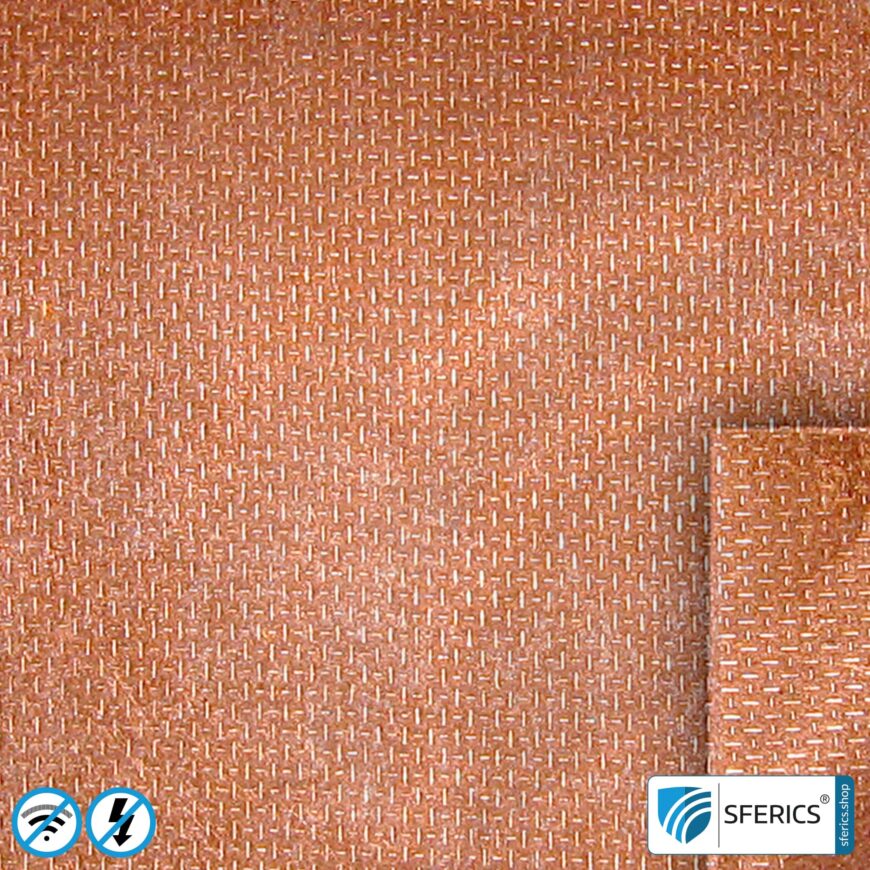

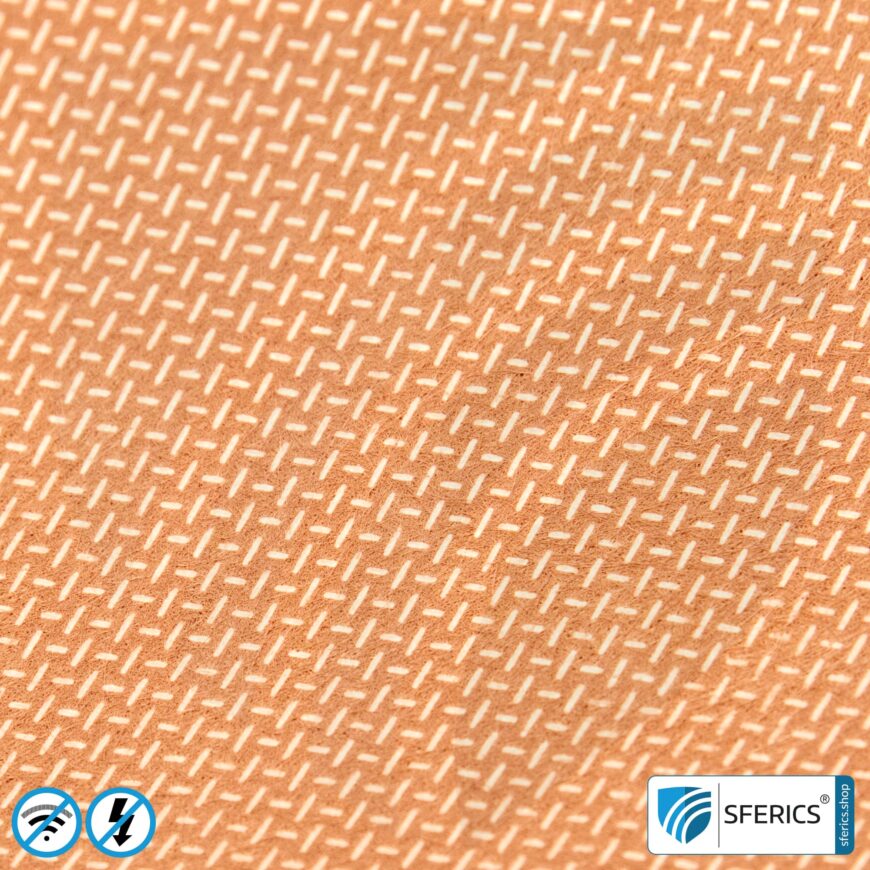

Shielding fleece SAPHIR | fibre fleece with copper coating | RF screening attenuation against electrosmog up to 56 dB | 100 cm width. Effective against 5G!

SAPHIR is a copper-coated polyamide spunbond fleece with a high shielding attentuation of up to 56 dB. It is preferably laid loosely in drywall construction to shield high-frequency electromagnetic waves and low-frequency alternating electric fields in the area of walls, ceilings and floors. 100 cm width.

Price per meter (100 x 100 cm)
Quantity = number of linear meters

Delivery time: 1-3 business days | unit price € 22,90/sqm
No right of withdrawal for cut goods | request a free test sample

Out of stock

You must register to use the waitlist feature. Please login or create an account

SFERICS® quality verified

 22,90 ( 19,08 excl. VAT)

Shielding fleece SAPHIR. With this shielding copper-coated fibre fleece against electrosmog HF + LF, effective radiation protection against electrosmog becomes possible. Shielding efficiency 99,999 % (> 50 dB). Width 100 cm. Effective against 5G!

SAPHIR shielding fleece from BIOLOGA® is a copper-coated polyamide spunbond fleece. Developed for the effective shielding of large areas against high-frequency electromagnetic fields (HF), low-frequency alternating electric fields (LF) from domestic electricity and the discharge of static charges.

When shielding radio (mobile phone radiation, WIFI, transmission masts, 5G, …), a high shielding attenuation of over 50 dB is achieved – this corresponds to a shielding efficiency of over 99.999 percent.

Shielding fleece SAPHIR for effective, high-quality shielding

This high-performance fleece Saphir is convincing due to its easy processing. It is preferably laid loosely in drywall construction to shield high-frequency electromagnetic waves and low-frequency alternating electric fields in the area of walls, ceilings and floors.

  • for large-area shielding of high-frequency electromagnetic waves and low-frequency alternating electric fields
  • for the dissipation of static charges
  • copper-coated fibre fleece
  • easy to contact electrically
  • for loose laying

This very special copper-coated fibre fleece also stands out due to its special grain. Even though it is not measurable, service providers from the health sector, such as alternative practitioners, report positive support and an increase in well-being. This shielding fleece is also ideal for lining storage containers and furniture to protect homeopathic products and medicines from immissions or irradiation by electromagnetic and electric fields.

Shielding fleece SAPHIR | fibre fleece with copper coating | RF screening attenuation against electrosmog up to 56 dB | 100 cm width. Effective against 5G!

Made in GermanyShielding fleece SAPHIR technical information

  • Width: 100 cm (+/- 2 cm)
  • Length: by the meter
  • Shielding attentuation: up to 56 dB
  • Shielding effectiveness: > 99.999
  • Weight per unit area: 72 g/m² (+/- 10 %)
  • Thickness: 0.18 mm (+/- 10 %)
  • Colour: copper
  • Electrical conductivity: < 0.06 Ohm (square resistance)
  • Materials: Polyamide spunbond fleece, copper coated
  • Grounding: Electrically conductive. Can be contacted and earthed to shield alternating electric fields (AF)! Suitable components can be found under “Grounding”. A recommendation here is difficult because it depends on the application. Ask us!
  • Field type: HF (high-frequency electromagnetic fields), NF (low-frequency alternating electric fields)
Smartcity EMF radiation Symbol image

Frequently asked questions about the SAPHIR shielding fleece

Does Saphir have to be laid overlapping?
Yes, it is necessary to overlap the fleece in order to obtain a clean, continuous high-frequency screen surface.

Can pictures or other objects be attached to the wall or ceiling after the screen has been completed?
The attachment of pictures or other objects is no problem and can also be done on a screen surface. Small nails or even screws may be used. Please note the cable routing of your electrical installation in advance so as not to damage existing cables in the wall. You can find appropriate cable finders in DIY stores or at specialist dealers.

Can Saphir also be wallpapered?
No, the Saphir shielding fleece must be applied dry. It is also not suitable for use under plaster!

Shielding accessories

from:  19,90
This product has multiple variants. The options may be chosen on the product page
TEST

Shielding accessories

 0,50
This product has multiple variants. The options may be chosen on the product page

Order quantity, revocation of the order and surcharge for short quantities

If the netting has been cut in pieces of 1.0 running meter as requested by the customer, it is not possible to cancel or revoke the order. For this reason, it is possible to request a free sample of the shielding fleece. By ordering pre-finished products, waiving the statutory right to return goods is accepted.

Practice has shown that small quantities are not financially viable due to the continuously increasing costs of packaging and shipping. Therefore we are forced to charge a minimum quantity surcharge for small quantities up to 3 running meters. We ask for your understanding.

Documentation (.pdf / german language)

Details and shielding attentuation Technical data sheet
Weight 0,1 kg
Dimensions 100 × 100 × 0,0018 cm
Running meter

Quantity = desired length of the shielding netting

Length

Linear meter

Width

100 cm

Color

copper

Field type

HF (high-frequency electromagnetic field), LF (low-frequency electric alternating field)

Brand

GTIN

4260004782937

Country of origin

Germany

TECHNICAL DETAILS SHIELDING FLEECE SAPHIR
Order unit running meter
Colour copper
Length running meter
Width 100 cm ± 2%
Basis weight 72 g/m² ±10%
Thickness 0,18 mm ± 10%
Composition Nylon fibres, copper coated
Surface conductivity < 0,06 Ω/□
Tensile strength longitudinal 25N / 5cm – cross 42N / 5cm
Properties Vapour diffusion open, low corrosion, easy to install
Basis for the audit IEEE-Standard 299-1997
MIL-STD 285 VG-Norm 95 370, Part 15
Screening attentuation max. in dB ~ 58 dB
Shielding effectiveness max. in % > 99,999 %

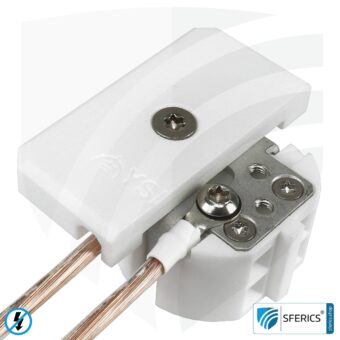

Grounding/NF shielding The fabric can be integrated into the functional equipotential bonding to shield low-frequency alternating electric fields. The grounding components AEB 3.0 and EGP used here can be found as accessories to this product.
Processing High-quality copper-coated nylon fibre fabric for loose / dry installation.
Thermal load -30°C bis 90°C
Important information Please allow for an overlap of approx. 5-10 cm between the individual sheets when installing the Saphir copper fleece. The sheets must lie flat on top of each other. You are welcome to send us a plan (PDF) of the area to be covered by e-mail. This can be used to draw up a proposal for the installation and connection diagram for your tradesmen. You can find further information on processing in our technical data sheet in the download area.
Scope of application 1. Roof area inside (behind boarding)
2. interior wall and ceiling areas (behind boarding)
3. floor area (under floating carpets, parquet and wooden floorboards)
Other notes The grounding accessories are not included in the scope of delivery.
Please note our technical data sheet in the download area.
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB).

Q & A

Ask a question
There are no questions yet
Tetra 450 450MHz 40dB 99.99%
LTE 800 800MHz 50dB 99.999%
GSM 900 900MHz 50dB 99.999%
GSM 1800 1800MHz 50dB 99.999%
DECT 1800 1800MHz 50dB 99.999%
UMTS 2000 2000MHz 50dB 99.999%
WLAN 2400 2400MHz 50dB 99.999%
LTE 2600 2600MHz 50dB 99.999%
WLAN 5800 5800MHz 50dB 99.999%
