Shielding materials and products are diverse. And extremely rich in essential technical details - a dramatic disadvantage for the layman. A small change in numbers in the screening attentuation report can ultimately mean a huge difference in measurement technology. EMF shielding classes create the common thread.
In the ULTRA performance class, the focus is on MAXIMUM. Only highly developed shielding materials create our metrological requirements for the SFERICS® ultra classification. When every single dB counts!
SFERICS® ultra - for data centers, laboratories and people
Shielding materials and products are diverse. And extremely rich in essential technical details - a dramatic disadvantage for the layman. A small change in numbers in the umbrella report can ultimately mean a huge difference in measurement technology. EMF shielding classes create the common thread.
In the PRO performance class, the focus is on HIGH. Purely highly developed shielding materials create our technical requirement for a SFERICS® pro classification. When above-average shielding is the goal!
SFERICS® pro - for server rooms, universities and people
The stainless steel gauze V4A03 is ideal for effective EMF shielding with a shielding effectiveness of up to 55 dB. Due to its corrosion resistance, it is especially ideal for use on the outside walls of the house – even in saltwater areas.
Price per meter (100 x 90 cm)
Quantity = number of linear meters

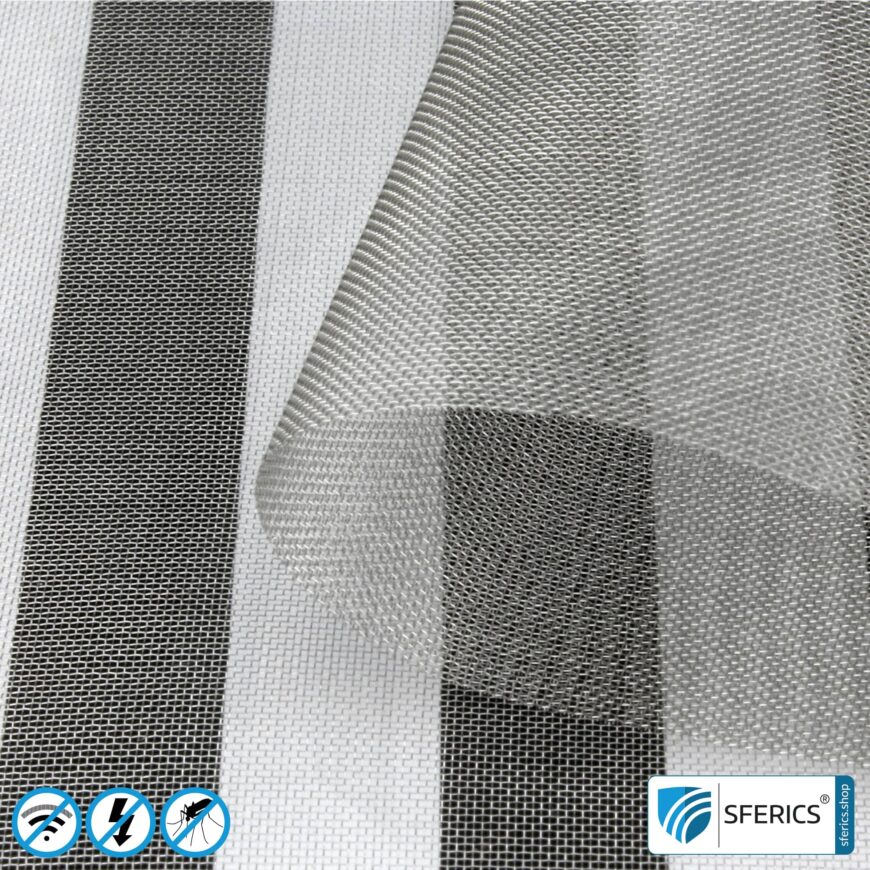

Shielding stainless steel gauze (mesh) V4A03 for flexible application inside and outside. The shielding fabric is corrosion resistant and insensitive to heat. With this shielding fabric against electrosmog HF + LF the highly effective radiation protection against electrosmog is possible. Shielding efficiency 99.999% (50dB). Width 90cm. Effective against 5G!

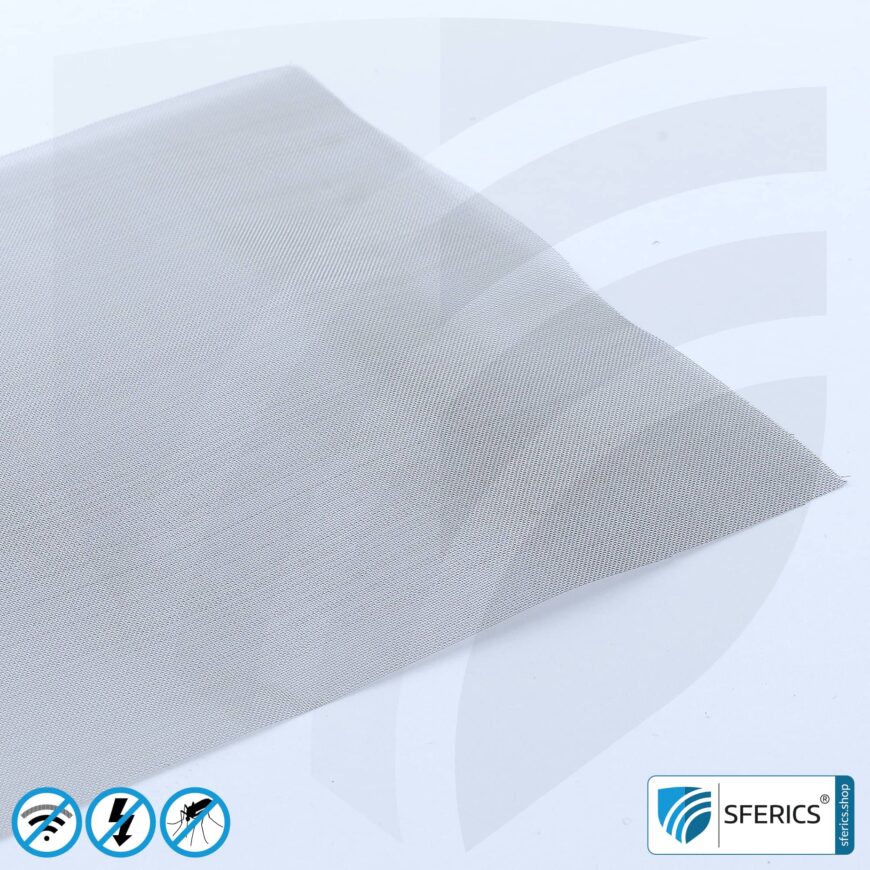

This V4A03 stainless steel mesh is an extremely-finely woven and corrosion-resistant stainless steel mesh. It can be effectively installed to shield against electrosmog from radio (HF) and alternating fields from the power supply, for example (LF).

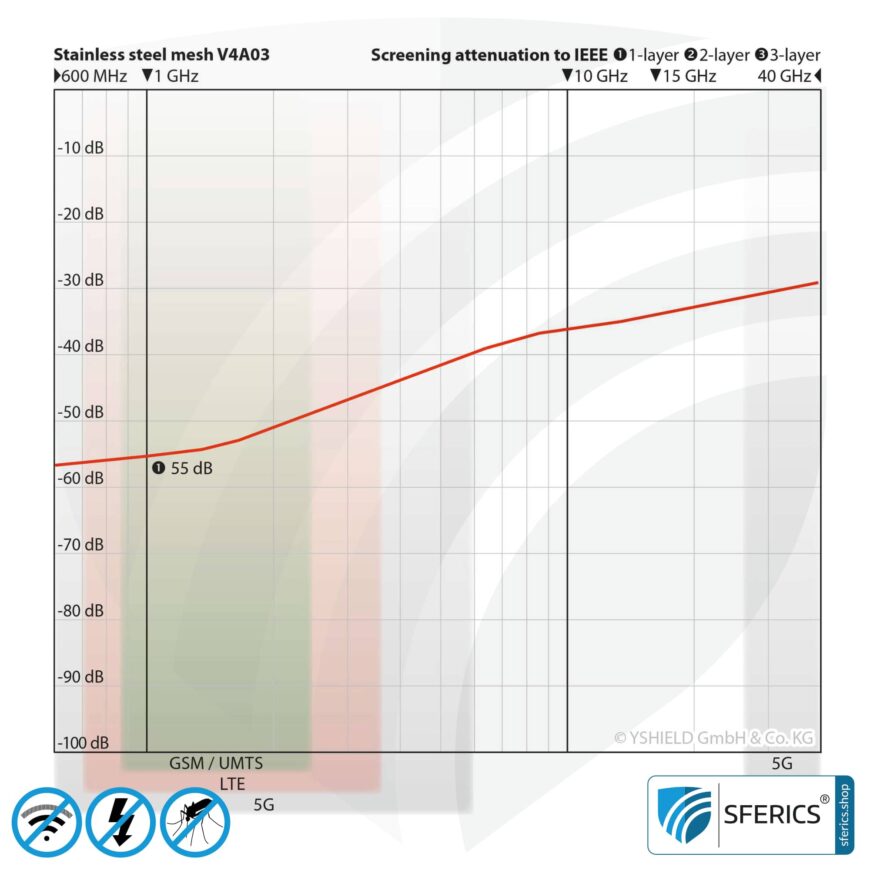

Compared to the V4A10 stainless steel mesh, the attenuation drops less drastically at higher frequencies from 2.4 GHz. This impressive result is possible thanks to V4A03’s considerably lower mesh size. The V4A03 stainless steel gauze is considered to be a base shielding mesh. Both layers of EMF shielding have their own uses, it depends on where you use it.
The shielding V4A03 stainless steel mesh also impresses with its resistance to corrosion. It is simply great in house construction for shielding the entire building, even near the coast and salt water. Importantly, the V4A03 stainless steel mesh is very resistant to water, steam, humidity, weak acids and salty seawater on the coast.
Typical use of the V4A03 stainless steel gauze
Inside and outside under the render in insulation, in the ceiling, in timber construction, dry construction, loose laying, and many more. Like the V4A10, the V4A03 stainless steel mesh is a suitable fly screen against mosquitoes among others with its 0.3 mm mesh.
V4A03 stainless steel gauze technical information
Width: 90 cm
Length: by the meter / 25 m roll
Shielding attentuation: 55 dB.The specified dB values apply at 1 GHz. Measurement from 40/600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
Grammage: 200 g/m²

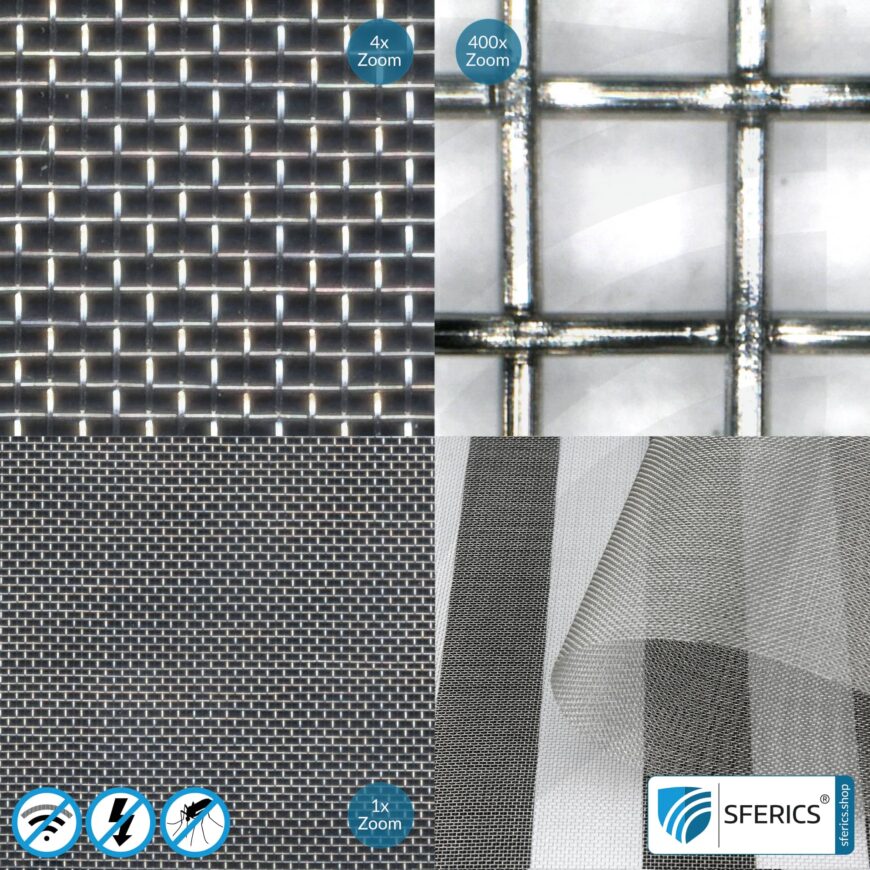

Mesh thickness / mesh density: 0.3 mm
Wire diameter: 0.08 mm
Material thickness: 0.16 mm
Open area: 54 %
Surface conductivity: 0.03 ohms (square resistor)
Fire-proof material, A1 according DIN 4102:1994.
Processing the V4A03 stainless steel mesh against electrosmog
When working under a render, this V4A03 stainless steel mesh should be stuck with the finest organic filler (without fillings) possible. When working under flooring (laminate, parquet, PVC, etc.), V4A03 is stuck on with the adhesive. In dry construction and ceilings, the tracks fasten or can be stuck on as required.
The following always applies: the tracks overlap for 5 cm.
For grounding, our stainless steel tape is put on across all of the tracks and stuck to the substrate/tracks.
This product has multiple variants. The options may be chosen on the product page
Order Cancellation | Request Free Test Sample
If the shielding material is customized and cut from the roll in increments of 1.0 running meters at the customer’s request, returns or cancellation of the order are not possible. Therefore, you have the option to request a free material sample – please request it BEFORE ORDERING custom-cut material!
All our shielding materials are highly advanced specialty products with outstanding performance. The resale of custom-cut shielding material of this performance class is either not possible or only possible with significant financial loss, and therefore legally falls under the exception to the right of withdrawal. By ordering custom-cut running meters, your right of withdrawal expires; by placing the order, you accept our cancellation terms and waive your right to return.
Fairness in Product Pricing
Surcharges for small quantities up to 3 running meters have been eliminated for reasons of transparency and fairness. The price per running meter is therefore always the same, with price advantages for larger quantities. To cover handling and packaging costs, we charge a flat fee of € 6,90 per cut.
Test Report & Expert Opinion on Shielding Attenuation up to 40 GHz
Many years ago, YSHIELD invested in its own professional EMC laboratory. Here, not only are test reports generated, but each batch is also tested daily. In addition, YSHIELD has all products reviewed by an independent, renowned expert. Double-checked for double security.
