Shielding materials and products are diverse. And extremely rich in essential technical details - a dramatic disadvantage for the layman. A small change in numbers in the screening attentuation report can ultimately mean a huge difference in measurement technology. EMF shielding classes create the common thread.
In the ULTRA performance class, the focus is on MAXIMUM. Only highly developed shielding materials create our metrological requirements for the SFERICS® ultra classification. When every single dB counts!
SFERICS® ultra - for data centers, laboratories and people
Shielding materials and products are diverse. And extremely rich in essential technical details - a dramatic disadvantage for the layman. A small change in numbers in the umbrella report can ultimately mean a huge difference in measurement technology. EMF shielding classes create the common thread.
In the PRO performance class, the focus is on HIGH. Purely highly developed shielding materials create our technical requirement for a SFERICS® pro classification. When above-average shielding is the goal!
SFERICS® pro - for server rooms, universities and people
HNG100 is a metallised polyester fabric with an enormous shielding effectiveness of up to 98 dB and is intended for gluing or loose laying in drywall and solid construction. 90cm width.
Price per meter (100 x 90 cm)
Quantity = number of linear meters
Delivery time: 1-3 business days | unit price € 29,89/sqm
No right of withdrawal for cut goods | request a free test sample
Price per linear meter | € 6,90 charge per cut + packaging

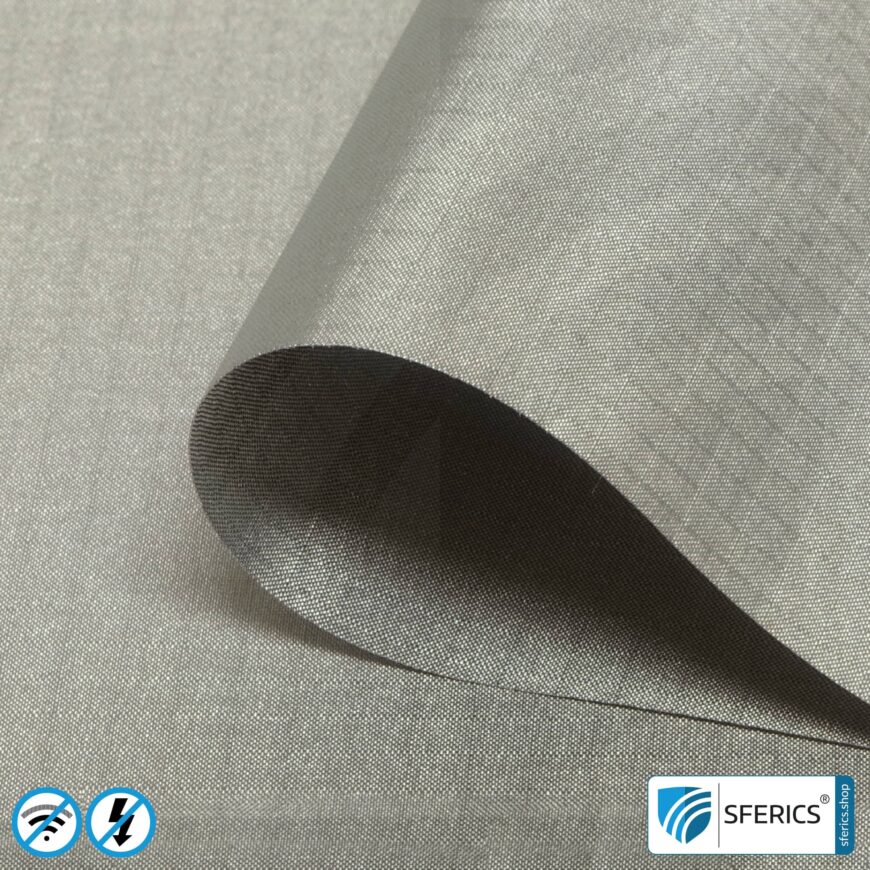

HNG100 shielding netting for use in drywall or solid construction. A highly-effective attenuation is possible with this shielding netting against mobile radiations and electrical alternating fields. Shielding efficiency over 99,9999999% (98 dB). Width 90cm. Effective against 5G!

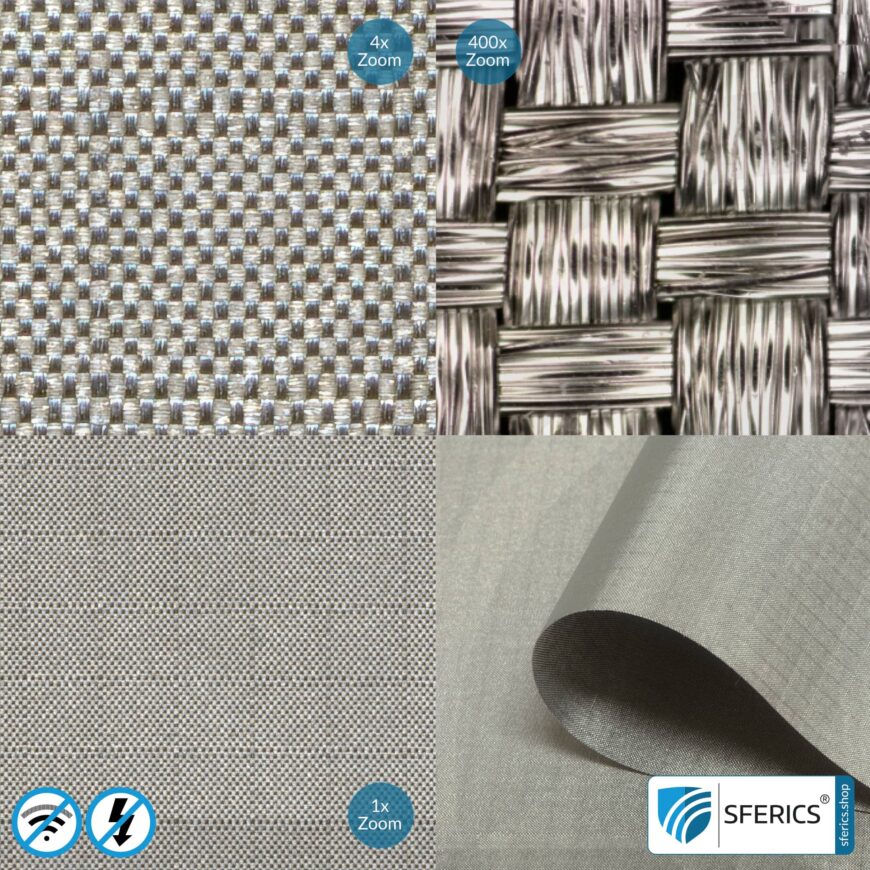

The HNG100 by YSHIELD is a tightly-woven metallic mesh made out of polyester. Developed for effective protection from high-frequency electromagnetic fields (HF) and low-frequency electric fields (LF) from the house supply on large areas. The attenuation of radio (mobile radiation, WIFI, transmission masts…) can go up to 98 dB! HNG100 is a professional high-protection product.
Shielding netting for protection in professional fields
HNG100 can easily be stuck onto walls, ceilings, and floors. It can also be used as a wallpaper. HNG100 is best suited to ministries of defence, low-emission rooms (Tempest), data rooms and laboratories because of its professional screening attenuation.
Shielding netting technical information
Width: 90cm
Length: by the meter / 20 m roll / 100 m roll

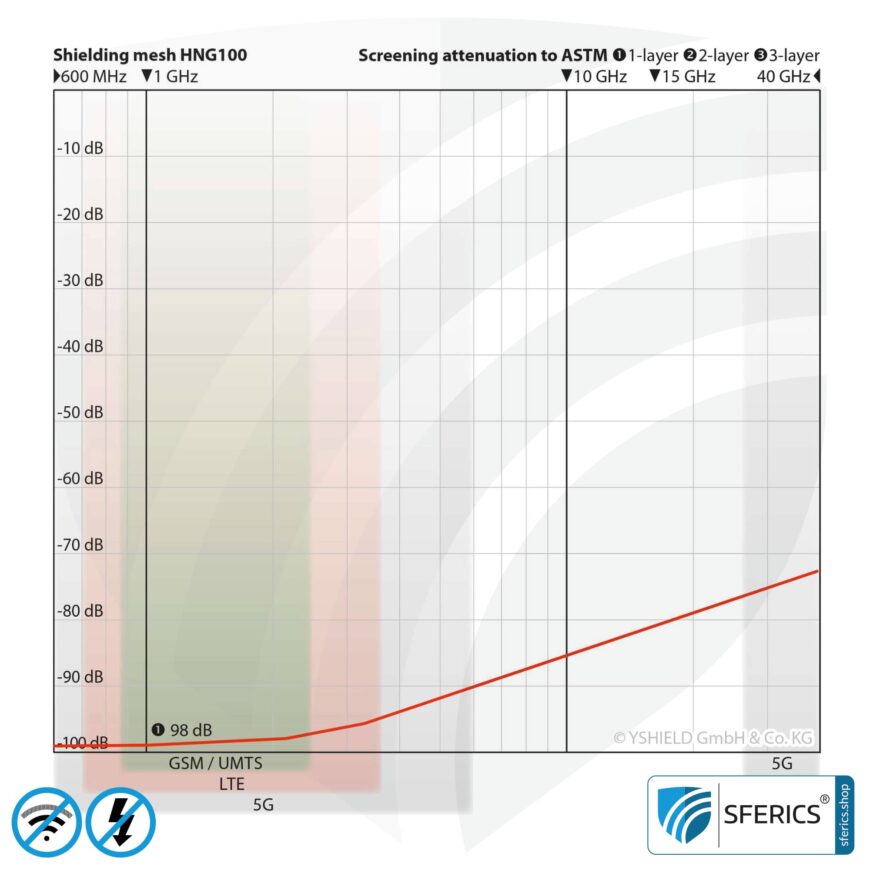

Shielding effectiveness: 98 dB (depending on production +/- 5 dB). All specified shielding attenuation values apply at 1 GHz. Measurement from 40/600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
Grammage: 90 g/m²
Thickness: 0,08 mm
Color: grey/brown
Tear resistance: 90 lbf
Materials: polyester, copper, nickel
Surface conductivity: 0.01 Ohm (square resistor)
Grounding: Electrically conductive. Can be contacted and grounded to shield against alternating fields (LF)! You can find the corresponding components under “Grounding”. It is difficult to recommend anything because it depends on the usage. Please ask us!
Application: Floors, indoor walls, ceilings
Field type: HF (high-frequency electromagnetic field), LF (low-frequency electric alternating field)
Processing of the shielding netting against electrosmog
In case of processing as an intermediate wallpaper, for glueing we recommend a commercially available dispersion glue. The wall and the backside of the material are coated with a paint roller. Insert the material wet on wet, fix it manually (with disposable gloves) and use a gummed roller to get a crease-free surface. Work quickly and strip by strip only, so that the dispersion glue does not dry.
You can only apply the netting crease-free on smooth surfaces! Structured surfaces (wood-chip wallpaper, structural plaster, roller structure of paints) must be smoothed. If this is not possible, we recommend using our shielding paints as an alternative. The material can also be laid loosely, e.g. under floor coverings, or tacked up, e.g. in dry construction. Always work overlapping so that the strips for earthing are also electrically connected.
This product has multiple variants. The options may be chosen on the product page
Order quantity, revocation of the order and small quantity surcharge
If the netting has been cut in pieces of 1.0 running meter as requested by the customer, it is not possible to cancel or revoke the order.For this reason, it is possible to request a free sample of the shielding netting. By ordering pre-finished products, waiving the statutory right to return goods is accepted.
Small quantity surcharges for small quantities up to 3 running meters have been removed for reasons of transparency and fairness. The individual linear meter therefore always has the same price or price advantage for larger quantities. To refinance expenses and packaging, we charge a flat rate of € 6,90 per cut.
Test Report & Expert Opinion on Shielding Attenuation up to 40 GHz
Many years ago, YSHIELD invested in its own professional EMC laboratory. Here, not only are test reports generated, but each batch is also tested daily. In addition, YSHIELD has all products reviewed by an independent, renowned expert. Double-checked for double security.
