RDF72 shielding window film | RF screening attenuation against electrosmog up to 33 dB | 72 % light transmission | Effective against 5G!

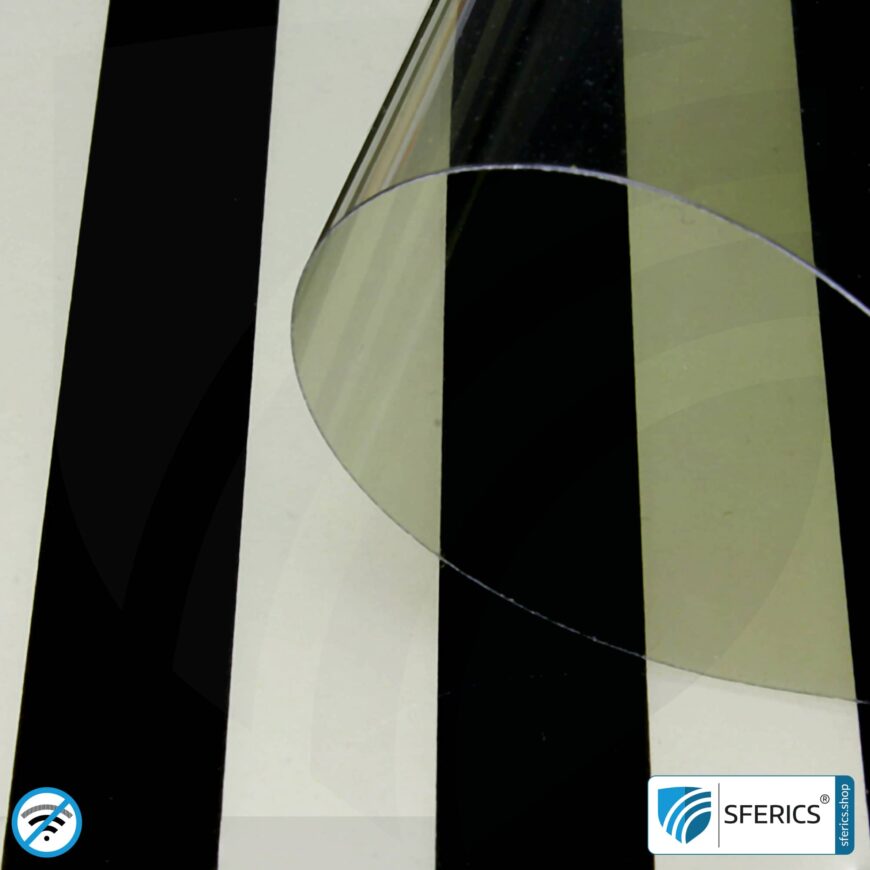

The RDF72 shielding window film contains 12 metal layers and thus provides a shielding effectiveness of up to 33 dB, even up to 40 GHz. Effective against 5G and yet we recommend and prefer shielding fabrics as curtains.

This self-adhesive RDF72 special film contains 12 precious metal coats and is suited for protecting from high-frequency electromagnetic radiation caused by mobile radiation from transmitters, mobile phones, smartphones, WIFI, etc. It is typically stuck on the inside of windows without glazing.

Despite the screening attenuation of up to 33 dB, we only recommend using it sparingly because when using the shieldingShielding is the protection from the effects of external fault zones and environmental influences (on a person's health most of the time). More window film, the window frame remains unprotected because the attenuation is weak. Generally, shielding curtains should always be preferred. However, there are uses that make shielding window films useful, such as on windows and doors inside buildings.

The RDF72 shielding film’s light transmission is 72 %. RDF72 is a shielding film with 12 metal layers for the highest standards of quality. The screening attenuation achieved is unparalleled for a film with such high light transmission!

Technical data for the shielding window film RDF72

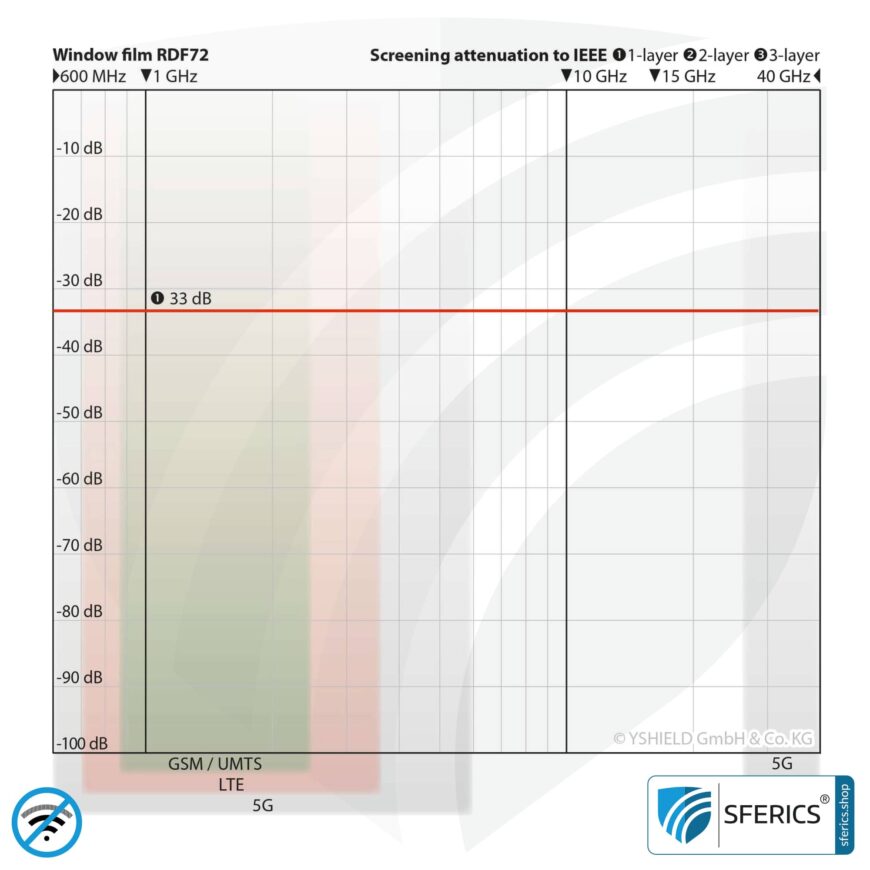

• Screening attenuation: up to 33 dB. Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
• Width: 76 cm / 152 cm
• Length: by the meter / 30 m roll

• Light transmission (transparency): 72 %
• Edge sealing necessary: yes, with FL4 edge sealant

• Color of light (daylight coloration): light green (a hint of green)
• Indoor use, mainly on glass but also on doors and other flat surfaces.
• Mounting: Water-activated and pressure-sensitive adhesive on the back.
• Material thickness: 75 µm
• GroundingGrounding is an electrically conductive connection with the electric potential of the ground. More: With an electrically isolated surface and cannot be contacted or grounded.
• Application: Windows
• Field type: HF (high-frequency electromagnetic fields)
• Ecology: Normal

Only use indoors on glass surfaces WITHOUT GLAZING!

Thermal glazing is already metalized. If solar radiation permeates the metallization and then hits the shielding window film, multi-reflection may occur. The window frame heats up needlessly and can thus cause leaks or even cracks by expansion of the frame! Always find out the glass type!

Processing of the HF electrosmog shielding window film

The bubble-free application of the shielding film is not simple and it is recommended to do with another person. First, remove all unevenness and dirt on the glass with a cleansing extract and glass plane. Then, thoroughly clean the glass with window cleaner.

Remove the protective film from the shielding film. Distill FMK30 mounting concentrate with 0.5 liter of water! Dilute the water and spray the window surface as well as the adhesive side of the shielding film. Put the window film on the window pane and work from the middle to the outside and remove the air bubbles with the scraper FVR10. After a few weeks, the edges of the window film must be sealed with FL4 edge sealant.

Detailed instructions come with the film.

Shielding accessories

€ 19,90

Add to basket

TEST

Shielding accessories

€ 0,50

Select options

Quantity and cancelling the order

If cut in measures of 1.0 running meter according to the customer’s specifications, it is not possible to return or cancel the order. For this reason, it is possible to request a free sample of the shielding film.

By ordering pre-finished products, waiving the statutory right to return goods is accepted.

Documentation of the RDF72 shielding window film (.pdf)
