RDF62 shielding window film | SET | RF screening attenuation against electrosmog up to 18 dB | 152 cm width | 62 % light transmission

Name: ▷ RDF62 shielding window film | 152 cm | up to 18 dB shielding
Brand: YSHIELD®
SKU: RDF62-152-SET
Availability: InStock

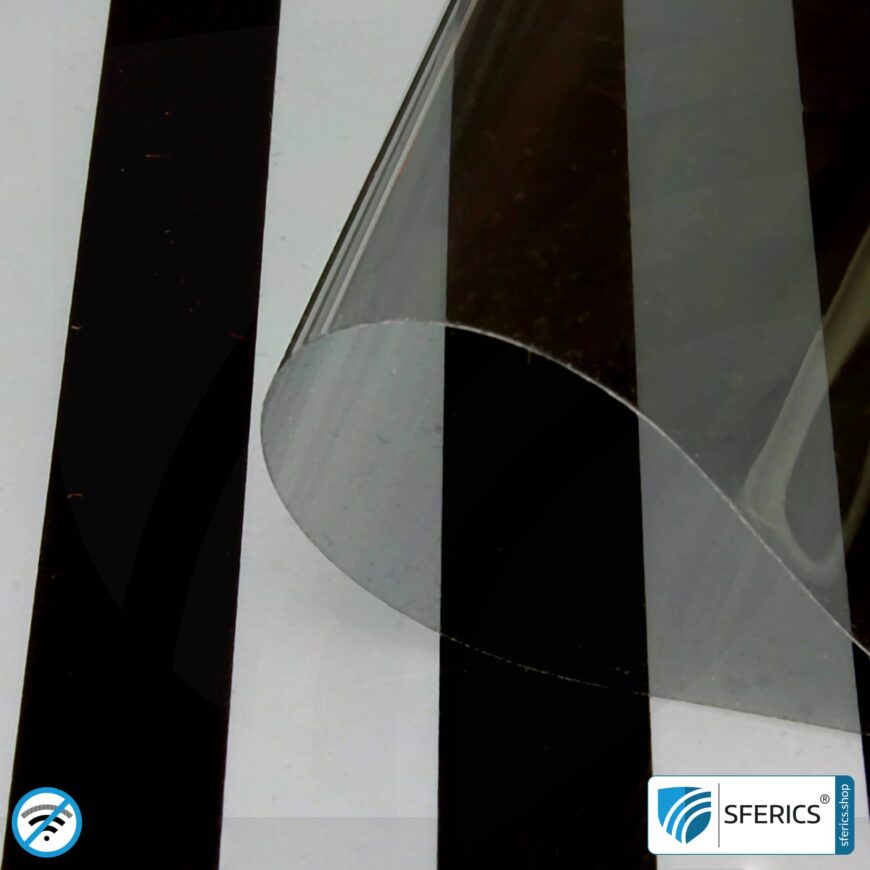

RDF62 shielding window film for sticking on window panes. Up to 18 dB shielding effectiveness against radio radiation. 62 % light transmittance. For indoor application on non heat absorbing glass surfaces. Not groundable LF.

Price per meter (100 x 152 cm)
Quantity = number of linear meters

Delivery time: 3-5 business days | bulky goods+ | unit price € 45,99/sqm
No right of withdrawal for cut goods | request a free test sample

SKU: RDF62-152-SET Category: Shielding window film Tags: 152 cm, Electrosmog, RDF62, Shielding, Window film

CHOOSE ACCESSORIES

RDF62 shielding film | 152 cm width

Width

152 cm (bulky goods +)

FMK30 mounting concentrate | for wet, bubble-free application of our shielding window films

Necessary: Mounting concentrate, 30 ml

Required for bubble-free wet application of window film. 30 ml of concentrate is sufficient for 3 linear meters of window film.

Add for € 4,90 (€ 4,12 excl. VAT) each

Plastic scraper FVR10 | for air bubble-free wet bonding of shielding window films

Necessary: Scaper

Required for bubble-free wet application of window film

Add for € 7,90 (€ 6,64 excl. VAT)

The RDF62 shielding window film provides a shielding attenuation of up to 18 dB and can therefore only be used sensibly at low loads. 152 cm width. Building biology recommendation: Preference for shielding curtains – ALWAYS!

This self-adhesive RDF62 special film is coated in precious metal and suited for protecting from high-frequency electromagnetic radiation caused by mobile radiation from transmitters, mobile phones, smartphones, WLAN, etc. It is typically stuck on the inside of windows without glazing.

We only recommend using it for low exposure because of its low screening attenuation of up to 18 dB. When using the shielding window film, the window frame remains unprotected because the attenuation is weak. Generally, shielding curtains should always be preferred. However, there are uses that make shielding window films useful, such as on windows and doors inside buildings.

This RDF62 shielding film’s light transmission is 62 %. RDF62 has an appropriate ratio of quality, light transmission, light discoloration and good screening attenuation.

Technical data for the shielding window film RDF62

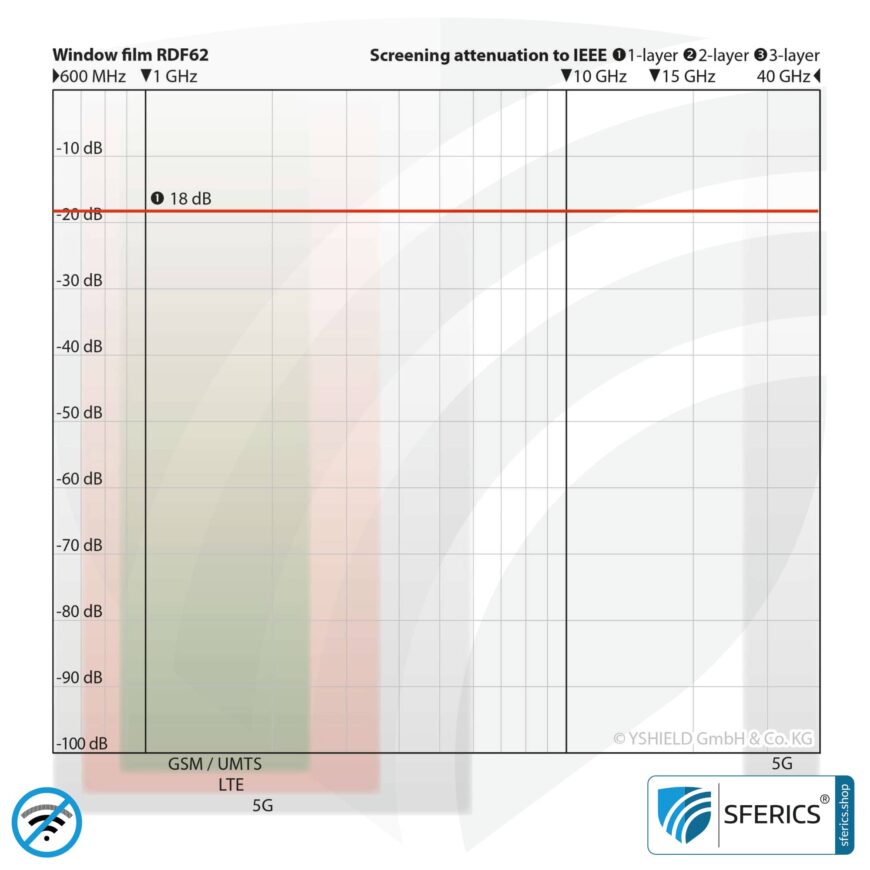

Screening attenuation: up to 18 dB. Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.
Width: 152 cm
Length: by the meter / 30 m roll
Light transmission (transparency): 62 %
Edge sealing necessary: no
Color of light (daylight coloration): gray
Indoor use, mainly on glass but also on doors and other flat surfaces.
Mounting: Water-activated and pressure-sensitive adhesive on the back.
Material thickness: 37.5 µm.
Grounding: With an electrically isolated surface and cannot be contacted or grounded.
Application: Window
Field type: HF (high-frequency electromagnetic fields)
Ecology: Normal

RDF62 shielding window film | RF screening attenuation against electrosmog up to 18 dB | 62 % light transmission

Only use indoors on glass surfaces WITHOUT GLAZING!

Thermal glazing is already metalized. If solar radiation permeates the metallization and then hits the shielding window film, multi-reflection may occur. The window frame heats up needlessly and can thus cause leaks or even cracks by expansion of the frame! Always find out the glass type!

Processing of the HF electrosmog shielding window film RDF62

It is mandatory to use the FVR10 Scraper and the FMK30 Mounting Concentrate for the installation.
Applying the shielding film without air bubbles is not necessarily easy and it is advisable to do this with two people. First, use a cleaning concentrate and a glass scraper to remove all unevenness and dirt from the glass. Then thoroughly clean the glass with window cleaner.

Remove the protective film from the shielding film. Dilute the mounting concentrate FMK30 with 0,5 liters of distilled water and spray both the window surface and the adhesive side of the shielding film. Apply the window film onto the window glass and use the FVR10 scraper to work from the center outwards, pressing out the air bubbles.

Detailed installation instructions are included with the film.

Shielding accessories

€ 4,90 (€ 4,12 excl. VAT)

Add to basket

TEST

Samples of shielding material | up to 3 material samples for free

Shielding stainless steel gauze V4A10 | RF screening attenuation against electrosmog up to 40 dB | For laying. 90 cm width. 5G ready!

Shielding accessories

€ 0,50

Select options

Quantity and cancelling the order

If cut in measures of 1,0 running meter according to the customer’s specifications, it is not possible to return or cancel the order. For this reason, it is possible to request a free sample of the shielding film.

By ordering pre-finished products, waiving the statutory right to return goods is accepted.
