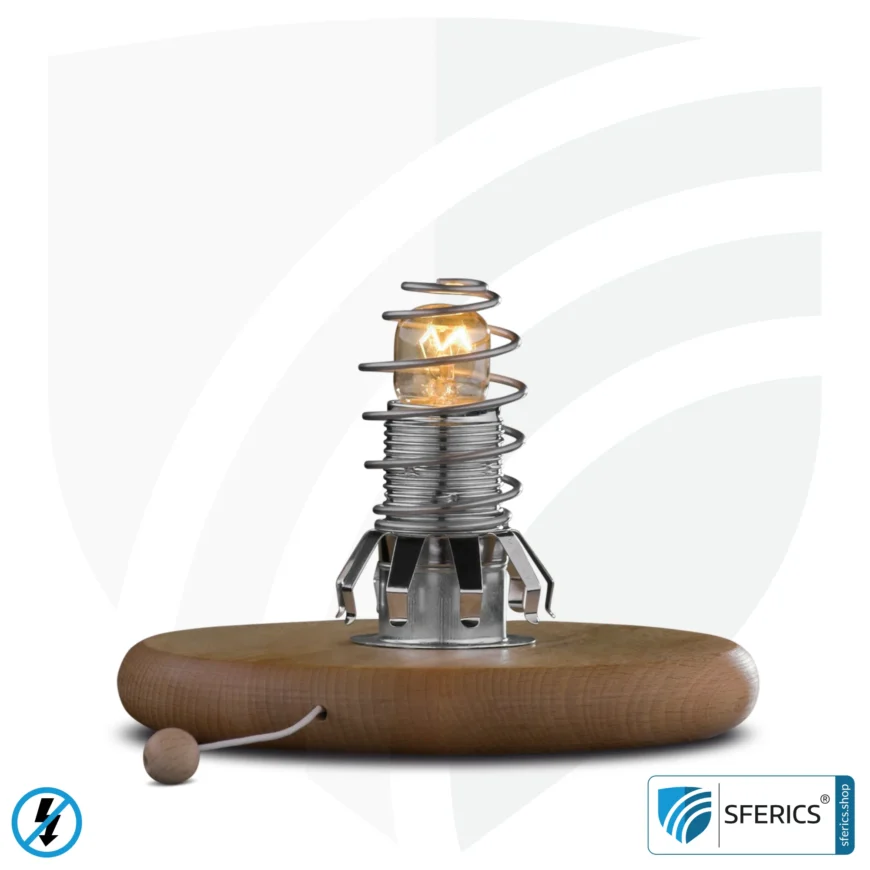

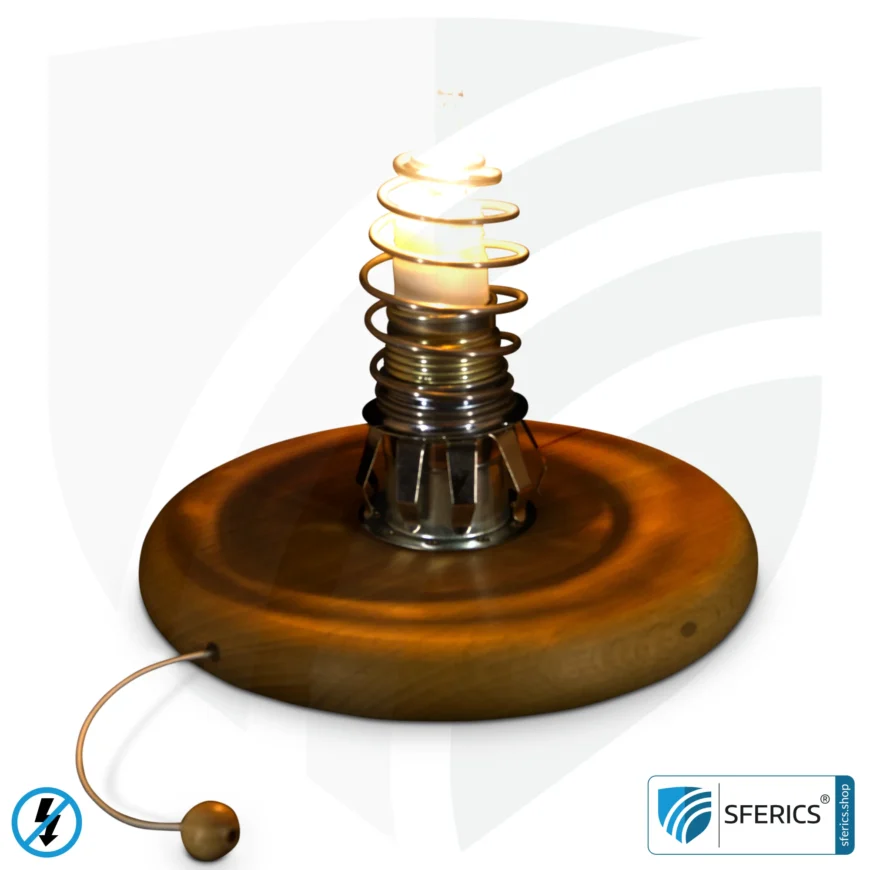

Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket

The shielded lamp base is ideally suited for retrofitting existing lights such as. Salt crystal lamps or sized alternative lampshades. Ideally suited for the living area.

Each lamp base is unique! The reason for this lies in the beech wood – each turned lamp base differs in color and grain. For bulbs with E14 base.

Delivery time: approx. 3-5 working days

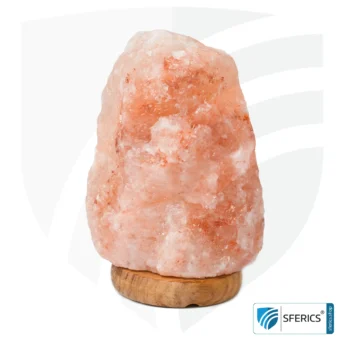

Option: Salt crystal for the base

Our focus is on the shielded retrofit of an existing salt crystal lamp. With this option, we also supply a high-quality salt crystal. The salt crystal alone is not available.

Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket
Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket

From:  79,00

In stock (can be backordered)

SFERICS® field-tested and recommended

From:  79,00

Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket

Shielded lamp base. Ideal for retrofitting salt crystal lights or as a base for suitable lampshades. For bulbs with E14 base.

This shielded lamp base is intended for retrofitting existing salt crystal lamps and for further processing and can be combined with a compatible lamp shade that is larger in size. Especially for alternative lampshades the waste heat of the used light source has to be considered, therefore we recommend to use LED light sources with E14 lampholder without exception.

  • Table lamp for the reduction of low-frequency electric and magnetic alternating fields
  • Ideal for retrofitting salt crystal lamps
  • Protection class 1 (with protective conductor) acc. to DIN/VDE

Disclaimer: For combinations with alternative lampshades we can neither guarantee nor assume liability. It is essential that you have the finished lamp checked by an electrician before putting it into operation.

Salt crystal lamps and suitable bulbs

For the salt crystal lamp we recommend a lamp with E14 socket with a maximum of 15 watts. It is also possible to use a halogen lamp with a G9 socket. In this case the adapter G9 to E14 is necessary. A further detail is the high electric alternating field of commercially available salt crystal lamps.

An unshielded salt crystal lamp (protection class 2) with a 2-pole mains connection cable and connected Euro plug (EN 50075) results in an alternating electric field of approx. 100 – 160 V/m. This field creates a range of up to 2 metres. In terms of building biology, such emissions should be avoided with a salt crystal lamp in particular. Our shielded lamp base (protection class 1) with 3-pole shielded mains connection cable, a metallic housing and the protective basket for the lamp results in an alternating electrical field of approx. 0.4-0.6 V/m (measured under laboratory conditions).

In practice, small environmental deviations must be taken into account. In the area of the socket outlet (earthed plug), the strength of the alternating electric field is influenced by the electrical installation. The shielding is checked in accordance with the specifications, frequency bands and measuring distances of the recognised screen standards (for low-radiation screens / monitors): TCO’99, Band I (MPR II) and DIN EN 50279 (measuring distance 30 cm).

Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket

Suitable bulbs for the shielded lamp base

  • General bulbs with E14 socket
  • All bulbs with G9 socket (due to the included adapter)
  • Maximum 15 watts

This shielded lamp base can be used in the following countries:

CEE-7/4 (German System) and CEE-7/7 (French System): Afghanistan, Algeria, Andorra, Belgium, Bosnia-Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Indonesia, Italy, Korea, Latvia, Lithuania, Luxembourg, Morocco, Macedonia, Monaco, Montenegro, Moldova, Netherlands, Norway, Poland, Portugal, Romania, Russia, Serbia, Slovakia, Slovenia, South Korea, Spain, Sweden, Tunisia, Turkey, Ukraine, Yugoslavia, Iceland.

Weight 0,2 kg
Dimensions 15 × 15 × 15 cm
Scope of delivery

stainless steel spring spiral, luminaire, 2x illuminant, description

Brand

GTIN

4260004786249

Country of origin

Germany

Option: Salt crystal for the base

TARIC

94052091

TECHNICAL DETAILS SHIELDED LAMP BASES FOR RETROFITTING
Colour beech
Cable colour white
Composition beech wood oiled, felt base
Operating voltage 230 VAC / 50Hz
Testing basis TCO’99 (MPR II, DIN prEN 50279) EN 60 320 / 2.2, CE, F (individually 100%)
Limit values undershot by factor 20 and more in all measurement procedures]
Shielding attenuation max. in dB > 99% (earth-dependent)
Processing quality High quality and natural looking table and night table lamp. The luminaire is particularly suitable for short reading or bedside lighting in all bedrooms and rest rooms.
Diameter foot 150mm

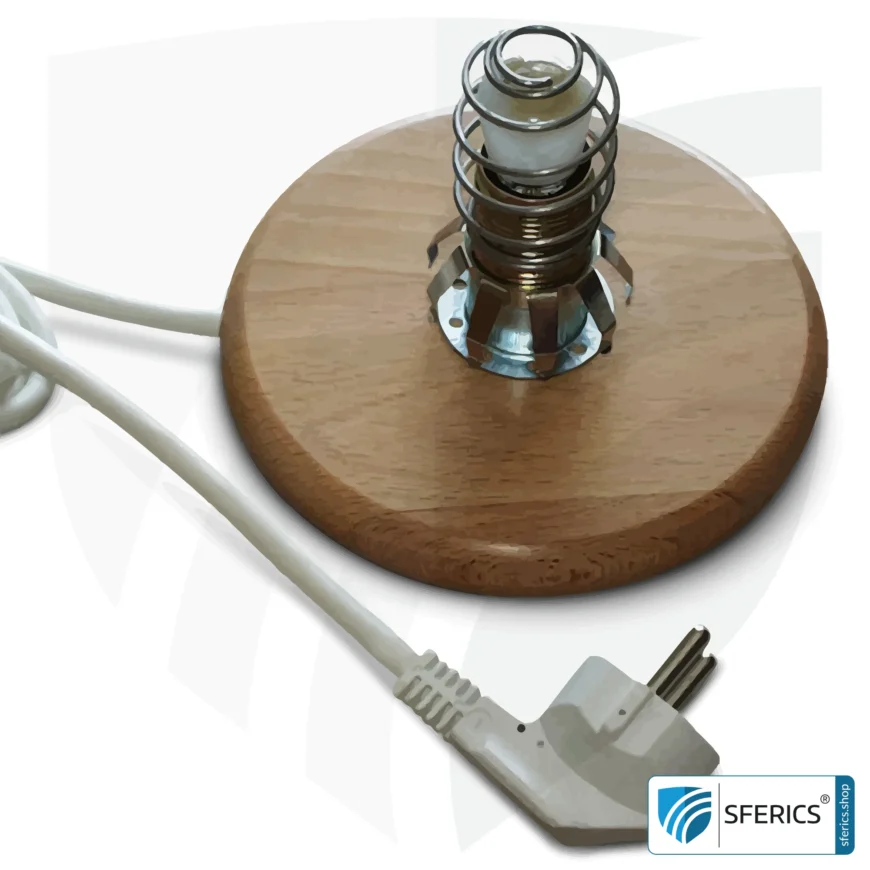

Cable three-pole shielded connection cable – flexible
Cable length approx. 180cm
Bulbs 1 x E14 – max. 15 watt
Switch Pull switch with wooden pull element (ball), shielded
Shielding Patented stainless steel shield spiral (shield basket), shielded mains cable (aluminium shield, two wires)
Alternating magnetic field shielding Reduction of the alternating magnetic field by twisting the individual wires
Number of strokes 15 (15 times per meter twisted against each other)
Protection class 1 (with protective conductor yellow/green)
Right-angle plug Moulded, CEE standard 7/VII, DIN 49441
Scope of application Sleeping area (bedside table), children’s room, living area
Important information Shielded luminaires can be used directly without electrical training and without an electrician. ATTENTION: When changing the lamp, make sure that it is still hot and could cause burns. Furthermore, when inserting the bulb into the base, avoid direct contact with the skin in order to avoid greasy spots and thus extend the service life of the bulb.
Weight approx. 200g
Warranty The guarantee is with proper treatment with the usual 2 years (§434 BGB + §446 BGB)

Customer questions and answers

There are no questions yet

Ask a question

Your question will be answered by a store representative or other customers.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the question!

Your question has been received and will be answered soon. Please do not submit the same question again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Add an answer

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Thank you for the answer!

Your answer has been received and will be published soon. Please do not submit the same answer again.

Error

Warning

An error occurred when saving your question. Please report it to the website administrator. Additional information:

Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket
Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket

Pay attention to healthy light when buying lamps!

Healthy light from a building biology point of view, is a light source modelled on the sun

  • without flickering, as close as possible to 0 Hz (Hertz)
  • a light spectrum/colour spectrum that is as close to nature as possible, without the predominantly much too high proportion of blue light in an LED, for example. This serves to protect the macula (prophylaxis against premature macular degeneration).
  • Day-adapted colour temperature, i.e. full spectrum during the day and warm light in the evening.

Further information on the effect of light colour on people (german): CLICK HERE

Shielded lamp base | for salt crystal lights and suitable lampshades | E14 socket
