Antenna ANT-NA16 | Eltako FA250 | external antenna for fuse box repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standard

The ANT-NA16 antenna is a necessary extension for the RP-NA16-KA control cabinet repeater and is screwed directly onto the antenna connection at the repeater in the fuse box.

The antenna itself has a magnetic base, which makes it very easy to mount outside the control cabinet.

master switch series

Function based on a radio signal encoded according to the EnOcean standard that is harmless to building biology and is only transmitted when the transmitter in the remote control is actuated.

Delivery time: approx. 1-3 business days

In stock

SFERICS® quality verified

€ 34,95 (€ 29,37 excl. VAT)

SKU: 721090-WD Category: Tags: , , , , ,

MASTER SWITCH SERIES

MASTER SWITCH SERIES

Antenna ANT-NA16 | external antenna for fuse box repeater RP-NA16-KA | master switch set-up | building biology safe wireless technology according to EnOcean standard

The ANT-NA16 antenna is required for the RP-NA16-KA fuse box repeater to increase the range of the NA 16-1P radio demand switch. Or to improve an interfered reception.

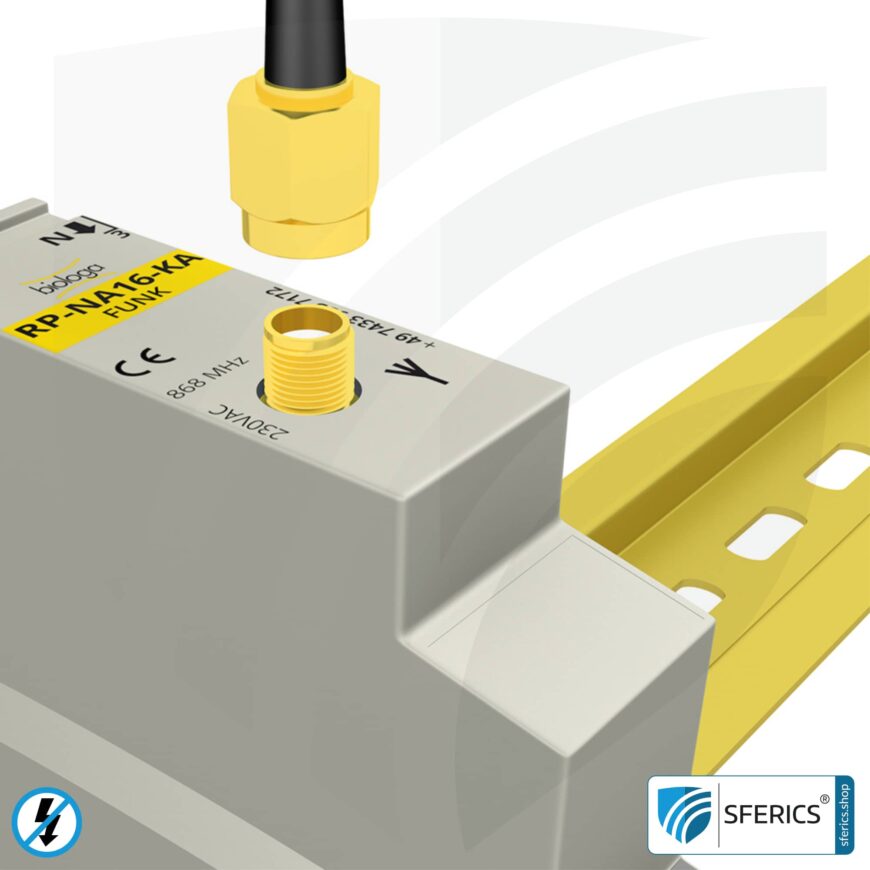

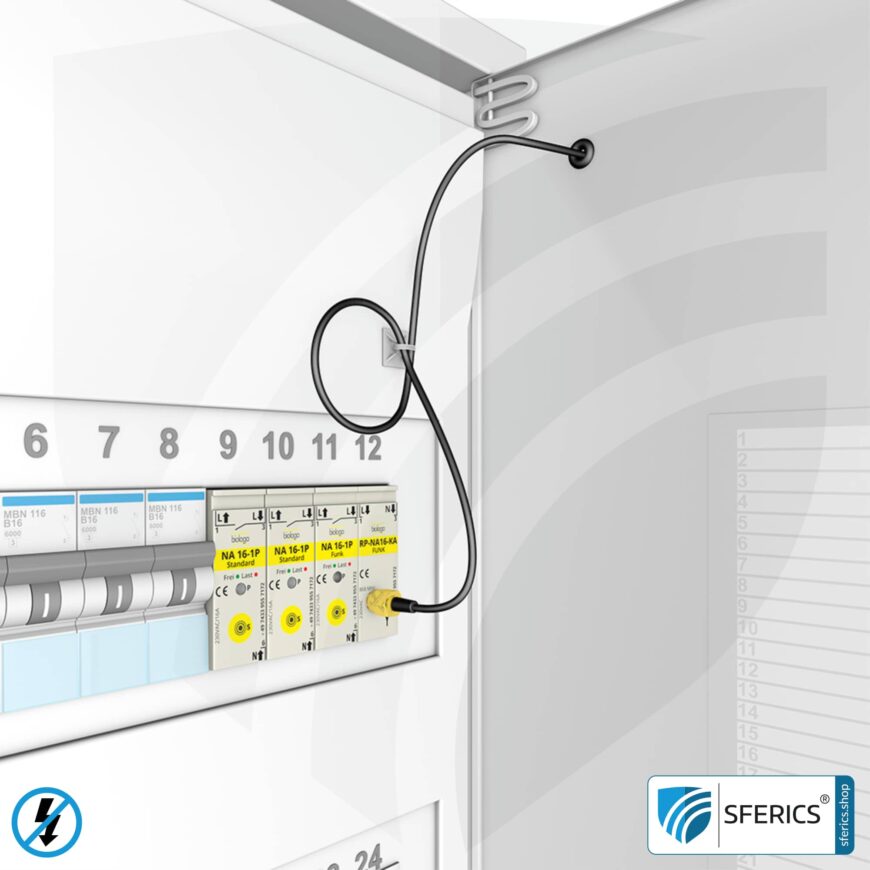

After installing the RP-NA16-KA fuse box repeater in the fuse box, the antenna cable is screwed onto the antenna socket provided. The antenna cable of 250 cm is long enough to mount the antenna outside the control cabinet.

This ensures a clean function even in shielded electrical installations. For mounting, we recommend drilling a sufficiently large hole in the closing door to pull the antenna cable through.

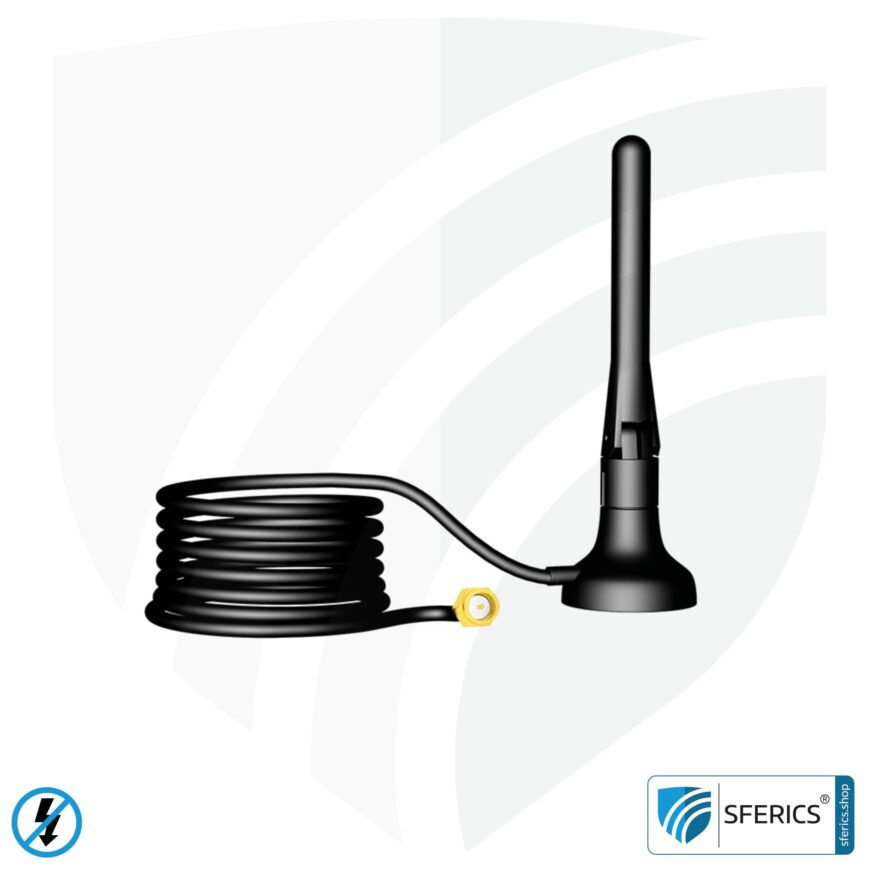

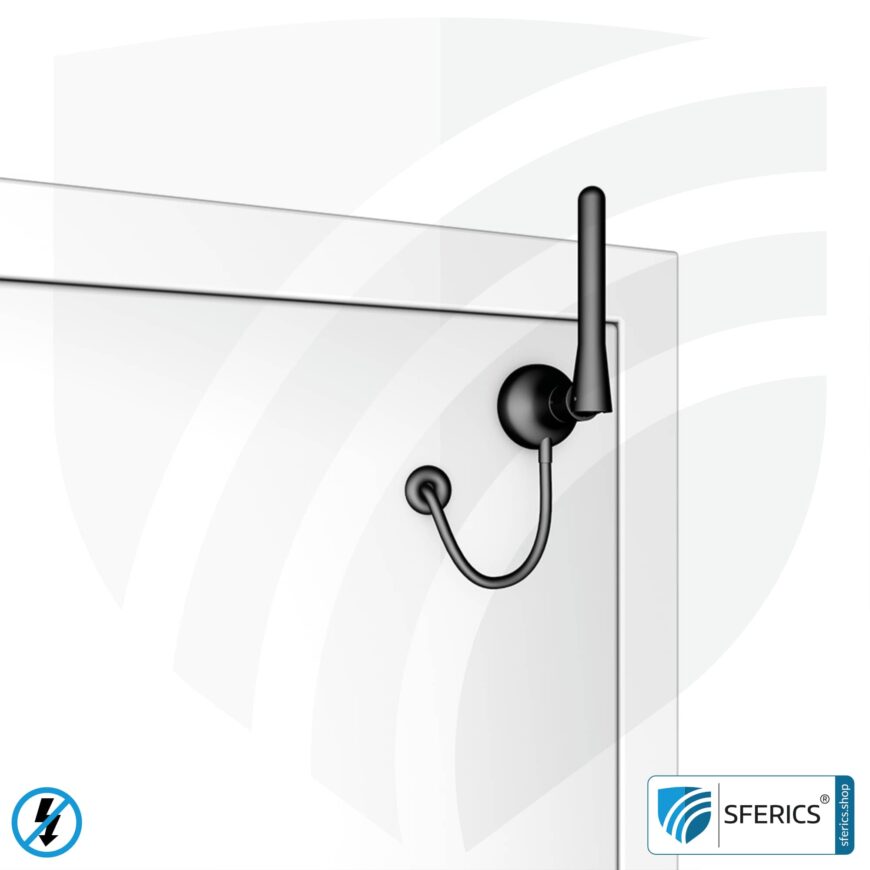

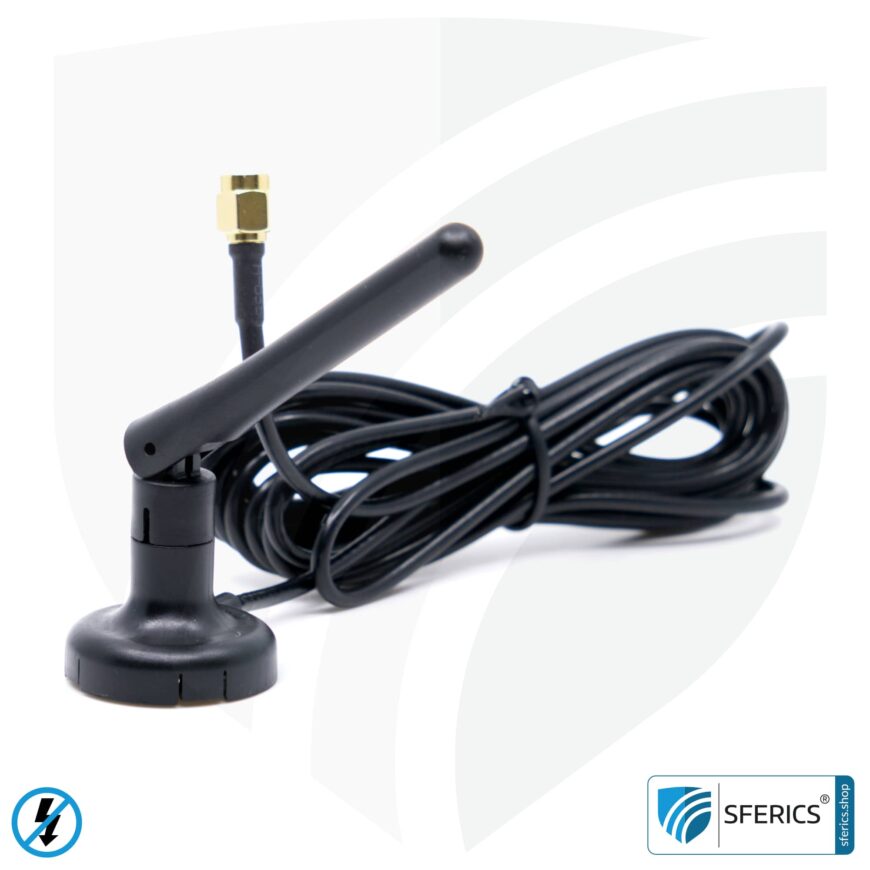

The ANT-NA16 antenna is mounted outside the box with the aid of an integrated magnetic base, which is either attached to the control cabinet door or to a screwed-on metal body disc (metal plate or similar).

Convincing performance of the ANT-NA16 antenna at a glance

  • Antenna for the RP-NA16-KA repeater
  • External antenna as required accessory of the repeater of the RP-NA16-KA series (switch cabinet, fuse box)
  • For extending the range with protection class 1 distributors and shielded electrical installation or disturbed reception
  • With magnetic base for easy mounting
  • 1 year warranty

MASTER SWITCH SERIES

Overview of the range and parts of our master switch series

Demand switch NA 16-1P radio with dual operating mode | master switch set-up | building biological radio technology according to EnOcean standard | LED control lamp includedDemand switch NA 16-1P radio with dual operating mode | master switch set-up | building biological radio technology according to EnOcean standard | LED control lamp included
Quick View

Master switch

Master / Demand switch NA 16-1P RADIO with dual operating mode | master switch set-up | building biological radio technology according to EnOcean standard | LED control lamp included

€ 355,81 (€ 299,00 excl. VAT)
Add to basket
Repeater RP-NA16-KA | level 2 repeater for the fuse box | master switch set-up | building biology save wireless technology according to EnOcean standardRepeater RP-NA16-KA | level 2 repeater for the fuse box | master switch set-up | building biology save wireless technology according to EnOcean standard
Quick View

Master switch

Fuse box repeater RP-NA16-KA | repeater for the fuse box | level 2 | master switch setup | building biological radio technology according to the EnOcean standard

€ 117,80 (€ 98,99 excl. VAT)
Add to basket
Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standardHand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard
Quick View

Master switch

Hand-held transmitter TX-NA16-HAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

€ 52,40 (€ 44,03 excl. VAT)
Add to basket
Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standardWall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard
Quick View

Master switch

Wall transmitter TX-NA16-WAND | 2-channel remote control | master switch set-up | building biology save radio technology according to EnOcean standard

€ 46,40 (€ 38,99 excl. VAT)
Add to basket
Surface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standardSurface-mounted repeater RP-NA16-AP | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard
Quick View

Master switch

Surface-mounted repeater RP-NA16-AP | Eltako FRP65/230V-wg | level 2 repeater for mounting on installation box | master switch set-up | building biology save wireless technology according to EnOcean standard

€ 93,95 (€ 78,95 excl. VAT)
Add to basket
Flush-mounted repeater RP-NA16-UP | level 1+2 repeater for mounting in installation box | master switch set-up | building biology safe wireless technology according to EnOcean standardFlush-mounted repeater RP-NA16-UP | level 1+2 repeater for mounting in installation box | master switch set-up | building biology safe wireless technology according to EnOcean standard
Quick View

Master switch

Flush-mounted repeater RP-NA16-UP | Eltako FRP61-230V | level 1+2 repeater for mounting in installation box | master switch set-up | building biology safe wireless technology according to EnOcean standard

€ 75,95 (€ 63,82 excl. VAT)
Add to basket
Auxiliary relay ESC 425S | Mains isolation of 3~ phase consumers, several circuits, ... | Expansion of the field disconnect switch NA 16-1P Funk | Master switch set upAuxiliary relay ESC 425S | Mains isolation of 3~ phase consumers, several circuits, ... | Expansion of the field disconnect switch NA 16-1P Funk | Master switch set up
Quick View

Master switch

Auxiliary relay ESC 425S | Mains disconnection of 3~ phase consumers, several circuits, … | Expansion of the field disconnect switch NA 16-1P Funk | Master switch set up

€ 44,49 (€ 37,39 excl. VAT)
Add to basket
RC Network XEB1201 | RC element for the auxiliary relay ESC 425S | To prevent interference | Master switch set upRC Network XEB1201 | RC element for the auxiliary relay ESC 425S | To prevent interference | Master switch set up
Quick View

Master switch

RC Network XEB1201 | RC element for the auxiliary relay ESC 425S | To prevent interference | Master switch set up

€ 24,00 (€ 20,17 excl. VAT)
Add to basket

Documentation (.pdf)

Technical data Range overview
Weight 0,1 kg
Dimensions 9 × 4,5 × 8,5 cm
Scope of delivery

antenna
Color

black
Brand

Country of origin

Germany

.

TECHNICAL DETAILS ANTENNA ANT-NA16
Colour black
Weight 60 gram
Height 100 mm
Height angled
 78 mm
Cable length 250 cm
Range >30 metres

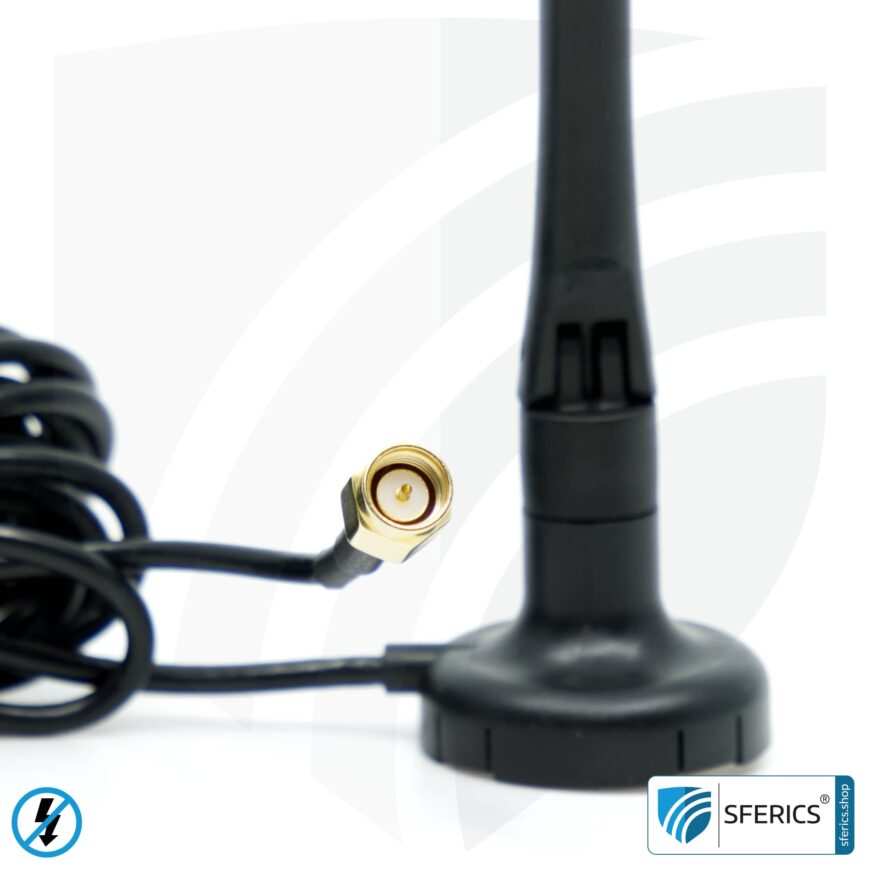

Antenna connection SMA 1.2-1.6
Radio technology / control frequency EnOcean 868 MHz
Mounting Using magnetic base on outer door
Application Necessary accessories for the repeater of the series:
1. RP-NA16-KA
Scope of delivery 1. repeater RP-NA16-AP
2. assembly instructions
Warranty The warranty for this product when handled properly is the usual 2 years (§434 BGB + §446 BGB)
