(H)05VV-F3G shielded and very flexible electrical cable | flexible cable to limit alternating electrical fields LF | for non-location-based, mobile consumers

Shielded electrical cable in a flexible and very bendable version. This shielded electrical cable is suitable for mobile use with non-local consumers. The usual form of this shielded electrical cable is as a cable extension or as a power cable for electrical devices.

Quantity = Number of running meters

Delivery time: approx. 2-4 working days

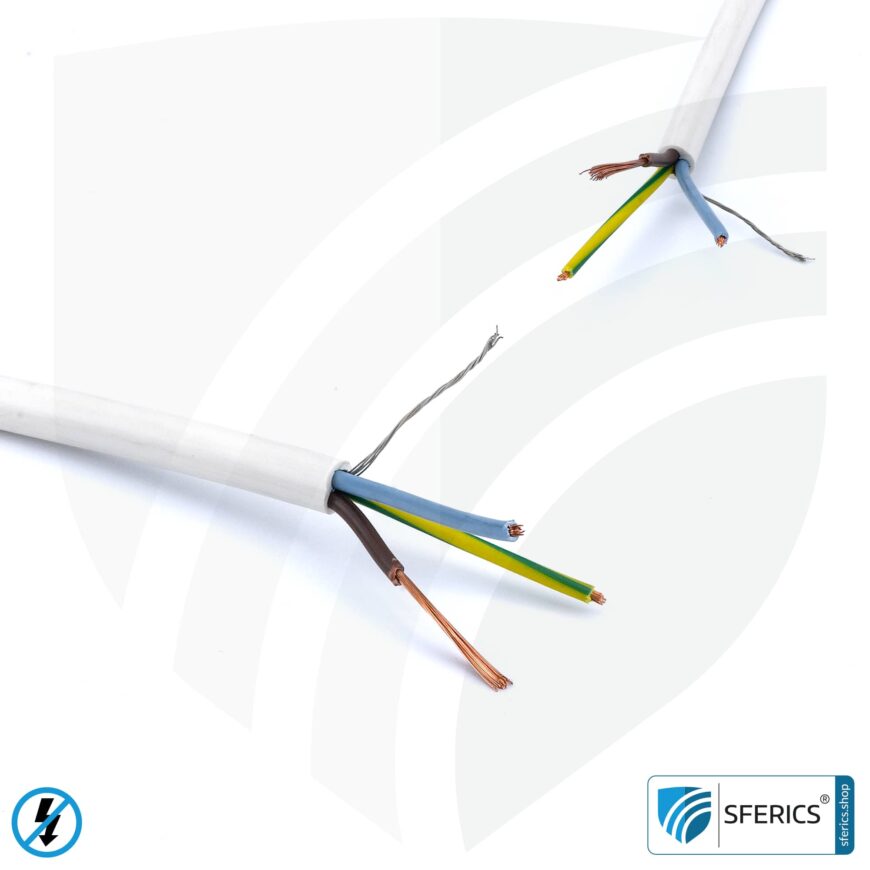

(H)05VV-F3G shielded and very flexible electrical cable | 3x 0.75 mm² | flexible cable to limit alternating electrical fields LF | for non-location-based, mobile consumers
(H)05VV-F3G shielded and very flexible electrical cable | flexible cable to limit alternating electrical fields LF | for non-location-based, mobile consumers

SFERICS® field-tested and recommended

ab:  4,64

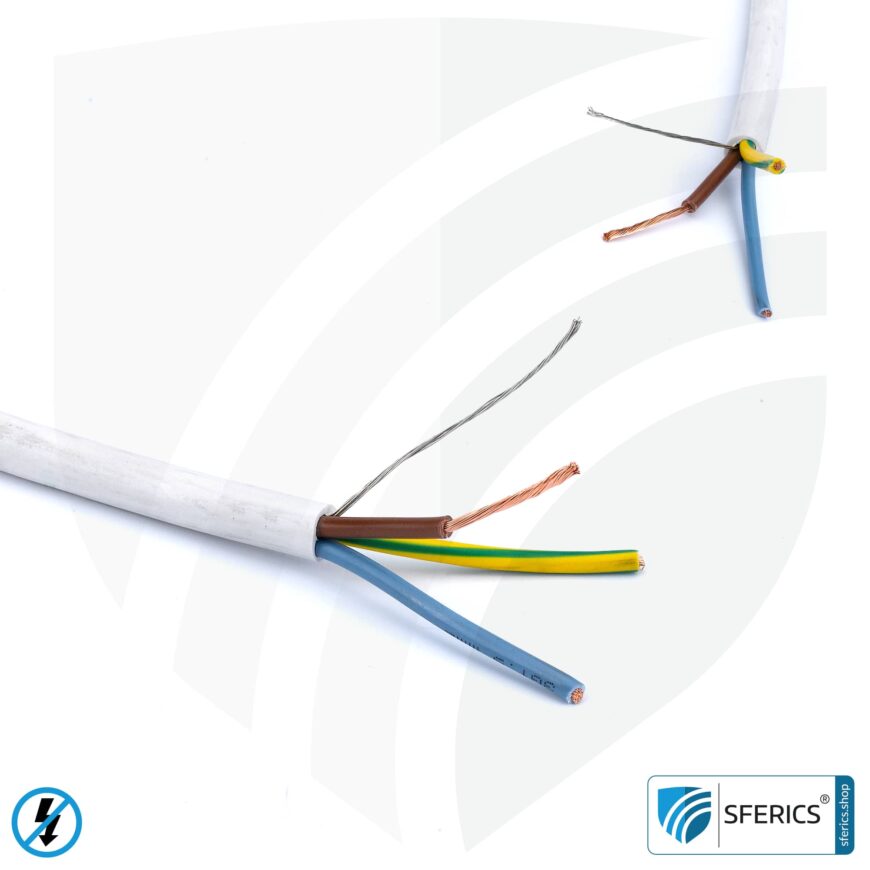

(H)05VV-F3G shielded and very flexible electrical cable | 3x 1.50 mm² | flexible cable to limit alternating electrical fields LF | for non-location-based, mobile consumers

(H)05VV-F3G shielded electrical cable for limiting alternating electrical fields through the conductor. This electric cable is flexible, very bendable and intended as a mobile shield against electrosmog LF.

Shielded installation cables, or so-called shielded sheathed cables, are needed to stop electric fields in cabling in buildings. However, if a commercial extension cable, power strip or appliance is connected to an electrosmog-free socket, new electrosmog will be generated through this “new” cable, starting from the plug and ending at the device (TV, iron, computer, or bedside lamp). This is where this shielded (H)05VV-F3G electric cable comes into use. The protection from LF electric fields is pursued from the protected wall to the device or consumer.

This shielded (H)05VV-F3G electric cable is very flexible, as is its usage for mobile consumers. LF electric alternating fields are effectively shielded from by it. Furthermore, the wires in the (H)05VV-F3G electric cable are twisted 15 times per meter to significantly diminish the existing magnetic field.

Construction of the (H)05VV-F3G shielded electric cable

Construction of the (H)05VV-F3G shielded BIO cable

1) Single-wire copper conductor
2) Insulation: polyvinyl chloride
3) Wire: copper min. 0.34 mm²
4) Screen: plastic-coated aluminum tape
5) Outer casing: polyvinyl chloride

Application of the (H)05VV-F3G shielded electric cable

The flexible (H)05VV-F3G BIO electric cable is generally suitable for the exchange of existing consumer cables. However, there are already prepared shielded electric cables with shockproof plugs for exchanging cold-device cables. The same applies to power strips or manufactured cold-device cables. If the prepared cables are too short or unusable for other reasons, however, this shielded (H)05VV-F3G electric cable offers a very good option to build the necessary BIO electric cable yourself or to have it built by an electrician.

Technical information on the (H)05VV-F3G shielded electric cable

  • Power load according to IEC 320-1: 6 A
  • Supply voltage: 250 V / 50 Hz
  • Outside diameter: 6.6 mm
  • Protection category 1 (with protective conductor)

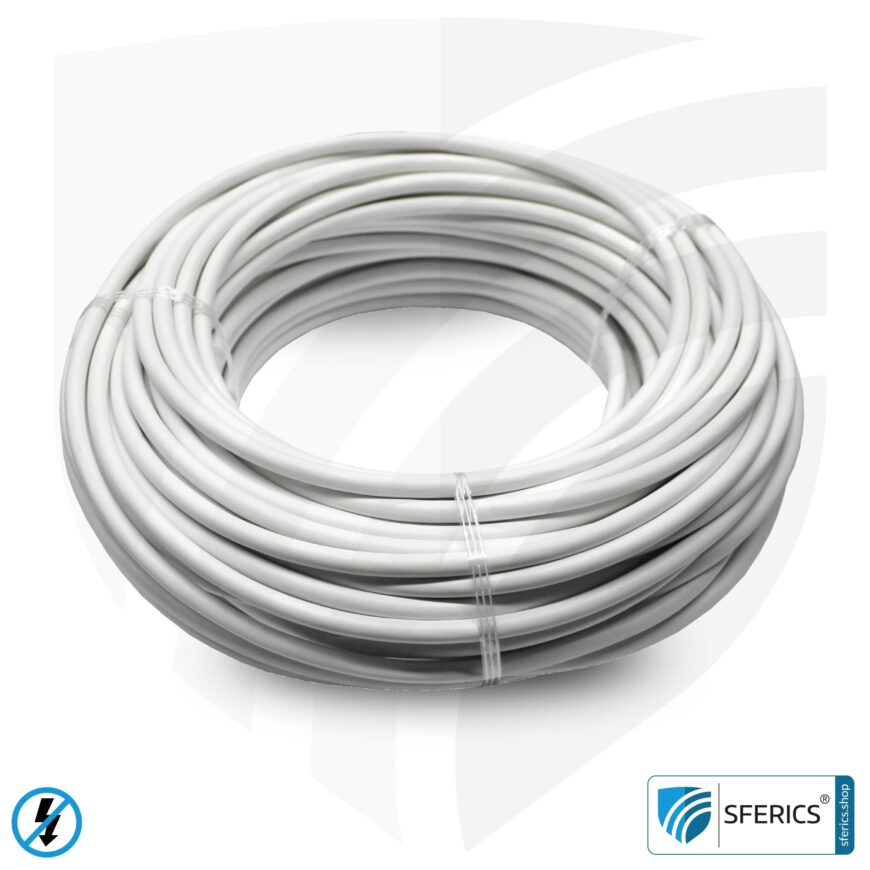

  • Length: by the meter / 50 meter roll
  • Application: Reduction of LF fields
  • Field type: LF (low-frequency electric alternating fields)
  • Color: White

No cancellation for the shielded electric cables

Like for cuts, there is no right to return shielded electric cables.

Please note that cancellations do not apply to these products, because they were cut to the customer’s specifications. Reselling a tailored item is no longer possible.

Documentation (.pdf)

Download data sheet, 3x 0,75 Download data sheet, 3x 1,50 Details on building biology electrical installations

Our electrical cable range at a glance

ab:  148,90
ab:  79,10
ab:  85,80
ab:  59,70
ab:  4,64
Weight N/A
Dimensions N/A
Variants

3x 0.75 mm², 3x 1.5 mm²

Length

Linear meter, 50 meters roll

Field type

LF (low-frequency electric alternating field)

Color

white

Brand

Country of origin

Germany

GTIN

4260004783040, 4260004783088

Board unit Mtr (metre)
Colour white
Length Metre goods o. 50 metre ring
Load Operating voltage max. 250VAC / 50Hz – 6A according to IEC 320-1; DIN VDE 0100
Cross sections / Ø: 3 x 0.75 mm² – Ø 6.6 mm ± 0.2 mm – + shielding strand 0.34 mm²
Cross sections / Ø: 3 x 1.5 mm² – Ø 8.4 mm ± 0.2 mm – + shielding litz 0.34 mm²
Wires: insulated – fine stranded conductor
Shield: Plastic-coated aluminium strip, two-wire / stranded Cu 0.34 mm²
Protection class: 1 – according to DIN VDE 0295
Testing: DIN VDE 0472, part 266-2- 4 test type C or IEC 332.3 TCO’99, volume I (MPR II) and DIN EN 50279 (measuring distance 30 cm, measurement against earth, free cable run over several metres, no connection areas, field-free laboratory conditions)
